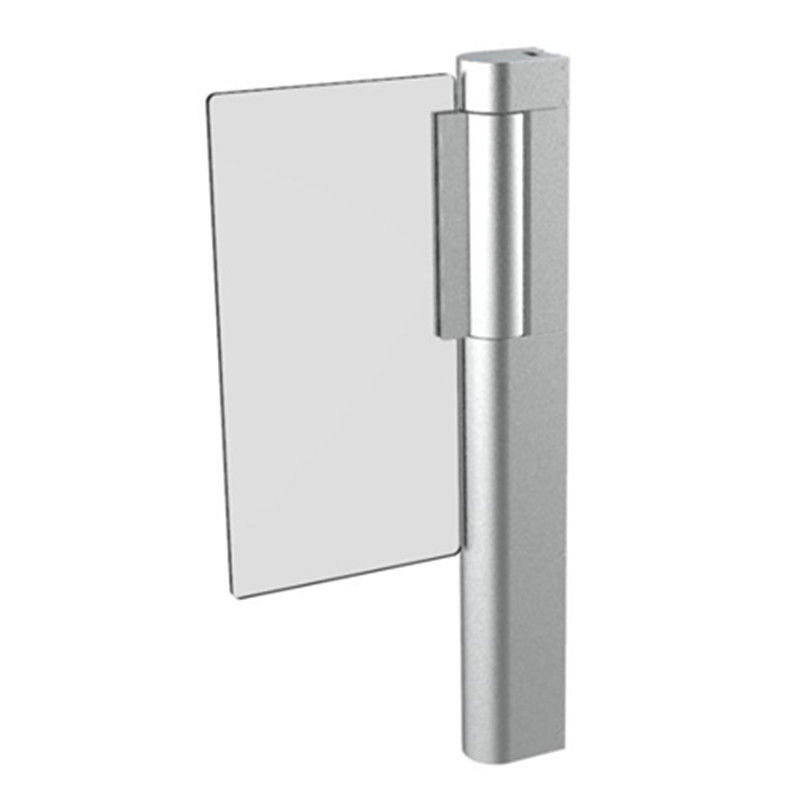

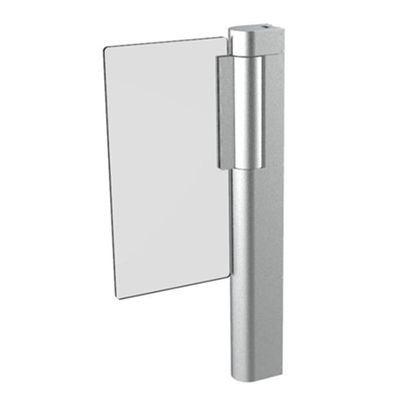

600mm Swing Turnstile Gate Mechanism With 100 N.M Braking Torque

Name: 600mm Swing Turnstile Gate Mechanism With 100 N.M Braking Torque
Brand: Jiayu
SKU: JPS8857A
Rating: 4.5 (189 reviews)

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: JPS8857A

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                100 N.M 600mm Turnstile Gate Mechanism, Swing Turnstile Gate Mechanism, 100 N.M Swing Barrier Gate Mechanism


Suit For Motor:	Suitable 57, 60, 70 Motor Transmission Components	Maximum Gate Load Width:	600mm
Maximum Braking Torque:	100 N.m	Application:	For Speed Gate
Material Of Cylinder:	Aluminium Alloy	Gate Position Reserved:	RGB Lamp Belt Mounting Position And Wiring Hole Position
Machine Core Width:	88mm	Movement Highly:	900mm

Suit For Motor:	Suitable 57, 60, 70 Motor Transmission Components
Maximum Gate Load Width:	600mm
Maximum Braking Torque:	100 N.m
Application:	For Speed Gate
Material Of Cylinder:	Aluminium Alloy
Gate Position Reserved:	RGB Lamp Belt Mounting Position And Wiring Hole Position
Machine Core Width:	88mm
Movement Highly:	900mm

600mm Swing Turnstile Gate Mechanism With 100 N.M Braking Torque

Turnstile Gate Mechanism 600mm 100 N.m for swing barrier gate

Features of Turnstile Gate Mechanism

Designed for Speed Swing Gates,optional for 57/60/70 engine-base servo motor
Integrated electromagnetic brake with a maximum braking torque of 100 N.m
Maximum 600mm width door plate load.
Designed with RGB Light Bar mounting position and wiring holes.
Gate plate and RGB Light Bar not provided as a standard option.

Description of Turnstile Gate Mechanism
Jaguar MC,Provide suitable 57, 60, 70 motor transmission components

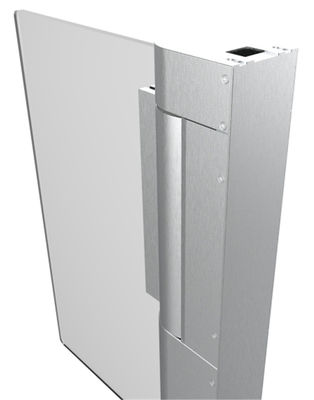

JPS series swing gates movement components(“Jaguar MC”), it is the component of the movement for commercial Speed Swing Gate produced by Jiayu Mechatronic. Equipped with electromagnetic brake and couplings. The main body is made of aluminum alloy fixing parts and stainless steel protective cover. Maximum gate load with 600mm width. Suitable for mainstream models in the market.

Jiayu offers several level of support that remains active to rapidly resolve appliance queries and technical bugs. We are dedicated to provide foremost technical client support, not a single product is passed without ongoing support. The goal is to eliminate issues and increase value of products.

Dimension of Turnstile Gate Mechanism

Specification of Turnstile Gate Mechanism

Model Number	JPS8857A
Suit for motor	suitable 57, 60, 70 motor transmission components
Maximum gate load width	600mm
Maximum braking torque	100 N.m
Application	for speed gate
Material of cylinder	aluminium alloy
Gate position reserved	RGB lamp belt mounting position and wiring hole position
main part	Adopt aluminum alloy fixed parts + stainless steel protective cover
machine core width	88mm
Movement highly	900mm

Company frofile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.

Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.

In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.

Application

RFQ

1. Are you Factory or Trader?
We are factory,and have professional R&D team as introduced in company information.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.

4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.

5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.

6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.

7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
