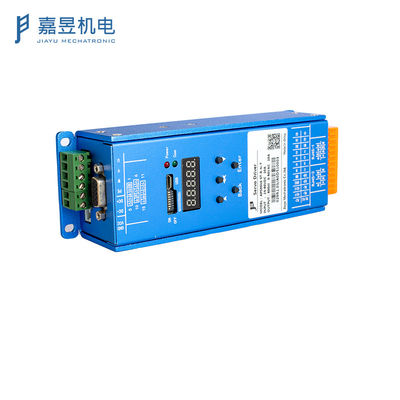

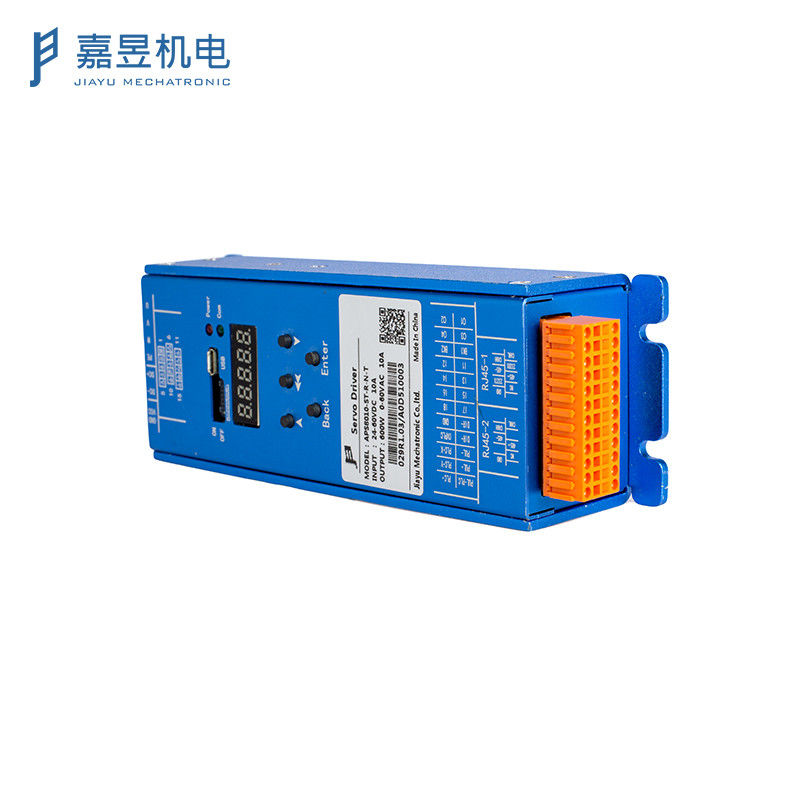

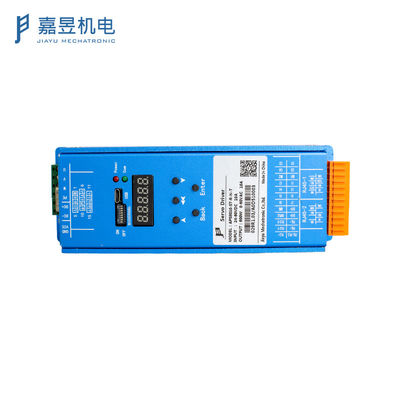

300% Overload 80V DC Servo Drive with 5 LED Display and 8 DIP Switch for Tripod Turnstile

Brand Name:	Jiayu
Model Number:	GAPS8010
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

3months-1year

Power Input:

24 ~ 80V DC

Rated/Peak Current:

10 / 30 Arms

Overload:

300%, Continuous Time 10S

Braking Unit:

Built-in Resistance, 12W

Feedback:

HALLU,HALLV,HALLW,EA,EB,EZ Incremental Encoder, +5VDC

DIP Switch:

8 DIP, Including S1 As CAN-resistance Enable (120Ω)

Communication:

RJ45 Ports Are Included RS232, RS485, CAN

Display & Key:

5 LED Display, 5 Keys

Ambient Humidity:

< 90% RH (no Condensation)

Altitude:

Derating Output Over 1000m, Derating 6% For Every 1000m Rising.

Supply Ability:

500pcs per month

Highlight:

80V DC Servo Drive

Turnstile DC Servo Drive

10S dc servo motor driver

Product Description

10S Turnstile 80V DC Servo Drive

Product Description

24v to 80V DC Servo Drive for Tripod Turnstile Series

Key Features

Suitable for low voltage DC servo motor, standard for incremental encoder feedback interface, and absolute encoder feedback interface version
Integrated industry-leading channel movement control logic, real-time detection of movement status, to meet the requirements of safe passage
For violent brake breaking and other use scenarios, the internal design of a special circuit to ensure the stable work of the driver and power supply
Supports RS232, RS485, CAN and other communication modes, provides Modbus communication protocol, and CAN interconnect with channel controller
Supporting digital key box, LCD key box and other debugging tools

Technical Specifications

Item	Value
Warranty	3months-1year
Certification	CE
Model Number	GAPS8010
Power Input	24 ~ 80 VDC
Rated/Peak Current	10 / 30 Arms
Overload	300%, continuous time 10S
Braking Unit	Built-in resistance, 12W
Feedback	HALLU,HALLV,HALLW,EA,EB,EZ Incremental encoder, +5VDC
DIP Switch	8 DIP, including S1 as CAN-resistance enable (120Ω)
Communication	RJ45 ports are included RS232, RS485, CAN

Typical Applications

Airports

Ports

Railway station

Subway station

Bus station

Commercial building

Residential communities

School

Expressway station

Product Advantages

According to the narrow side appearance specially designed for the channel gate structure, the appropriate installation position can be selected according to the whole machine structure
Support single machine operation, to meet the control requirements of unilateral structure
Suitable for swing brake, wing brake and other standard channel brake
Supporting JMC1514 channel controller, forming the industry-leading channel gate electronic control system
Provide control protocol, can be adapted to the third party control board
Provide normally open / normally close to satisfy management request
300mm acrylic door panel, opening time up to 0.3 seconds
Equipped with encoder feedback interface
One direction or bi-direction is optional

Company Profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Frequently Asked Questions

Q1: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from;
3. We provide efficient after sale-service. We can also send technician to support the installation.

Q2: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q3: What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4: How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products.
