DC Channel Gate Dedicated Servo Drive 48V 24V 8A 24A With Incremental Encoder

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EPS2408

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

Channel Gate Dedicated DC Servo Drive

,

Servo Drive With Incremental Encoder

,

Channel Gate Dedicated Servo Drive

Input Voltage:
DC 24 / 48V
Rated / Peak Current:
8A / 24A
Feedback:
Incremental Encoder With HALL
Incremental Encoder:
RS232/RS485/CAN
Digital I/O:
4 IN 3 OUT, Optocouplers Isolation
Special Interface:
1 Output For Clutch Brake
Hardware Protection:
Low Voltage, Over Voltage, Over Current, Overheating
Working Temperature:
-20℃ ~ 55℃
Weight:
0.2 KG
Application:
For Swing Gate / Flap Gate / Sliding Gate Etc
Input Voltage:
DC 24 / 48V
Rated / Peak Current:
8A / 24A
Feedback:
Incremental Encoder With HALL
Incremental Encoder:
RS232/RS485/CAN
Digital I/O:
4 IN 3 OUT, Optocouplers Isolation
Special Interface:
1 Output For Clutch Brake
Hardware Protection:
Low Voltage, Over Voltage, Over Current, Overheating
Working Temperature:
-20℃ ~ 55℃
Weight:
0.2 KG
Application:
For Swing Gate / Flap Gate / Sliding Gate Etc
DC Channel Gate Dedicated Servo Drive 48V 24V 8A 24A With Incremental Encoder
DC 24 / 48V 8A / 24A Incremental Encoder RS232/RS485/CAN full height turnstile Full height gate servo drive servo motor

Description

►Adaptive low voltage DC servo motor, incremental encoder feedback interface;

►Integrated industry-leading swing brake and wing brake channel movement module control logic, real-time detection of motion state, to meet the requirements of safe passage;

►For violent brake breaking and other use scenarios, the internal design of a special module to ensure the stable work of the driver and power supply.

►It supports RS232, RS485, CAN and other communication modes, provides Modbus communication protocol, and CAN interconnect with channel controller.

►Support multiple driver networking, can be used for double door or more channel gate;

►Supporting digital key box, LCD key box and other debugging tools;

Specification
item
value
Warranty
3months-1year
Certification
CE
Place of Origin
China
Brand Name
JIAYU
Model Number
EPS-2408
Input Voltage
DC 24 / 48V
Rated / Peak Current
8A / 24A
Feedback
Incremental Encoder with HALL
Incremental Encoder
RS232/RS485/CAN
Digital I/O
4 IN 3 OUT, Optocouplers Isolation
Special Interface
1 output for clutch brake
Hardware Protection
Low Voltage, Over Voltage, Over Current, Overheating
Working Temperature
-20℃ ~ 55℃
Weight
0.2 KG
Application
for Swing Gate / Flap Gate / Sliding Gate etc

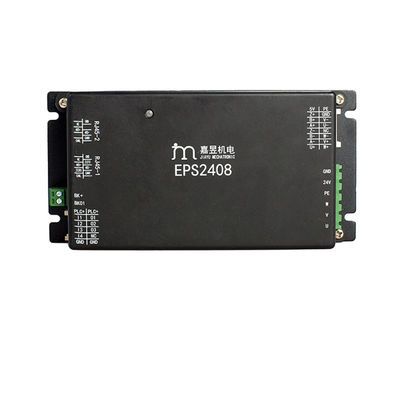

DC Channel Gate Dedicated Servo Drive 48V 24V 8A 24A With Incremental Encoder 0

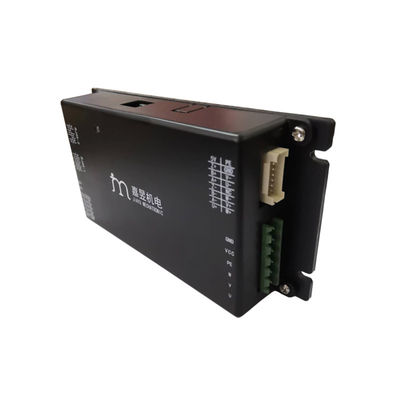

DC Channel Gate Dedicated Servo Drive 48V 24V 8A 24A With Incremental Encoder 2
DC Channel Gate Dedicated Servo Drive 48V 24V 8A 24A With Incremental Encoder 4
