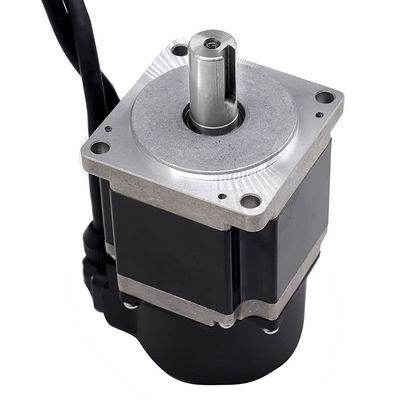

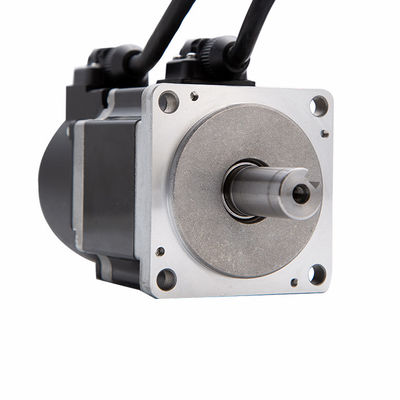

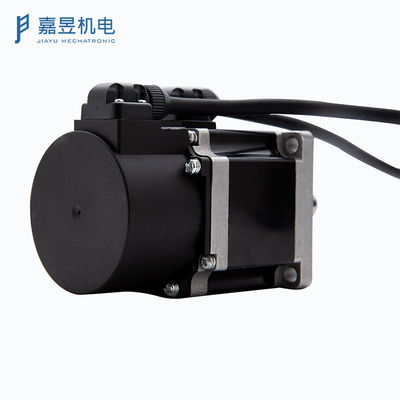

High Efficiency Three Phase Servo Motor With Not Gearbox 24V Flap Barrier Gate

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS60F

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

24V Three Phase Servo Motor

,

Flap Barrier Three Phase Servo Motor

,

24V high efficiency dc motor

Type:
SERVO MOTOR
Usage:
Swing Barrier Gate Servo Motor
Torque:
0.64
Continuous Rated Current:
5.5A
Rated Voltage:
DC 24V
Rated Power:
200W
Continuous Rated Speed:
2500RPM
Continuous Rated Torque:
0.64Nm
Encoder Resolution:
4000ppr
Peak Curren:
11
Type:
SERVO MOTOR
Usage:
Swing Barrier Gate Servo Motor
Torque:
0.64
Continuous Rated Current:
5.5A
Rated Voltage:
DC 24V
Rated Power:
200W
Continuous Rated Speed:
2500RPM
Continuous Rated Torque:
0.64Nm
Encoder Resolution:
4000ppr
Peak Curren:
11
High Efficiency Three Phase Servo Motor With Not Gearbox 24V Flap Barrier Gate

 3-phase Low-voltage Servo Motor With Not Gearbox High efficiency 24V for flap barrier Gate Swing barrier Gate for Building



Products description

swing barriers gate motor EBS60F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Features:
● Maximum outer diameter 60mm, motor and reducer split, suitable for channel gate movement structure;
● Comes with a 1000-line incremental encoder with an optional 1:50 reduction ratio to achieve high-precision control of the movement of the
movement;

Specification

Model Number
EBS60F-200B
Input Voltage
DC24V/48V
Rated / Peak Current
8A/24A
Incremental Encoder
RS232/RS485/CAN
Feedback
Incremental Encoder with HALL
Special interface
1 output for clutch brake
Hardware Protection
Lowvoltage, Overvoltage, Overcurrent, Overheating
Working Temperature
-10℃ ~ 55℃



Application

① swing gate at Airports

② speed gate at Ports

③ Railway station sliding gate

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station



Dimension

High Efficiency Three Phase Servo Motor With Not Gearbox 24V Flap Barrier Gate 1

High Efficiency Three Phase Servo Motor With Not Gearbox 24V Flap Barrier Gate 2
