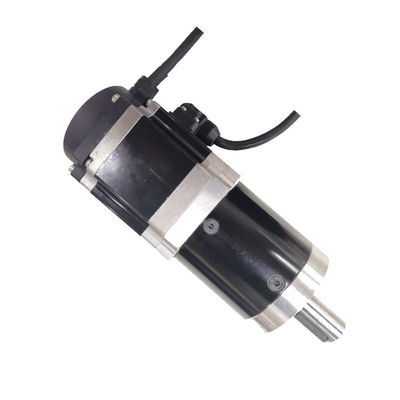

Access Gate Servo Drive Motor 60mm Planetary Gearbox 75RPM 1000 Line Incremental Encoder

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

Access Gate Servo Drive Motor

,

75RPM Servo Drive Motor

,

60mm planetary dc motor

Usage:
Swing Barrier Gate Servo Motor
Torque:
0.64N.m
Speed(RPM):
2500rpm
Continuous Current(A):
11A
Rated Current:
5.5A
Rated Torque:
20.8Nm
Rated Speed:
75RPM
Rated Power:
200W
Encorder:
1000
Gear Ratio:
1:40
Usage:
Swing Barrier Gate Servo Motor
Torque:
0.64N.m
Speed(RPM):
2500rpm
Continuous Current(A):
11A
Rated Current:
5.5A
Rated Torque:
20.8Nm
Rated Speed:
75RPM
Rated Power:
200W
Encorder:
1000
Gear Ratio:
1:40
Access Gate Servo Drive Motor 60mm Planetary Gearbox 75RPM 1000 Line Incremental Encoder

60mm Access Gate Servo Drive Motor with Planetary Gear Box 75RPM 1000-line Incremental Encoder elevator gate motor



Products description

swing barriers servo motor with gearbox high torque series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Feature:
  • Square body, integrated structure of motor and reducer, suitable for passage gate movement structure;
  • The body is equipped with a 1000-line incremental encoder with a standard 1:40 reduction ratio to achieve high-precision control of movement.

Advantages



  • 300mm acrylic door panel, opening time up to 0.3 seconds
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
  • High-resolution position feedback with 1000 lines can realize accurate positioning
  • The service life is not less than 10 million times. Authoritative appraisal by third party testing institution.
  • Using low temperature bearing and low temperature grease, it can operate normally in low temperature environment

Dimension

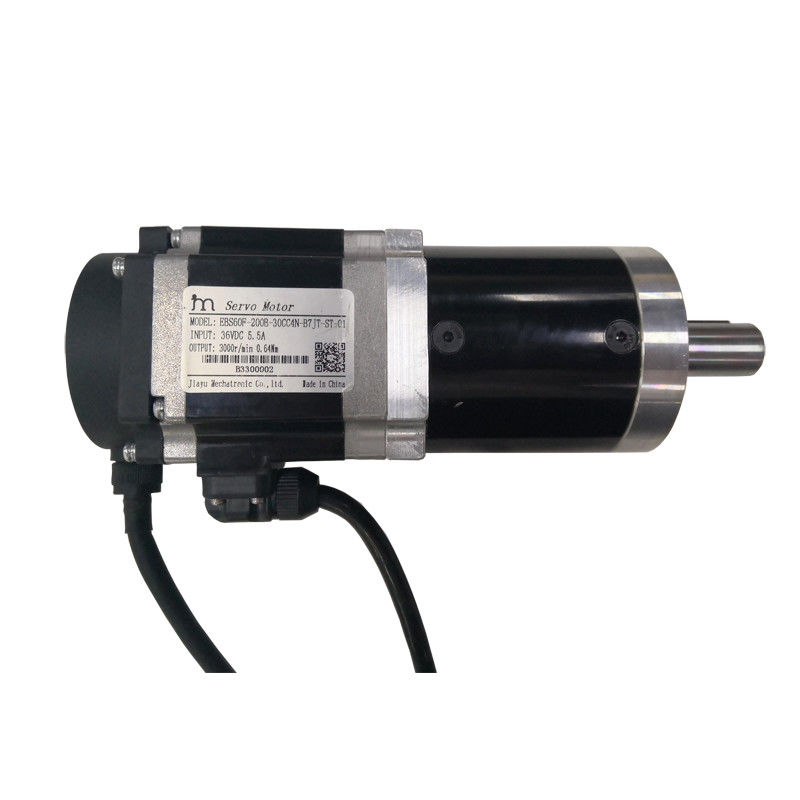

Access Gate Servo Drive Motor 60mm Planetary Gearbox 75RPM 1000 Line Incremental Encoder 1

Specification

Model
EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Rated Voltage
DC 36V
Rated Current
5.5A
Rated Torque
20.8Nm
Rated Speed
75RPM
Rated Power
200W
Poles
8
Encorder
1000
Gear Ratio
1: 40

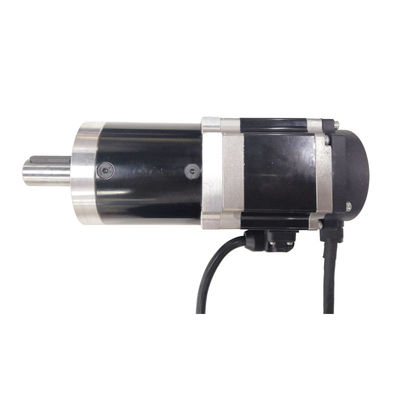

Access Gate Servo Drive Motor 60mm Planetary Gearbox 75RPM 1000 Line Incremental Encoder 3
