Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS60F
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Type: |
SERVO MOTOR |
Torque: |
0.64Nm |
Speed(RPM): |
3000RPM |
Continuous Current(A): |
5.5A |
Nominal Voltage: |
DC 36V |
Nominal Current: |
5.5A |
Nominal Torque: |
0.64Nm |
Nominal Speed: |
3000RPM |
Nominal Power: |
200W |
Poles: |
8 |
Encoder: |
1000 |
Gears: |
1:25,1:50 |
Type: |
SERVO MOTOR |
Torque: |
0.64Nm |
Speed(RPM): |
3000RPM |
Continuous Current(A): |
5.5A |
Nominal Voltage: |
DC 36V |
Nominal Current: |
5.5A |
Nominal Torque: |
0.64Nm |
Nominal Speed: |
3000RPM |
Nominal Power: |
200W |
Poles: |
8 |
Encoder: |
1000 |
Gears: |
1:25,1:50 |

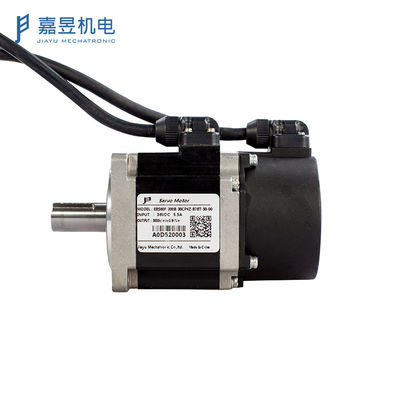

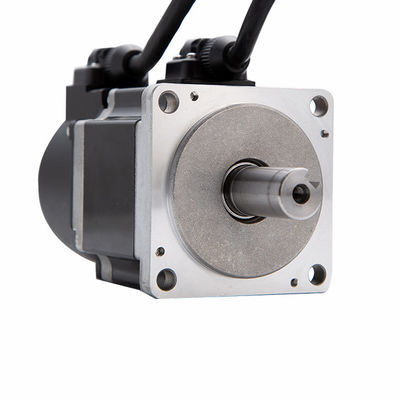

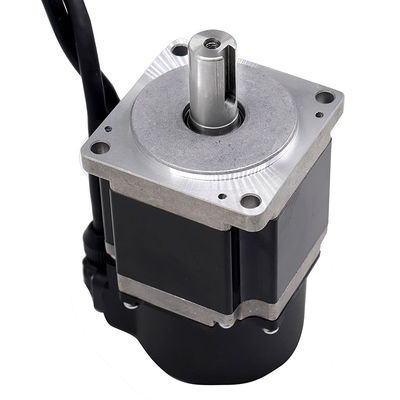

swing barriers gate motor EBS60F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
① swing gate at Airports
② speed gate at Ports
③ Railway station sliding gate
④ Subway station
⑤ Bus station
⑥ Commercial building
⑦ Residential communities
⑧ School
⑨ Expressway station
Dimension
Specification
| Rated voltage | 48v |
| Rated power | 400w |
| Continuous rated speed | 3000rpm |
| Continuous rated torque | 1.27nm |
| Continuous rated current | 11.6A |
| Peak current | 21A |
| Encoder resolution | 10000ppr |
| Usage | swing gate speed gate flap barrier gate |
| Name | dc servo motor |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
