Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: JY-DZ-CB-01
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Rated Voltage: |
24v |
Rated Power: |
120w |
Continuous Rated Speed: |
2000rpm |
Continuous Rated Current: |
6A |
Output Speed: |
17RPM |
Output Torque: |
1.5Kgf..m |
Lifting Time: |
0.3~0.8S |
Encoder Resolution: |
12000PPR |
Rated Voltage: |
24v |
Rated Power: |
120w |
Continuous Rated Speed: |
2000rpm |
Continuous Rated Current: |
6A |
Output Speed: |
17RPM |
Output Torque: |
1.5Kgf..m |
Lifting Time: |
0.3~0.8S |
Encoder Resolution: |
12000PPR |
1.5 kgf.m 120 W IP44 6A 120W 1500r/min 0.3s-0.8s boom barrier gate mechanism

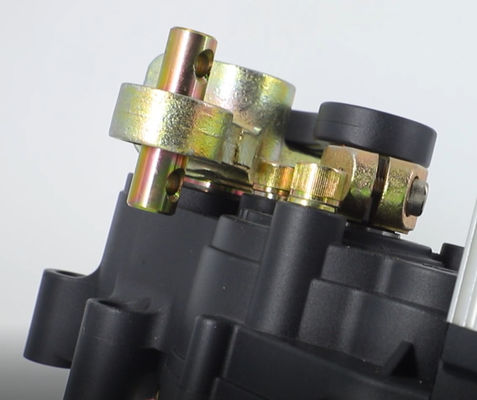

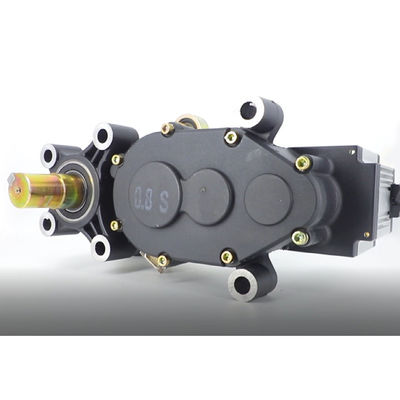

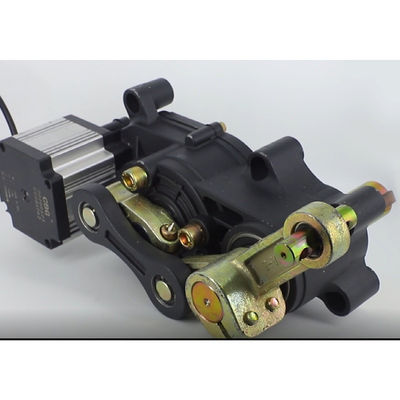

Description
JY-DZ-CB-01/02/03/04 BOOM barrier gate mechanisn work with servo controller suitable for Vehicle Barriers for parking lot, parking garage, office buildings, industrial parks and residential communities etc.
Reliablity
1) The movement adopts side stick installation, which is convenient for installation and compact in structure.
2) The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
3) The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
4) The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
5) DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.
| No | Model+ | output power |
voltage | current | Motor amount Fixed speed |
Lifting and lowering time |
Spindle output torque |
insulation class |
protection class |
| 1 | 18B-0.3S | 120W | DC24V | 6A | 1500r/min | 0.3S-0.8S | 1.5kgf.m | F | IP44 |
| 2 | 18B-0.6S | 120W | DC24V | 6A | 1500r/min | 0.6S-1.5S | 3kgf.m | F | IP44 |
| 3 | 18B-1.2S | 120W | DC24V | 6A | 1500r/min | 0.6S-1.5S | 5.9kgf.m | F | IP44 |
| 4 | 18B-2.5S | 120W | DC24V | 6A | 1500r/min | 2.5S-6.0S | 11.8kgf.m | F |
IP44
|
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
jiayu
|
|
Rated voltage
|
24v
|
|
Rated power
|
120w
|
|
Continuous rated speed
|
2000rpm
|
|
Continuous rated current
|
6A
|
|
Peak current
|
12A
|
|
Output speed
|
17RPM
|
|
Output torque
|
1.5Kgf..m
|
|
Lifting time
|
0.3~0.8S
|
|
Encoder resolution
|
12000PPR
|
|
Product name
|
barrier gate movement
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
Q1 : How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. We provide effecient after sale-service. We can also send technician to support the installation.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.
