70mm High Resolution 1800rpm BLDC Servo Motor with Integrated Gearboxes for High Torque and Servo Overload

Brand Name:	Jiayu
Model Number:	GMBS70ZF-40A-1836
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Commutation:

Brushless

Speed(RPM):

1800rpm

Continuous Current(A):

Rated Speed:

1800rpm

Rated Voltage:

24VDC

Rated Power:

Motor Diameter:

Rated Torque:

0.21nm

Encoder Lines:

2400lines

Ratio:

Supply Ability:

500pcs per month

Highlight:

1800rpm BLDC Servo Motor

BLDC Servo Motor Brushless

70mm high resolution servo motor

Product Description

70mm High Resolution 1800rpm BLDC Servo Motor Brushless Integrated Gearboxes

Product Description

High-resolution position feedback 1800rpm 24VDC BLDC servo motor integrated gearboxes for swing gate.

Swing gate motor MBS70ZF series are designed to work with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting. Adopts 2400 lines encoder, suitable for indoor and outdoor situations, easy to install. The BLDC servo motor is widely used for applications like stadium, apartment, gym, museum, station, library and factory etc.

Key Features

40W Brushless servo motor works with 24V power supply
High-resolution position feedback with 2400 lines can realize accurate positioning with 12,000 pulses in a single turn (400 times higher resolution than traditional brushless motors)
Compact design: 70mm widest part, 140mm width space occupied, 71mm highest part
D type motor shaft for easy installation; 30mm thickened shaft prevents damage from violent break-in
Rated speed with 1:36 reduction ratio, rated output torque up to 5.5NM
High strength butterfly inner gear to resist impact
Servo overload characteristics: 2 times current overload capability, stronger push resistance than standard brushless motors

Performance Advantages

High-resolution position feedback with 2400 lines
Servo closed loop control with 2 times current overload capability
300mm acrylic door panel with opening time up to 0.4 seconds
Servo vector algorithm enables sensitive anti-pinch protection

Technical Specifications

Model Number	GMBS70ZF-40A-1836
Type	Brushless Motor
Torque	0.21nm
Protect Feature	Drip-proof
Speed(RPM)	1800rpm
Continuous Current(A)	3A
Efficiency	IE 2
Rated speed	1800rpm
Rated voltage	24VDC
Rated Power	40w
Motor Diameter	70mm
Keywords	Long Life Low Noise
Rated torque	0.21nm
Encoder lines	2400lines
Motor Features	High Speed
Brush Type	brushless
Ratio	1:36

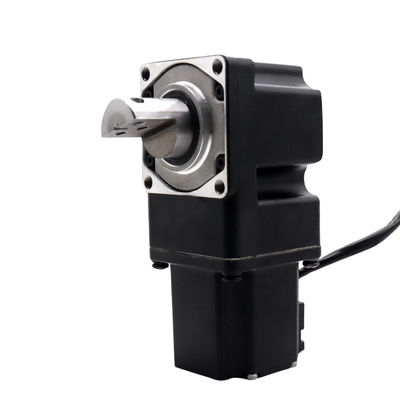

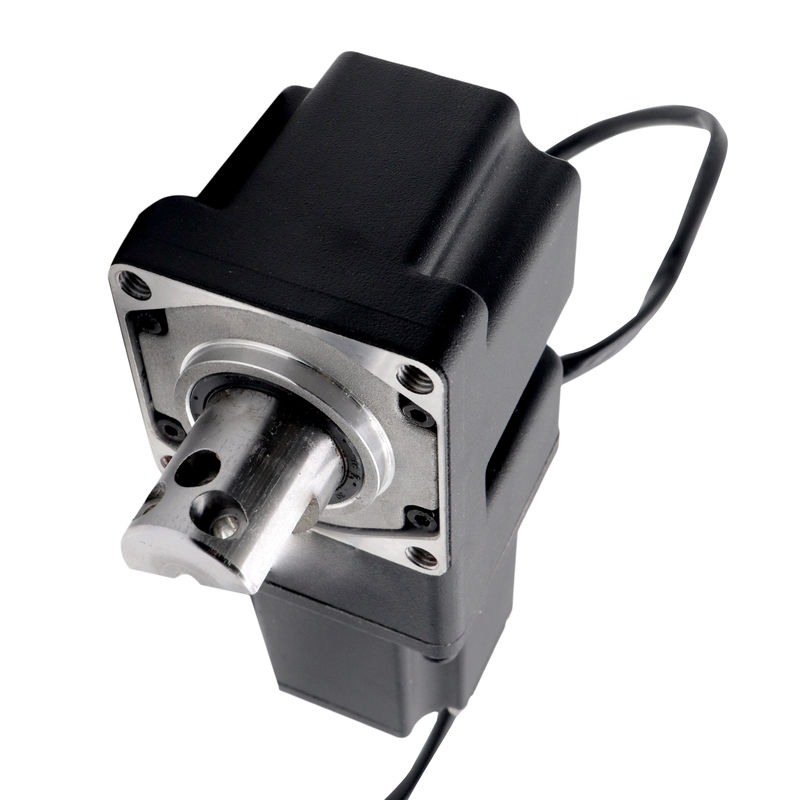

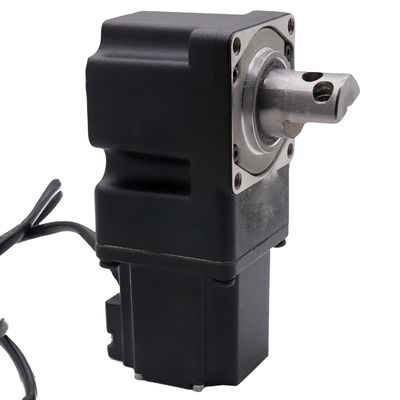

Product Images

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample order by low charging than order.

Q: What is your terms of payment?

A: 100%TT in advance, 30% T/T in advance, balance before shipment.
