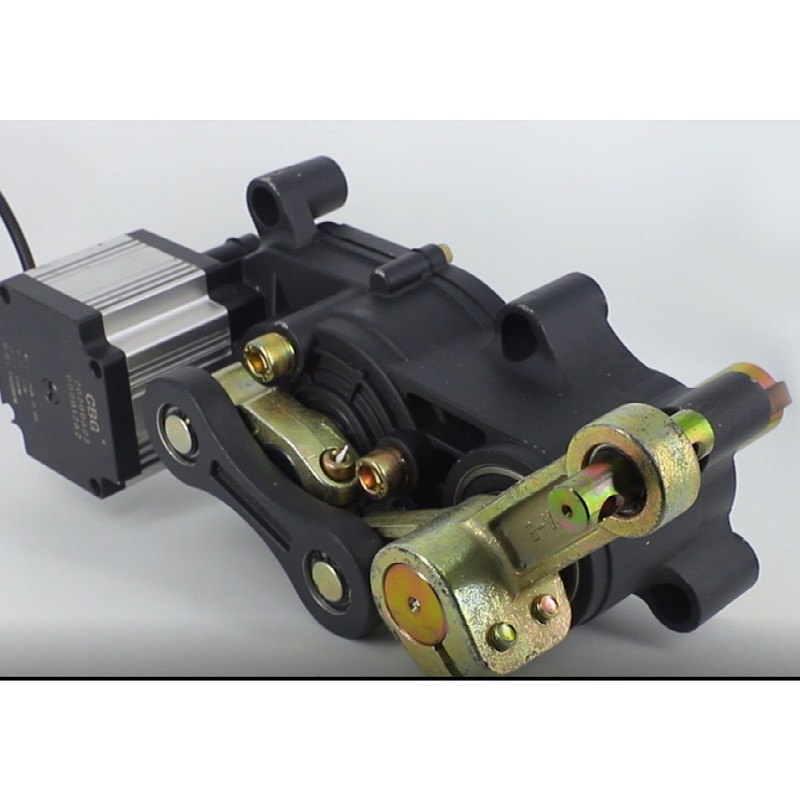

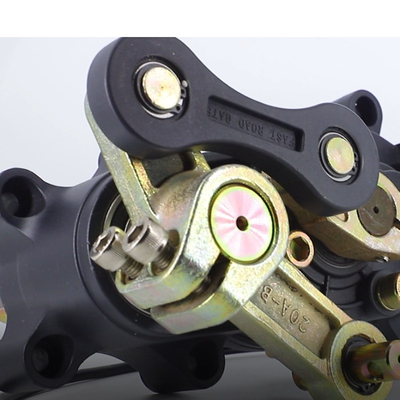

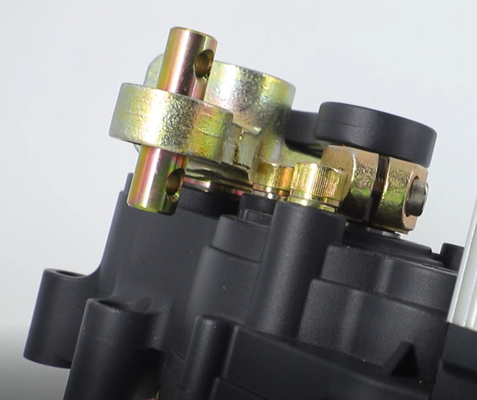

Turnstile Gate Mechanism
>
IP44 1.2s Turnstile Gate Mechanism For Boom Barrier Gate

IP44 1.2s Turnstile Gate Mechanism For Boom Barrier Gate

Brand Name: Jiayu
Model Number: JY-DZ-CB-01
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Appilication:
Barrier Gate
Output Power:
120W
Voltage:
DC 24V
Rated Current:
6A
Motor Rated Speed:
1500r/min
Drop Time:
0.3s-0.8s
Spindle Output Torque:
1.5kgf.m
Use:
Widely Used In Road Gates, Machinery ,etc
Supply Ability:
500pcs per month
Highlight:

1.2s Turnstile Gate Mechanism

,

IP44 Turnstile Gate Mechanism

,

1.2s Boom Barrier Gate Mechanism

Product Description
Turnstile Gate Mechanism 1.2s Boom Barrier Gate For Car Parking


Product performance characteristics of Turnstile Gate Mechanism
1) The movement adopts side stick installation, which is easy to install and compact in structure.
2) The main body of the movement is made of aluminum alloy by die-casting process, with reliable mechanical strength, beautiful appearance, accurate size and good heat dissipation.
3) The movement adopts gear reduction drive, which has high transmission efficiency and small power output loss;Gear material SCM421, carburizing heat treatment process, precision gear grinding, wear resistance, impact resistance, service life far beyond the worm gear transmission structure.
4) The movement adopts the BRUShless DC motor, with large output torque and small volume. The speed can be adjusted arbitrarily by the controller, and the deceleration buffer can be realized when the falling rod and lifting rod are in place, so that the brake rod can be in place smoothly.
5) The motor adopts DC24V safety voltage, which can avoid electric shock accident caused by electric leakage and ensure personal safety.


Our service:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.


Specification of Turnstile Gate Mechanism
Model Number
JY-DZ-CB-01
Usage
barrier gate
Protect Feature
IP44
Speed(RPM)
1500r/min
output power
120W
voltage
DC 24V
Rated current
6A
Motor rated speed
1500r/min
Drop time
0.3s-0.8s
Spindle output torque
1.5kgf.m





Dimension of Turnstile Gate Mechanism

IP44 1.2s Turnstile Gate Mechanism For Boom Barrier Gate 0



Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers. The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable. The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team.
IP44 1.2s Turnstile Gate Mechanism For Boom Barrier Gate 2
FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
