Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Usage: |
Turnstile Gate |
Construction: |
Permanent Magnet |
Torque: |
20.8Nm |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Rated Voltage: |
DC 36V |
Rated Power: |
200W |
Encorder: |
1000 |
Usage: |
Turnstile Gate |
Construction: |
Permanent Magnet |
Torque: |
20.8Nm |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Rated Voltage: |
DC 36V |
Rated Power: |
200W |
Encorder: |
1000 |

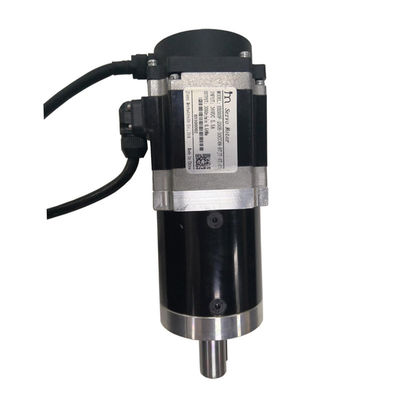

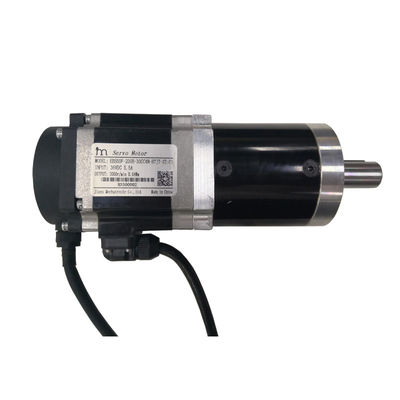

Products description of DC Servo Motor
Speed gate, sliding gate servo motor with gearbox high torque series adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor install with the turnstile gate widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Specification of DC Servo Motor
| Usage | turnstile |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Torque | 20.8Nm |
| Speed(RPM) | 75RPM |
| Continuous Current(A) | 5.5A |
| Efficiency | IE 4 |
| Rated Voltage | DC 36V |
| Rated Power | 200W |
| Encorder | 1000 |
Application of DC Servo Motor
① Airports
② Ports
③ Railway station
④ Subway station
⑤ Bus station
⑥ Commercial building
⑦ Residential communities
⑧ School
⑨ Expressway station
Dimension
Features of DC Servo Motor
► Open and close up to 30 million times
► Super over-load capacity, overload 3 times in a short time without damage
► No need induction switch, power on automatic reset, can accurately set the closing position
► Convenient maintenance, with computer software, can quickly and intuitively modify and debug parameters
► High reliability, temperature -20℃ ~ 55℃, humidity below 90% environment can also operate freely
► With RS232, RS485 communication interface.
► Integrated traffic logic + motor drive function, using servo control algorithm, open and close fastly and smoothly, accurately positioning;opening and closing the door without shaking
