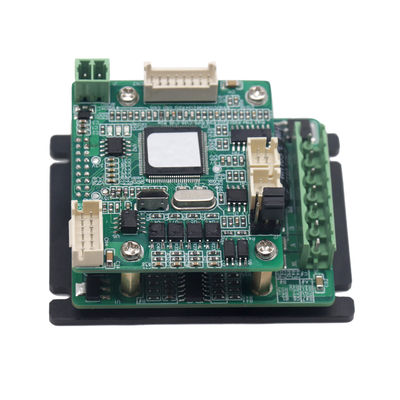

DC Servo Drive
>
DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot

DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot

Brand Name: Jiayu
Model Number: L11-10612-ST-RC-00(RS485+RS232,CAN,INC ENC)
MOQ: 2PCS
Price: Negotiable
Packaging Details: carton
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ce, ROHS
Power Input:
DC18V~48V
Overload:
Load≦200%, Overload Time﹤120S 200%﹤load﹤300%,overload Time﹤5S
Encoder Feedback:
Incremental Encoder
Pulse Quantity Input:
5V Differential Input 0 To 4MHz; 24V Single-ended Input 0 To 200kHz.
Communication:
RS485, CAN Interface; Supports Both Modbus And CANopen Protocols
Protection:
Phase To Phase Short Circuit, 5V Short Circuit Busbar Overvoltage Protection, Overcurrent Protection
Ambient Humidity:
Below 90% RH (no Condensation)
Rated Output Current:
12A
Supply Ability:
50000PCS/year
Product Description

DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot



Product description of industry AGV robot DC servo drive

L12 series DC servo system from Jiayu Mechatronic. In order for you to use this servo product correctly, this manual systematically introduces the naming rules of the servo driver and motor, confirmation of the driver and motor matching, wiring, use, parameter setting, precautions for use and fault diagnosis, etc.

The L12 series of DC servo drives are highly integrated, small in size, well protected and reliable, and use the optimal PID algorithm to control the current, speed and position loops.



Product range

L12 series low voltage servo drive system

Application features

1. Adaptation to DC servo motors up to 400W, 750W, 1000W, supporting incremental and absolute encoders.

2. Support for position control, speed control, torque control and single axis control modes.

3. RS485/CANopen bus communication for multi-axis device control.

Complementary functions

1. Modbus serial communication protocol (RS485).

2. Upper computer software with oscilloscope function for parameter modification and monitoring and commissioning.

3. Provision of serial port burn-in download tools and support for online remote serial port upgrades.



Products features of industry AGV robot DC servo drive

Control method

① Position control ② Internal position command control

Position control

Pulse volume input; electronic gear ratio; support for positioning completion output function.

Single axis control

Internal command control; support for zero return, jogging, positioning and limit functions.

IO control

Support for enable inputs, alarm clear inputs, command disable inputs, positive and negative limit inputs, etc..

Support for servo-ready outputs, alarm outputs, holding brake control outputs, etc..

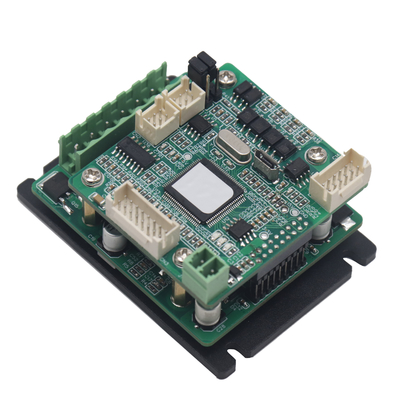

DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot 0

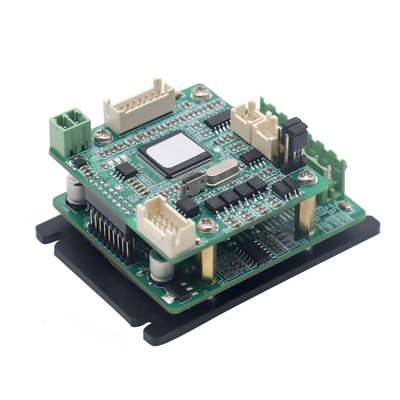

DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot 1



Advantages of industry AGV robot DC servo drive

①  ① The motor winding protects the power supply from short circuit

② Motor winding inter-phase short circuit protection

③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection

⑥ Phase to phase short circuit, 5V short circuit

⑦ Busbar overvoltage protection, overcurrent protection



Applications of industry AGV robot DC servo drive

  • AGV servo motor
  • Logistics sorting
  • medical instruments
  • 3C equipment
  • Autonomous Harvesting Robot
  • Educational Robotics

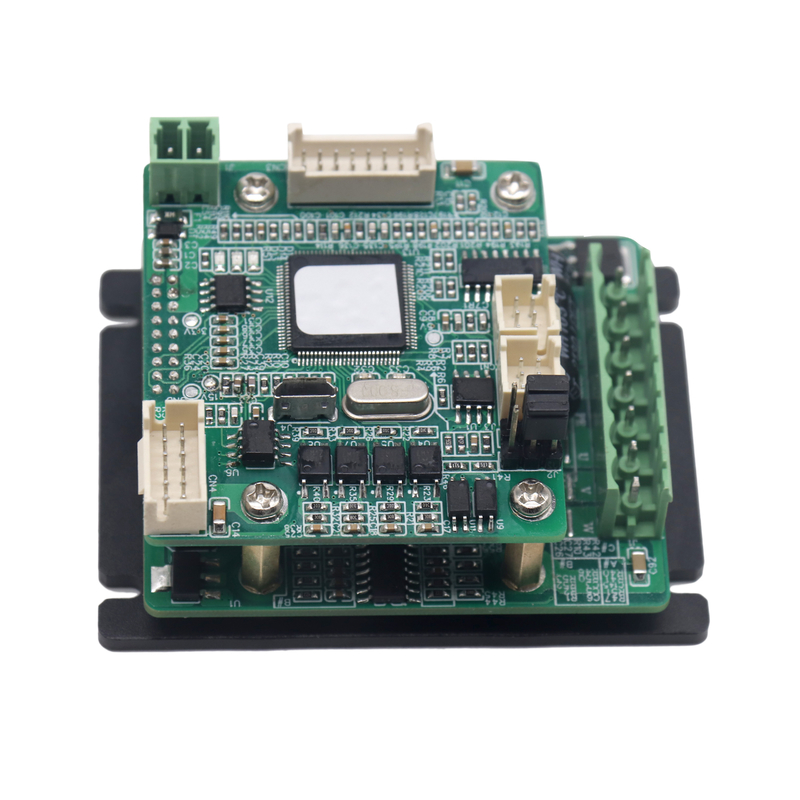

DC Servo Drive Highly Integrated With Incremental or Absolutely Encoder for Industrial AGV Robot 2
