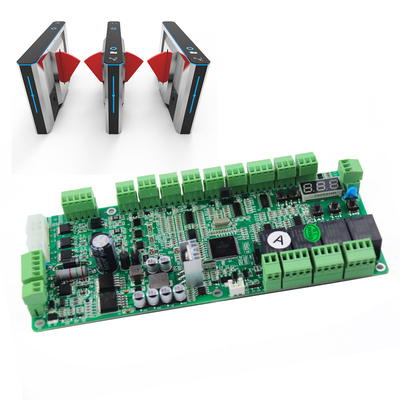

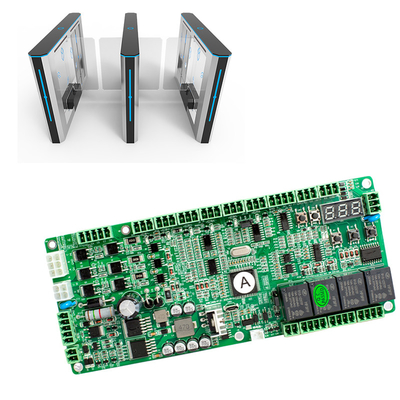

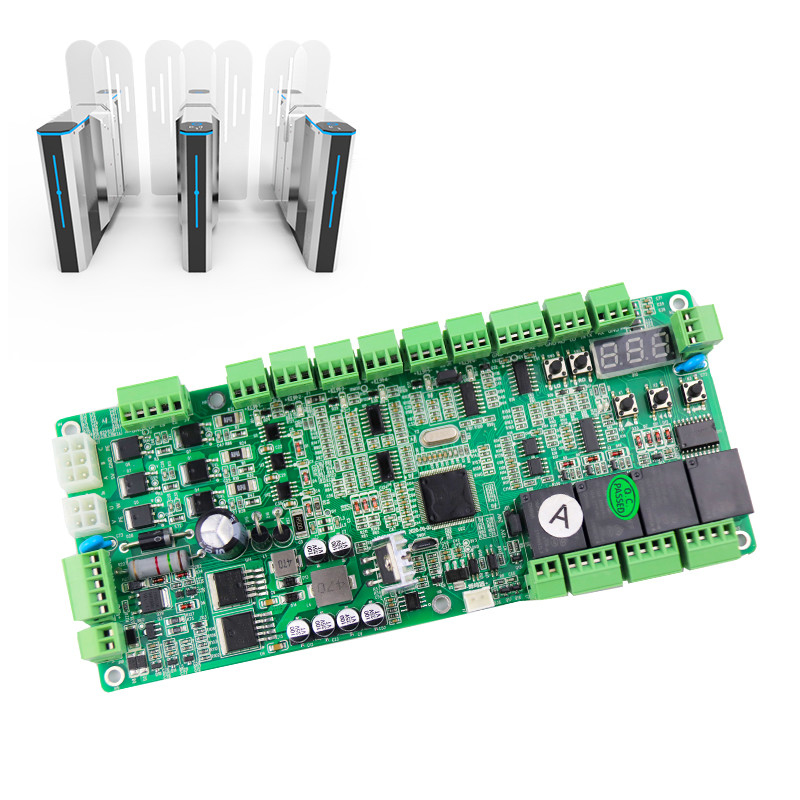

Turnstile Gate Control Board Support 6 Pairs Sensors PNP NPN

Brand Name: CSJY
Model Number: MBC2406
MOQ: 2
Price: according to quantities
Packaging Details: cartons
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Document:
MBC2406 Simplified specific...1).pdf
Power Supply:
DC24V
Current:
6.5A
Communication Mode:
RS232 Serial Communication, Supporting Modbus Protocol
Infrared Sensor:
6 Independent Interfaces, PNP, NPN Normally Open, Open Collector Type
Adaptor Motor:
DC Brushless Motor Below 60W With 2400-line Position Feedback
Application:
Swing Gate, Speed Gate, Flap Gate, Sliding Gate Or Tripod Turnstile
Voice Output:
External 8W 4Ω Speaker
Working Environment:
-20℃ ~ 55℃, Humidity Below 90% (no Condensation)
Supply Ability:
5000pcs/month
Product Description

Turnstile Gate Control Board Support 6 Pairs Sensors PNP NPN


Product introduction:

This system consists of access gate control board, brushless servo motor, servo control technology, real-time detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.


Functional characteristics:

MBC2406 brushless servo solution

Ordinary brushless solution

Adapting motor

Brushless motor with 2400 line position feedback

Ordinary DC brushless motor

Anti-pinch protection

Current+position double detection, adjustable sensitivity

No encoder, low anti-pinch sensitivity

Control effect

The switch speed is fast, and it is stable and does not shake.

Deceleration is obvious and there is shaking.


Technical parameter:

① Input power supply: DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;

②  Adaptor motor: DC brushless motor below 60W with 2400-line position feedback;

③ Communication mode: RS232 serial communication, supporting Modbus protocol;

④ Power-off: DC12V battery, or optional super capacitor module;

⑤ Working environment: -20℃ ~ 55℃, humidity below 90% (no condensation)

⑥ Infrared sensor: 6 independent interfaces, PNP, NPN normally open, open collector type;

⑦ Voice output: external 8W 4Ω speaker.


Application:

Turnstile Gate Control Board Support 6 Pairs Sensors PNP NPN 0
