Speed Gate Drive

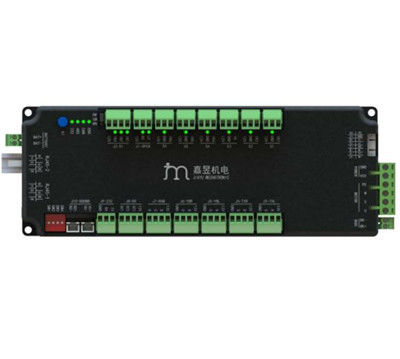

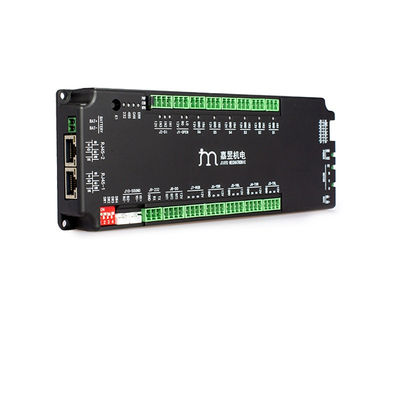

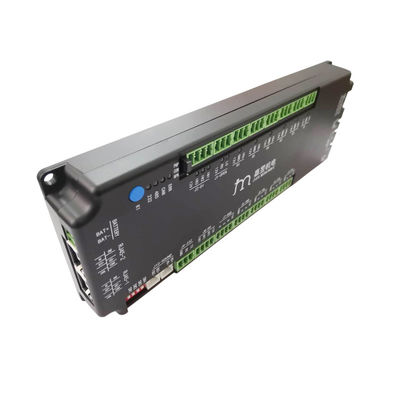

JMC4805 DC Turnstile Controller Servo Drive with 5A/15A Current 6 Infrared Inputs and 2 Entrance Guard Inputs

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

JMC4805 DC Turnstile Controller Servo Drive with 5A/15A Current 6 Infrared Inputs and 2 Entrance Guard Inputs

Brand Name:	Jiayu
Model Number:	GJMC4805
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Input Voltage:

DC 24 / 48V

Rated / Peak Current:

5A / 15A

Suitable Motor:

Low Voltage Servo Motor

Encoder Feedback Type:

Incremental (pulse Type)

Communication Interface:

RS232 / RS485 / CAN

Hardware Protection:

Over-current / Short-circuit / Reverse Polarity Protection

Light Output:

Courtesy Lights | Traffic Lights | RGB Lights

Voice Output:

Buzzer, Voice 1 Way

Infrared Input:

6 Independent Interfaces, Compatible With PNP And NPN Types

Input/ Output Signal:

2 Entrance Guard + 3 Extended Inputs/outputs

Supply Ability:

500pcs per month

Highlight:

DC Turnstile Controller Servo Drive 24V

DC Turnstile Controller Servo Drive 48V

DC Turnstile Servo Controller

Product Description

JMC4805 DC Turnstile Controller Servo Drive 24V 48V

Product Overview

Turnstile Servo Controller with 6 Infrared Logic for Swing Gate Flap Gate Sliding Gate Turnstile Controller. Designed for controlling pedestrian access in various settings including stadiums, apartments, gyms, museums, stations, libraries and factories.

Key Features

Equipped with low voltage servo motor and incremental encoder feedback interface
Integrated channel movement control logic and infrared traffic logic
Special circuit design for stability in violent breaking scenarios
Supports multiple communication modes (RS232, RS485, CAN) with Modbus protocol
Compatible with digital debugger, LCD debugger, and PC upper computer tools
300mm acrylic door panel with opening time up to 0.3 seconds
Optional one-direction or bi-direction operation

Technical Specifications

Input voltage	DC 24 / 48V
Rated / Peak current	5A / 15A
Suitable motor	Low voltage servo motor
Encoder feedback type	Incremental (pulse type)
Communication interface	RS232 / RS485 / CAN
Hardware protection	Over-current, Short-circuit, Reverse polarity protection
Light output	Courtesy lights \| Traffic lights \| RGB lights
Voice output	Buzzer, voice 1 way
Infrared input	6 independent interfaces, compatible with PNP and NPN types
Input/Output signal	2 entrance guard + 3 extended inputs/outputs
Special output	1-way clutch output
Power failure switch on	External 12V 1.3AH battery
Violence broke into	Built-in brake module
Multi-Function Buttons	Open doors, set zero, restore default values, etc
Working Temperature	-20℃ ~ 55℃
Working Humidity	90%, No condensation

Manufacturer Information

Shenzhen Jiayu Mechatronic CO., Ltd is a high-tech enterprise with multiple invention patents and software copyrights in servo drive and channel gate control technology. As a main module supplier in the domestic gate control industry, Jiayu specializes in R&D, production, and sales of automatic gate control movement core modules.

Frequently Asked Questions

Q: Can I install it myself?

A: Yes, it will be easy to install. We will provide installation instructions and videos.

Q: Is the product waterproof?

A: Yes, our products are waterproof and can be used outdoors.

Q: Are you a distributor or a manufacturer?

A: We are a manufacturer, selling directly from our factory with competitive pricing and service advantages.

Q: How is the freight calculated?

A: It varies according to the delivery address. Please consult our online customer service for details.

Q: How long is the production cycle?

A: Conventional products are typically in stock, while customized products have a production cycle of about one week.
