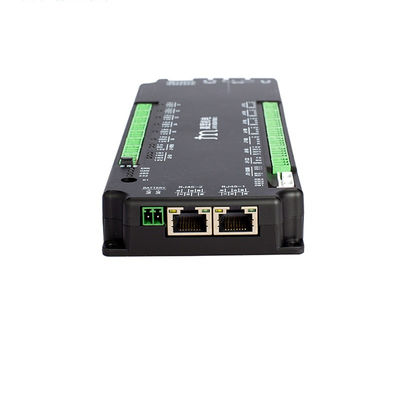

JMC4805 Gate Controller Support Maximum 6 Pairs Sensors Input Independently
  • name
  • name
  • name

JMC4805 Gate Controller Support Maximum 6 Pairs Sensors Input Independently

Brand Name: CSJY
Model Number: JMC4805
MOQ: 2
Price: Negotiate
Packaging Details: carton
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
CHINA
Certification:
CE
Document:
JMC4805 Debugging Instructi...21.pdf
Input Voltage:
DC 24
Rated/peak Current:
5A / 15A
Adapt The Motor:
Low Voltage Servomotor
Encoder Feedback:
Incremental (Pulse Type)
Communication Interface:
RS232 / RS485 / CAN
Hardware Protection:
Over-current, Short-circuit, Reverse-connection Protect
Dedicated Output:
1-way Clutch Output
Operating Ambient Temperature:
-20℃ ~ 55℃
Humidity Of Working Environment:
90%, No Condensation
Infrared Input:
6 Independent Interfaces, Compatible With PNP And NPN
Supply Ability:
5000
Product Description

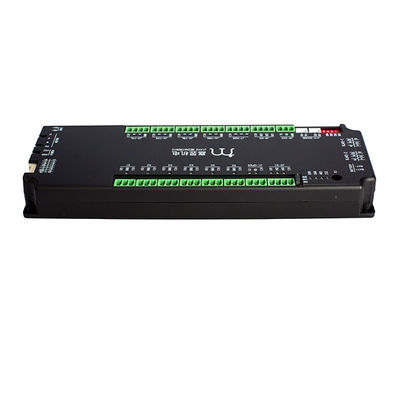

JMC4805 Gate Controller Support Maximum 6 Pairs Sensors Input Independently


Product Description

Engineered for high-reliability pedestrian access control, the JMC4805 Gate Controller is an all-in-one integrated solution that combines servo motor drive and intelligent access logic into a single compact module. Designed specifically for turnstiles, swing barrier gates, speed gates, sliding gates, and wing gates, this controller simplifies system design, reduces wiring complexity, and lowers installation and maintenance costs.

The JMC4805 provides a rich set of I/O for complete system integration, including two entrance guard inputs, three extended inputs/outputs, and multiple relay outputs for controlling courtesy lights, traffic lights, and RGB indicators. An integrated buzzer and voice output provide audible feedback for enhanced user guidance. A dedicated clutch output offers additional control for specialized mechanical functions.

Technical Specifications

Suitable Motor Low-voltage servo motor
Encoder Feedback Type Incremental (pulse type)
Communication Interface RS232, RS485, CAN (Modbus RTU protocol)
Power Failure Switch External 12V 1.3AH battery (for gate opening)
Violence Break-in Protection Built-in brake module
Operating Temperature -20°C to +55°C
Certification ce, rohs
Hardware Protection Overcurrent, short-circuit, reverse polarity protection

Applications

Swing barrier gates, speed gates, sliding gates, wing gates, flap barrier gates

JMC4805 Gate Controller Support Maximum 6 Pairs Sensors Input Independently 0

JMC4805 Gate Controller Support Maximum 6 Pairs Sensors Input Independently 1
