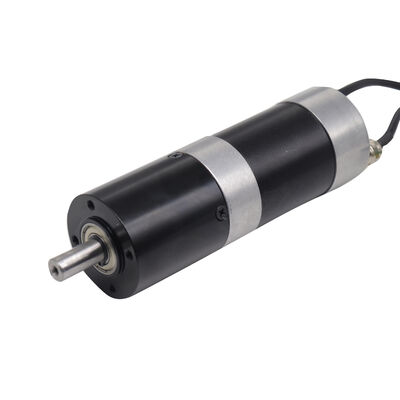

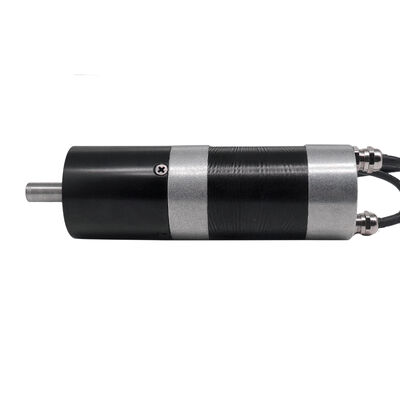

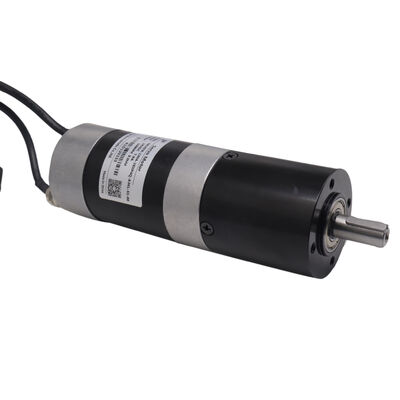

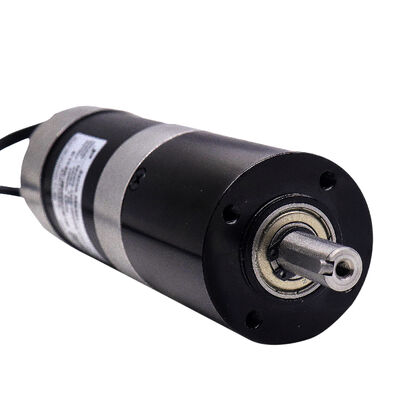

Speed Gate Motors 130 Watt Closed Loop Servo Motor 57mm Planetary Gear Motor 24V

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS57R-130A-26XP4Q-A3KL-S1-00(1:26)

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

100 Watt Closed Loop Servo Motor

,

24V Closed Loop Servo Motor

,

57mm Planetary Gear Motor 24V

Type:
SERVO MOTOR
Output Torque:
9.3Nm
Speed(RPM):
2000RPM
Continuous Current(A):
5A
Rated Voltage:
DC 24V
Rated Torque:
0.5Nm
Rated Speed:
2000RPM
Rated Power:
130W
Encorder:
1000
Gear Ratio:
1:20,1:50 (optional)
Type:
SERVO MOTOR
Output Torque:
9.3Nm
Speed(RPM):
2000RPM
Continuous Current(A):
5A
Rated Voltage:
DC 24V
Rated Torque:
0.5Nm
Rated Speed:
2000RPM
Rated Power:
130W
Encorder:
1000
Gear Ratio:
1:20,1:50 (optional)
Speed Gate Motors 130 Watt Closed Loop Servo Motor 57mm Planetary Gear Motor 24V
Speed Gate Motors 130 Watt Closed Loop Servo Motor 57mm Planetary Gear Motor 24V





Product description
1. Power 130W, voltage DC24V;
2. Servo motor and precision planetary reducer integrated design, suitable for installation in the cylinder;
3. Motor with 1000 wire magnetic plaiting, suitable for vector control, accurate positioning;
4. Motor with 1:26 metal planetary reducer, suitable for 300 mm channel (acrylic) 0.3 seconds to open the door;
5. The service life of motor opening and closing is not low voltage 10 million times, and the third party testing structure identification;
6. The motor grease is made of low-temperature resistant material, which is suitable for the ambient temperature from -25 degrees to 70 degrees. 7. The noise is lower than the traditional planetary reducer, reaching 58 dB;
8. Comply with CE export standards
9. Waterproof joint technology of rear end cover prevents dust and water vapor from entering the encoder

10.  Round body, integrated structure of motor and reducer, suitable for passage gate movement structure;
11. The body is equipped with a 1000-line incremental encoder with a standard 1:20 reduction ratio to achieve high-precision control
of movement.





Features

  • 300mm acrylic door panel, opening time up to 0.3 seconds
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
  • Th Service life is not less than 6 million times. Authoritative appraisal by third party testing institution.
  • With servo closed loop control, can achieve 3 times current overload, strong push resistance .
  • High-resolution position feedback with 2400 lines can realize accurate positioning.

Specification

Model Number
EBS57R-A3
Certification
ce
Type
SERVO MOTOR
Torque
9.3nm
Speed(RPM)
100RPM
Continuous Current(A)
6.5A
Encoder
1000
Ratio
1:26
Nominal Speed
2000RPM
Nominal Power
130W
Poles



8
Nominal Voltage
DC 24V
Nominal Current
7.9A
Nominal Torque
0.5Nm



Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Speed Gate Motors 130 Watt Closed Loop Servo Motor 57mm Planetary Gear Motor 24V 0

FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
