Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Type: |
SERVO MOTOR, Gates |
Warranty: |
3months-1year |
Usage: |
Speed Gate Turnstile |
Protect Feature: |
Explosion-proof |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Efficiency: |
IE 2 |
Rated Voltage: |
DC 36V |
Rated Torque: |
20.8Nm |
Rated Power: |
200W |
Poles: |
8 |
Encorder: |
1000 |
Gear Ratio: |
1:40 |
Port: |
Shenzhen |
Type: |
SERVO MOTOR, Gates |
Warranty: |
3months-1year |
Usage: |
Speed Gate Turnstile |
Protect Feature: |
Explosion-proof |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Efficiency: |
IE 2 |
Rated Voltage: |
DC 36V |
Rated Torque: |
20.8Nm |
Rated Power: |
200W |
Poles: |
8 |
Encorder: |
1000 |
Gear Ratio: |
1:40 |
Port: |
Shenzhen |

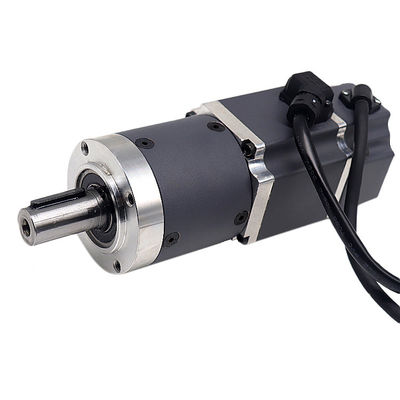

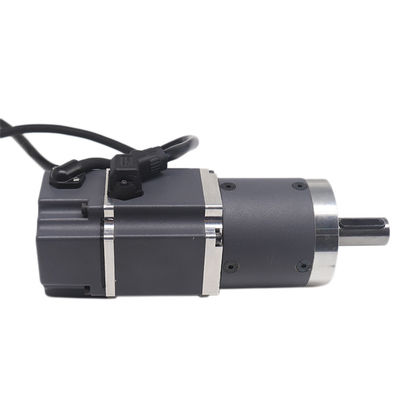

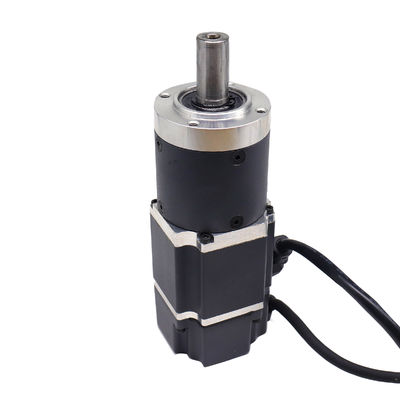

200W 36V 60mm dc servo motor work with Planetary Gear Box 75RPM 1000-line Incremental Encoder for swing barrier gate
Swing barriers gate motor EBS60F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Introduction
►3-phase low-voltage servo motor with not gearbox
►High efficiency for low energy consumption
►With encoder for motor control feedback
|
item
|
value
|
|
Warranty
|
3months-1year
|
|
Place of Origin
|
China
|
|
Brand Name
|
jiayu
|
|
Model Number
|
EBS60F-200B-30CP4Z-B7BT-S0-00
|
|
Usage
|
BOAT, Car, Home Appliance, turnstile
|
|
Certification
|
ce
|
|
Type
|
SERVO MOTOR
|
|
Torque
|
20.8Nm
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brushless
|
|
Protect Feature
|
Explosion-proof
|
|
Speed(RPM)
|
75RPM
|
|
Continuous Current(A)
|
5.5A
|
|
Efficiency
|
IE 2
|
|
Model
|
EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
|
|
Rated Voltage
|
DC 36V
|
|
Rated Current
|
5.5A
|
|
Rated Torque
|
20.8Nm
|
|
Rated Speed
|
75RPM
|
|
Rated Power
|
200W
|
|
Poles
|
8
|
|
Encorder
|
1000
|
|
Gear Ratio
|
1:40
|
|
Type
|
Gates
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
