Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: JY-DZ-CB-01
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Model: |
JY-DZ-CB-01 |
Output Power: |
120W |
Voltage: |
Dc24v |
Rated Current: |
6A |
Motor Rated Speed: |
1500r/min |
Drop Time: |
0.3s-0.8s |
Spindle Output Torque: |
1.5kgf.m |
Insulation Grade: |
F |
Levels Of Protection: |
IP44 |
Origin: |
China |
Model: |
JY-DZ-CB-01 |
Output Power: |
120W |
Voltage: |
Dc24v |
Rated Current: |
6A |
Motor Rated Speed: |
1500r/min |
Drop Time: |
0.3s-0.8s |
Spindle Output Torque: |
1.5kgf.m |
Insulation Grade: |
F |
Levels Of Protection: |
IP44 |
Origin: |
China |

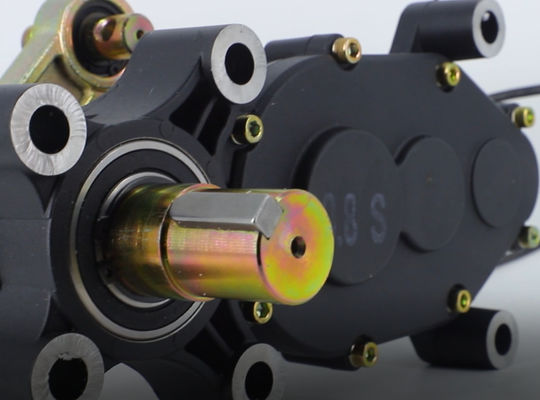

Good quality DC 24V motor with encoder mechanism for boom barrier gate
Description
JY-DZ-CB-01/02/03/04 BOOM barrier gate mechanisn work with servo controller suitable for Vehicle Barriers for parking lot, parking garage, office buildings, industrial parks and residential communities etc.
Advantages
►Long lifecycle . Reduced operating costs
►Installation for independent or simultaneous operation
►Quiet and harmonious operation

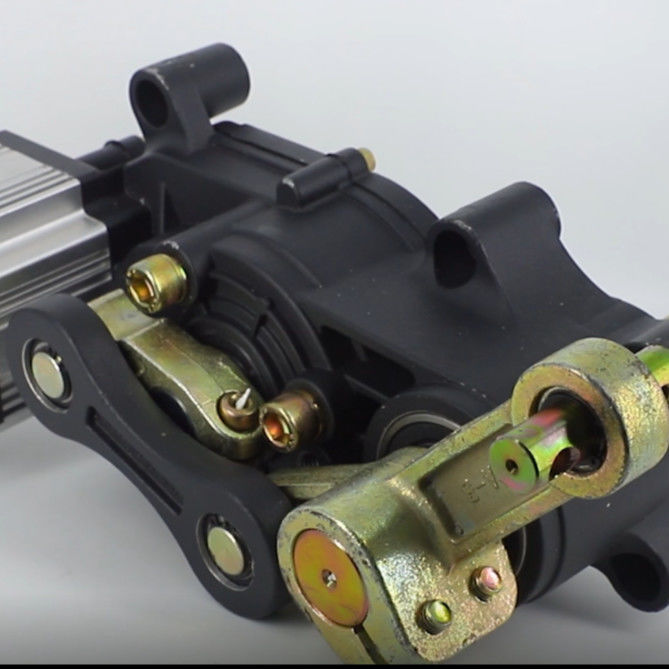

1) The movement adopts side stick installation, which is convenient for installation and compact in structure.
2) The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
3) The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.

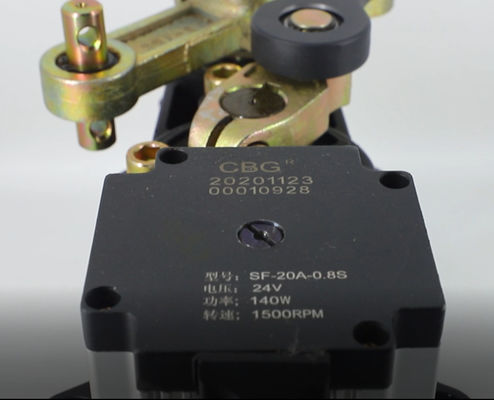

4) The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
5) DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.
Specification
| item | value |
| Warranty | 3months-1year |
| Place of Origin | China |
| Brand Name | SHENZHEN JIAYU MECHATRONIC |
| Model Number | JY-DZ-CB-03 |
| Usage | barrier gate |
| Certification | ce |
| Type | SERVO MOTOR |
| Torque | 3kgf.m |
| Protect Feature | IP44 |
| Speed(RPM) | 1500r/min |
| Continuous Current(A) | 6A |
| model | JY-DZ-CB-03 |
| output power | 120W |
| voltage | DC 24V |
| Rated current | 6A |
| Motor rated speed | 1500r/min |
| Drop time | 0.3s-0.8s |
| Spindle output torque | 1.5kgf.m |
| insulation grade | F |
| levels of protection | IP44 |
| Origin | China |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days
