1000ppr Encoder DC24V 200W Barrier Gate Motor With Gear Box 2500rpm

Brand Name:	Jiayu
Model Number:	GEBS60F-200B-30CP4Z-B7BT-S0-00
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Type:

SERVO MOTOR

Usage:

Speed Gate Turnstile

Construction:

Permanent Magnet

Protect Feature:

Explosion-proof

Warranty:

3months-1year

Speed(RPM):

2500 Rpm

Continuous Current(A):

5.5 A

Efficiency:

IE 4

Working Temperature:

-20℃ ~ 55℃

Application:

For Swing Gate / Flap Gate / Sliding Gate Etc

Supply Ability:

500pcs per month

Highlight:

DC24V 200W Barrier Gate Motor

1000ppr Encoder Barrier Gate Motor

Motor With Gear Box 2500rpm

Product Description

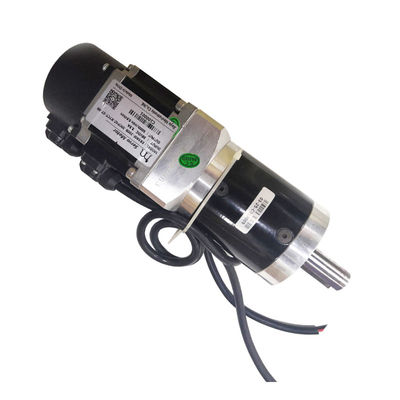

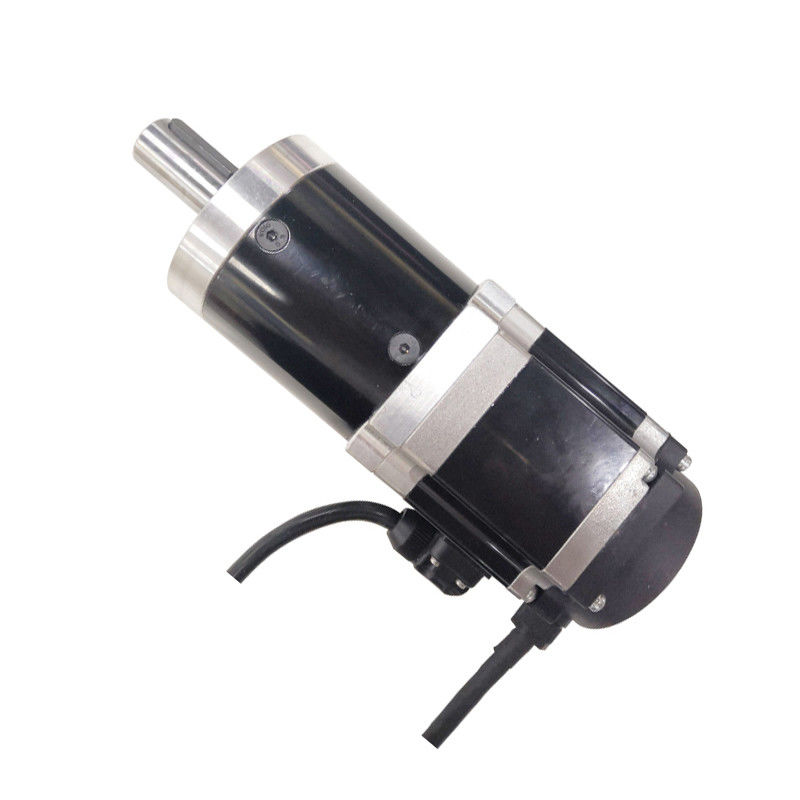

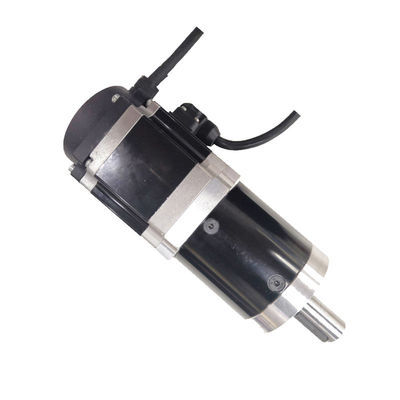

Planetary 60mm DC24V 200W Access gate servo motor with Gear Box 2500rpm 1000ppr Encoder 1:50 Reduction Ratio

Feature:

►Maximum outer diameter 60mm, motor and reducer split, suitable for channel gate movement structure;

► Comes with a 1000-line incremental encoder with an optional 1:50 reduction ratio to achieve high-precision control of the movement of the movement;

Specification

Motor Model	GEBS60F-200B-30CP4Z-B7BT-S0-00
Nominal Voltage	24 VDC
Nominal Power	200 W
Nominal Current	5.5 A
Nominal Speed	2500 rpm
Encoder Resolution	1000 ppr
Norminal Torque	0.64 N.m
Maximum Torque	1.92 N.m
Poles	8
Gear Box Model	GJYPNE60-50-F-B3-02
Reduction Ratio	50:1
Nominal Torque	36 N.m
Maximum Torque	72 N.m
Axial Load	230 N
Radial Load	265 N
Backlash	< 16 arcmin
Average Lifetime	20000 Hours
Noise	< 58 dB

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
