24V 12A DC Servo Motor Drive with RS232/RS485/CAN Communication and Optocoupling Isolation for Location Mode Control

Brand Name:	Jiayu
Model Number:	GL11-10612-AT-CO-00(CANopen/RS232,ABS INC)
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Input Voltage:

24 ~ 80 VDC

Continuous/peak Current:

12A / 36A

Encoder Feedback:

Absolute

Communication Interface:

RS232/RS485/CAN

Digital Input/output:

4 In 2 Out, Optocoupling Isolation

Special Interface:

Special Interface

Control Mode:

Location Mode/ Internal Location

Working Temperature:

-25℃ ~ 70℃

Supply Ability:

500pcs per month

Highlight:

24V 12A DC Servo Motor Drive

Medical Instruments DC Servo Motor Drive

DC Servo Drive With Absolute Encoder

Product Description

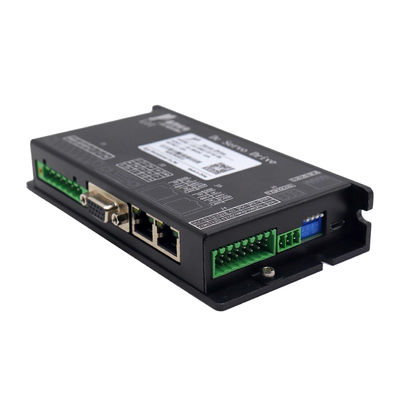

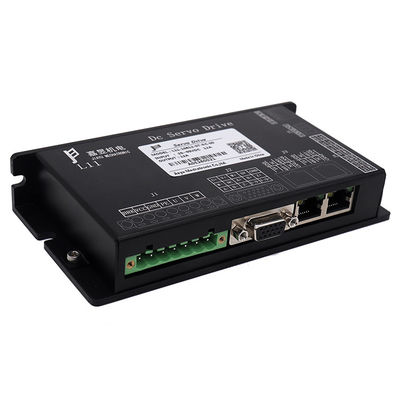

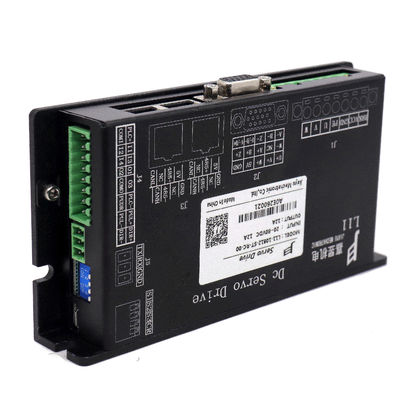

Medical Instruments 24V 12A DC Servo Motor Drive With Absolute Encoder

DC Servo Motor Drive 24V 12A with absolute encoder for medical instruments

Key Features

Adapt to AC servo motor below 400W, support incremental and absolute encoder
Support position control, speed control, torque control and single axis control mode
RS485/CANopen bus communication, can be used for multi-axis equipment control

Technical Specifications

Model Number	GL11-1-06-12-ST-CO-00
Input voltage	24 ~ 80 VDC
Continuous/peak current	12A / 36A
Encoder feedback	Incremental
Communication interface	RS232/RS485/CAN
Digital input/output	4 in 2 out, optocoupling isolation
Special interface	special interface
Computer software	Support
Control mode	Location mode/ internal location
Product name	SERVO DRIVE
Working temperature	-25℃ ~ 70℃

Matching Functions

Modbus serial communication protocol (RS232/RS485)
The upper computer software with oscilloscope function can modify parameters and monitor debugging
Provide serial port burning download tools, support online remote serial port upgrade

Company Profile

Shenzhen Jiayu Mechatronic CO., Ltd is a high-tech enterprise with multiple invention patents and software copyrights.

Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In this area, tens of thousands of products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia.

In the future, the company will focus more on the improvement of product performance and quality.

Application

Frequently Asked Questions

Are you Factory or Trader?

We are factory, and have professional R&D team as introduced in company information.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

What can you buy from us?

Access servo drive, speed gate drive, turnstile controller, swing gate drive, barrier gate controller, servo motor, mechanism.

Why should you buy from us not from other suppliers?

We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement.

What is your after-sale service?

Free maintenance within 12 months guarantee, lifetime consultant, Professional solutions in installation and maintenance.

Do you get the relevant certifications?

All products are made according to ISO9001, CE requirements.

How about the delivery?

Sample: 3-5 days; Bulk order: 15-30 days
