Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: L11-1-06-12-ST-CO-00
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Product Name: |
L11-10612-ST-RC Servo Drive |
Working Temperature: |
-25℃ ~ 70℃ |
Control Mode: |
Position Mode/Internal Position |
Dial Switch Setting: |
4 Bits |
Matching Motor Power: |
Under 400W |
Impulse Input: |
Support |
Special Interface: |
1 For Holding Brake Output |
Working Humidity: |
90%, No Condensation |
Product Name: |
L11-10612-ST-RC Servo Drive |
Working Temperature: |
-25℃ ~ 70℃ |
Control Mode: |
Position Mode/Internal Position |
Dial Switch Setting: |
4 Bits |
Matching Motor Power: |
Under 400W |
Impulse Input: |
Support |
Special Interface: |
1 For Holding Brake Output |
Working Humidity: |
90%, No Condensation |

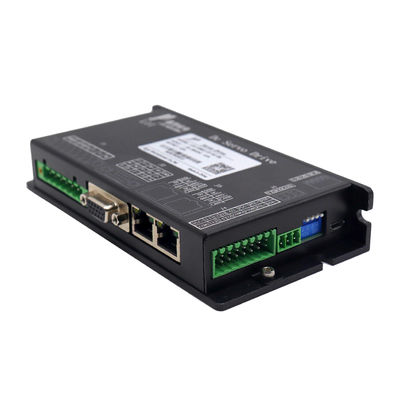

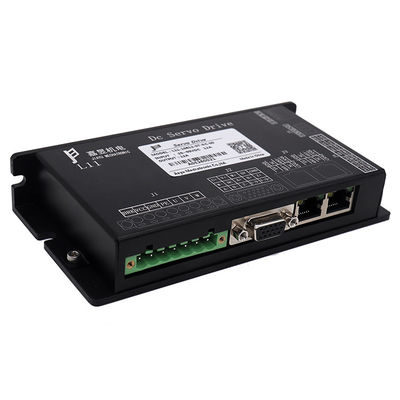

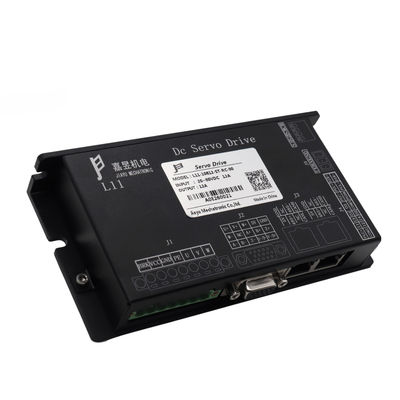

24V/ 80 V DC Low voltage servo drive for industry Robot
② Over-current protection
③ Encoder disconnection protection
► Modbus serial communication protocol(RS232/RS485);
► The upper computer software with oscilloscope function canmodify parameters and monitor debugging;
► Provide serial port burning download tools,support online remote serial port up grade;
② Robot
③ AGV
④ medical instruments
⑤ 3C equipment
⑥ textiles machine
⑦ packaging machine
Specification
| Brand name | Jiayu |
| Products name | Low voltage servo drive |
|
Certification
|
CE ROHS
|
|
Input voltage
|
24 ~ 80 VDC
|
|
Continuous/peak current
|
12A / 36A
|
|
Encoder feedback
|
Incremental
|
|
Communication interface
|
RS232/RS485/CAN
|
|
Digital input/output
|
4 in 2 out, optocoupling isolation
|
|
special interface
|
One way output
|
|
Control mode
|
Location mode/ internal location
|
|
Working humidity
|
90%,No condensation
|
|
Working temperature
|
-25℃ ~ 70℃
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days
