DC Servo Drive
>
Low Voltage DC 24V 12A Servo Drive With Incremental Encoder

Low Voltage DC 24V 12A Servo Drive With Incremental Encoder

Brand Name: Jiayu
Model Number: L11-10612-ST-RC-00(RS485+RS232,CAN,INC ENC)
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Input Voltage:
24 ~ 80 VDC
Continuous/peak Current:
12A / 36A
Encoder Feedback:
Incremental
Communication Interface:
RS232/RS485/CAN
Digital Input/output:
4 In 2 Out, Optocoupling Isolation
Computer Software:
Support
Control Mode:
Location Mode/ Internal Location
Working Temperature:
-25℃ ~ 70℃
Supply Ability:
500pcs per month
Highlight:

Low Voltage Servo Drive 24V 12A

,

Low Voltage 24V DC Servo Drive

,

24V 12A DC Servo Drive

Product Description
DC Servo Drive 24v 12 A low voltage servo drive with incremental encoder for feedback
Features of DC Servo Motor Drive
① Adapt to AC servo motor below 400W,support incremental and absolute encoder;
② Support position control, speed control, torque control and single axis control mode;
③ RS485/CANopen bus communication,can beused for multi-axis equipment control;

Advantages of DC Servo Motor Drive

① New generation algorithm design, fast response of speed loop

② Support RS232, RS485, CAN, CANOPEN, etc communication

③ The motor winding protects the power supply from short circuit

④ Supports internal 8-segment position control, testing a single movement without programming.

⑤ CAN CANOPEN uses an isolated circuit

⑥ Bus over-voltage protection





Application of DC Servo Motor Drive
① Logistics sorting

② Robot

③ AGV

④ medical instruments

⑤ 3C equipment

⑥ textiles machine

⑦ packaging machine

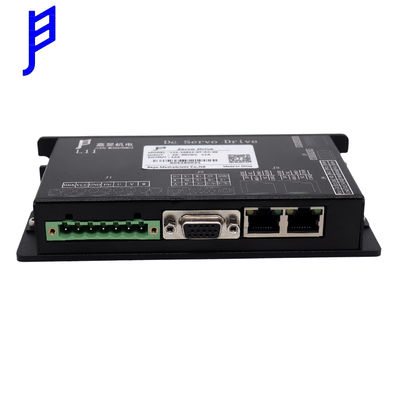

Low Voltage DC 24V 12A Servo Drive With Incremental Encoder 1

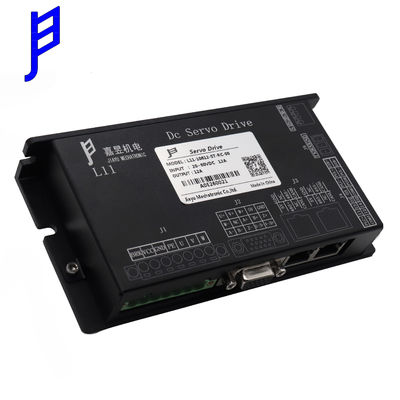

Low Voltage DC 24V 12A Servo Drive With Incremental Encoder 3
Specification of DC Servo Drive
Model Number
L11-1-06-12-ST-CO-00
Input voltage
24 ~ 80 VDC
Continuous/peak current
12A / 36A
Encoder feedback
Incremental
Communication interface
RS232/RS485/CAN
Digital input/output
4 in 2 out, optocoupling isolation
special interface
special interface
Computer software
Support
Control mode
Location mode/ internal location
Product name
SERVO DRIVE
Working temperature
-25℃ ~ 70℃



Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.

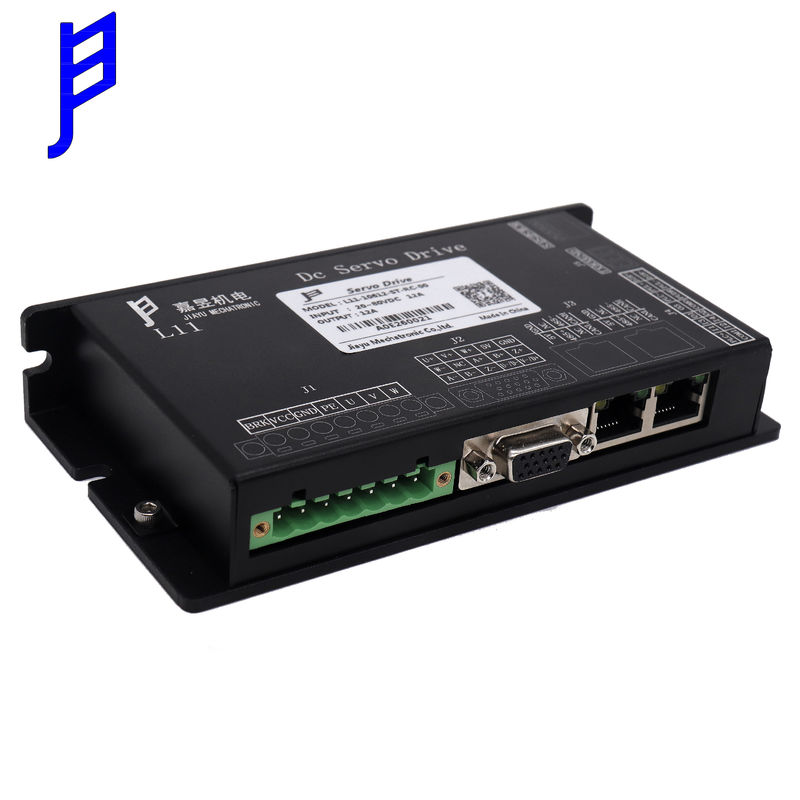

Low Voltage DC 24V 12A Servo Drive With Incremental Encoder 7
Low Voltage DC 24V 12A Servo Drive With Incremental Encoder 9


FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
