Home > products > DC Servo Motor Drive > Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine

Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: L11-1-06-12-ST-CO-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

24V DC Servo Motor Drive

,

80V DC Servo Motor Drive

,

Low Voltage Servo Drive

Warranty:
3months-1year
Input Voltage:
24 ~ 80 VDC
Continuous/peak Current:
12A / 36A
Encoder Feedback:
Incremental
Communication Interface:
RS232/RS485/CAN
Digital Input/output:
4 In 2 Out, Optocoupling Isolation
Special Interface:
One Way Output
Control Mode:
Location Mode/ Internal Location
Working Temperature:
-25℃ ~ 70℃
Product Name:
Low Voltage Servo Drive
Warranty:
3months-1year
Input Voltage:
24 ~ 80 VDC
Continuous/peak Current:
12A / 36A
Encoder Feedback:
Incremental
Communication Interface:
RS232/RS485/CAN
Digital Input/output:
4 In 2 Out, Optocoupling Isolation
Special Interface:
One Way Output
Control Mode:
Location Mode/ Internal Location
Working Temperature:
-25℃ ~ 70℃
Product Name:
Low Voltage Servo Drive
Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine

 24 V/ 80 V DC Low voltage servo drive for textiles machine


Features
① Adapt to AC servo motor below 400W,support incremental and absolute encoder;
② Support position control, speed control, torque control and single axis control mode;
③ RS485/CANopen bus communication,can beused for multi-axis equipment control;

Matching function
  • Modbus serial communication protocol(RS232/RS485);
  • The upper computer software with oscilloscope function canmodify parameters and monitor debugging;
  • Provide serial port burning download tools,support online remote serial port up grade;

Application
① Logistics sorting

② Robot

③ AGV

④ medical instruments

⑤ 3C equipment

⑥ textiles  machine

⑦ packaging machine



Specification

item
value
Warranty
3months-1year
Certification
CE ROHS
Place of Origin
China
Input voltage
24 ~ 80 VDC
Continuous/peak current
12A / 36A
Encoder feedback
Incremental
Communication interface
RS232/RS485/CAN
Digital input/output
4 in 2 out, optocoupling isolation
special interface
One way output
Control mode
Location mode/ internal location
Working humidity
90%,No condensation
Working temperature
-25℃ ~ 70℃
Product name
Low voltage servo drive

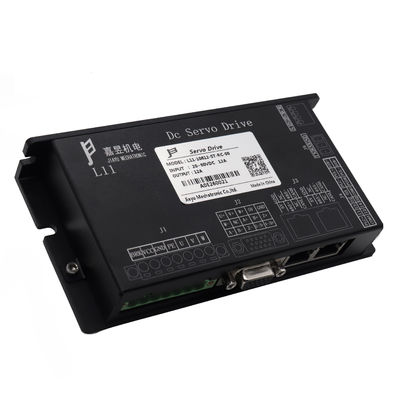

Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine 0

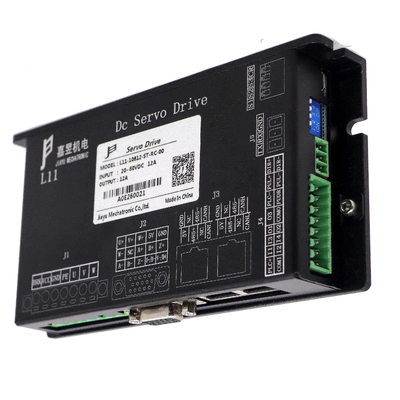

Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine 1

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

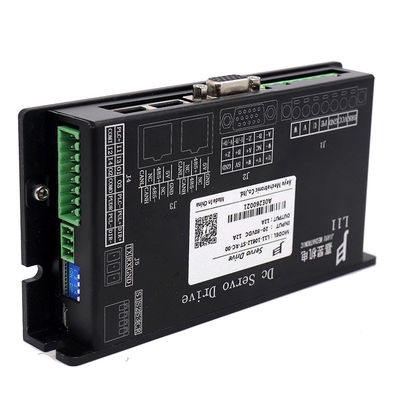

Low Voltage 24V 80V DC Servo Motor Drive For Textiles Machine 3

FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
