Home > products > High Torque DC Servo Motor > 4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines

4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS60F-84A-03DR5Z-BDKL-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

48V High Torque DC Servo Motor

,

4.8A High Torque DC Servo Motor

,

Servo Motor With Encoder 2400 Lines

Usage:
Swing Barrier Gate
Type:
SERVO MOTOR
Torque:
3nm
Speed(RPM):
280 Rpm/min
Continuous Current(A):
4.8A
Application:
For Swing Gate Turnstile
Rated Voltage:
24v
Power:
84w
Rated Speed:
280 Rpm/min
Rated Torque:
3nm
Usage:
Swing Barrier Gate
Type:
SERVO MOTOR
Torque:
3nm
Speed(RPM):
280 Rpm/min
Continuous Current(A):
4.8A
Application:
For Swing Gate Turnstile
Rated Voltage:
24v
Power:
84w
Rated Speed:
280 Rpm/min
Rated Torque:
3nm
4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines
84W 3NM DC48V 280RPM 2500lines servo motor for swing barrier gate

Product description
swing barriers motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Feature:
  • Square body, integrated structure of motor and reducer, suitable for passage gate movement structure;
  • The body is equipped with a 1000-line incremental encoder with a standard 1:40 reduction ratio to achieve high-precision control of movement.

Advantages

  • High performance motor
  • Modular design
  • High level water proof
  • 300mm acrylic door panel, opening time up to 0.3 seconds
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
  • High-resolution position feedback with 1000 lines can realize accurate positioning

Specification


Model Number
EBS60F-84A-03DR5Z-BDKL-ST-00
Usage
swing barrier gate
Certification
ce, RoHS
Type
SERVO MOTOR
Torque
3nm
Protect Feature
Waterproof
Speed(RPM)
280 rpm/min
Continuous Current(A)
4.8A
Product Name
dc servo motor
Application
for swing gate turnstile
Rated Voltage
24v
Power
84w
Rated speed
280 rpm/min
Poles
5
Rated torque
3nm

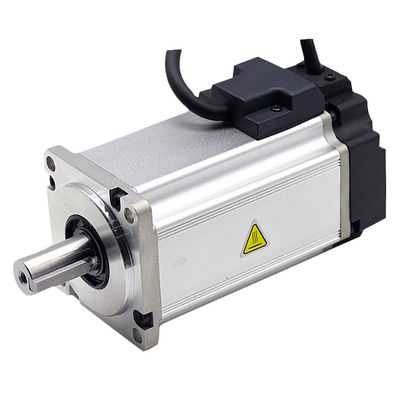

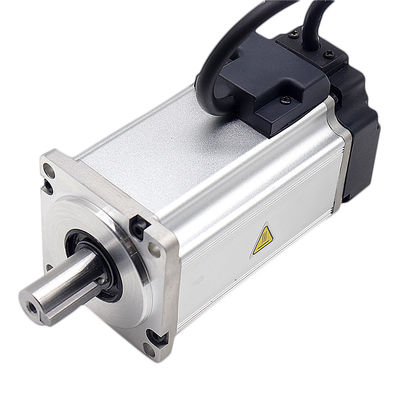

4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines 14.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines 2

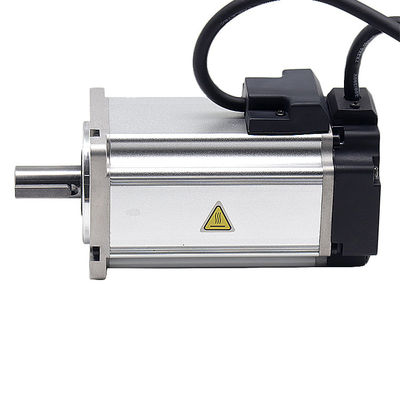

4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines 3



Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

4.8A 48V High Torque DC Servo Motor With Encoder 2400 Lines 4
