IE2 5.5NM Output Torque DC Servo Motor with D Type Motor Shaft for Swing Barrier Gates

Brand Name:	Jiayu
Model Number:	GMBS70ZF-40A-1836
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Usage:

Bldc Servo Motor For Swing Barrier Gate

Type:

Brushless Motor

Speed(RPM):

1800rpm

Continuous Current(A):

Efficiency:

Rated Current:

Rated Voltage:

Rated Power:

Supply Ability:

500pcs per month

Highlight:

40W Brushless Servo Motor

1800rpm Brushless Servo Motor

IE2 24 Volt Servo Motor

Product Description

1800rpm 40W Brushless Servo Motor IE2 24 Volt Servo Motor

Product Overview

1800rpm 40W Brushless servo motor works with 24V power supply for speed gate turnstile applications. The GMBS70ZF series is designed for swing barrier gates, speed gates, and tripod turnstiles to control pedestrian access.

Key Features

40W Brushless servo motor operates with 24V power supply
High-resolution position feedback with 2400-line encoder (12,000 pulses per turn)
Compact design: 70mm width with double movement structure (140mm total width)
D-type motor shaft with 30mm thickness for durability
Rated speed with 1:36 reduction ratio and 5.5NM output torque
High-strength butterfly inner gear for impact resistance
Servo overload capability (2x current overload) with strong push resistance

Technical Specifications

Item	Value
Model Number	GMBS70ZF-40A-1836
Type	Brushless Motor
Torque	0.21NM
Rated Speed	1800rpm
Reduction Ratio	1:36
Encoder Lines	2400 lines
Working Temperature	-25°C to 55°C
Service Life	>5000 hours
Protection	Drip-proof
Warranty	3 months - 1 year

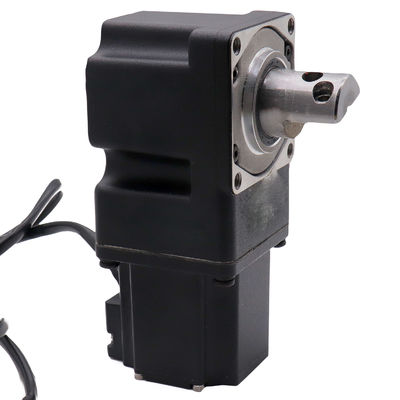

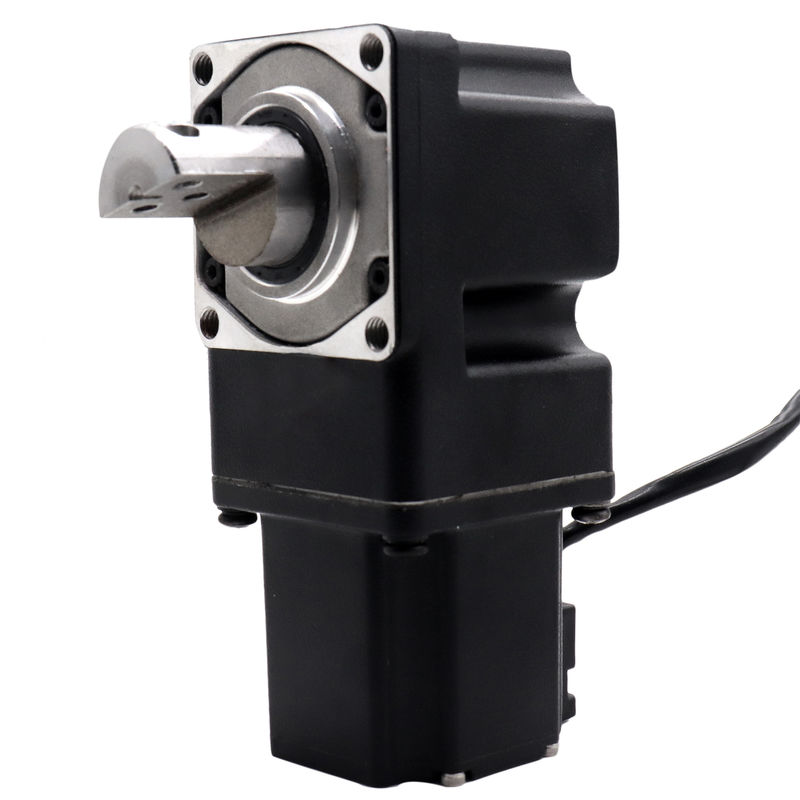

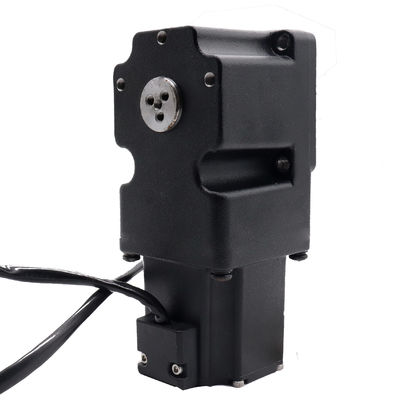

Product Images

Manufacturer Information

Shenzhen Jiayu Mechatronic CO., Ltd is a high-tech enterprise with multiple invention patents and software copyrights in servo drive and channel gate control technology. Specializing in R&D, production, and sales of automatic gate control modules, Jiayu provides professional solutions for the gate control industry.

Frequently Asked Questions

Are you a factory or trader?

We are a factory with a professional R&D team as introduced in our company information.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment.

What products do you offer?

We provide access servo drives, speed gate drives, turnstile controllers, swing gate drives, barrier gate controllers, servo motors, and mechanisms.

What is your competitive advantage?

We hold multiple invention patents and software copyrights in servo drive and channel gate control technology, with dedicated R&D, production, and comprehensive pre-sales and after-sales services.

What is your after-sale service?

We offer free maintenance within 12 months guarantee, lifetime consultation, and professional installation and maintenance solutions.

Do you have relevant certifications?

All products are manufactured according to ISO9001 and CE requirements.

How about delivery times?

Samples: 3-5 days; Bulk orders: 15-30 days.
