23NM 24V DC Servo Motor with Gear Box IE 2 Efficiency and 6A Continuous Current for Swing Barrier Gate

Brand Name:	Jiayu
Model Number:	GEBS59R-A6
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Torque:

0.5nm

Speed(RPM):

41RPM

Continuous Current(A):

Efficiency:

Rated Voltage:

Rated Power:

Continuous Rated Speed:

2000rpm

Continuous Rated Torque:

0.5nm

Continuous Rated Current:

Peak Current:

Output Speed:

41RPM

Output Torque:

Supply Ability:

500pcs per month

Highlight:

23NM 24V Low Voltage Servo Motor

24V Servo Motor With Gear Box

EBS59R-A6

Product Description

23NM 24V Low Voltage Servo Motor With Gear Box GEBS59R-A6

Product Overview

DC 24V 100W 2400 lines encoder servo motor with gear box for swing barrier gate

Key Features

High-resolution position feedback with 2400 lines for accurate positioning
Service life ≥6 million cycles (third-party verified)
300mm acrylic door panel with 0.3s opening time
Servo vector algorithm enables sensitive anti-pinch protection

Technical Specifications

Parameter	Value
Model Number	GEBS59R-A6
Rated Voltage	24V
Rated Power	100W
Continuous Rated Speed	2000rpm
Continuous Rated Torque	0.5NM
Output Torque	23NM
Output Speed	41RPM
Continuous Current	6A
Peak Current	12A
Efficiency	IE 2
Protection	Drip-proof
Certifications	CE, RoHS
Warranty	3 months - 1 year

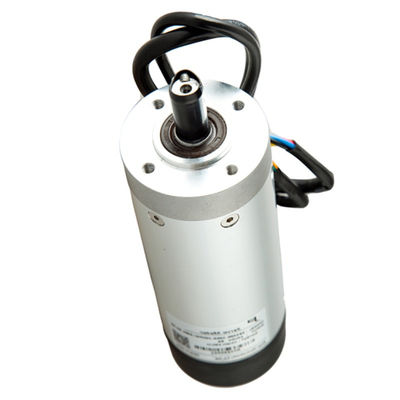

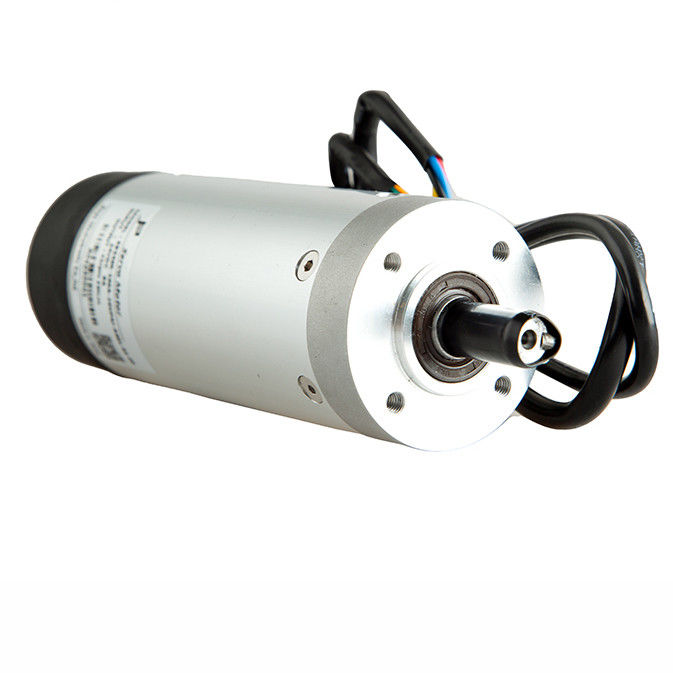

Product Images

Manufacturer Profile

Shenzhen Jiayu Mechatronic CO., Ltd is a high-tech enterprise with multiple invention patents and software copyrights in servo drive and channel gate control technology. As a leading module supplier in the domestic gate control industry, Jiayu specializes in R&D, production, and sales of automatic gate control movement core modules, providing professional product solutions.

Frequently Asked Questions

Are you a factory or trader?

We are the factory with a professional R&D team.

How do you guarantee quality?

Pre-production samples before mass production; final inspection before shipment.

What products do you offer?

Servo drives, speed gate drives, turnstile controllers, swing gate drives, barrier gate controllers, servo motors, and mechanisms.

What is your after-sales service?

12-month free maintenance, lifetime consultation, and professional installation/maintenance solutions.

What certifications do you have?

All products comply with ISO9001 and CE requirements.

What are your delivery times?

Samples: 3-5 days; Bulk orders: 15-30 days.
