Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: MBS70F,X50
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Warranty: |
3months-1year |
Usage: |
Swing Gate Sliding Door |
Type: |
Brushless Motor |
Torque: |
3NM |
Construction: |
Permanent Magnet |
Commutation: |
Brushless |
Protect Feature: |
Drip-proof |
Speed(RPM): |
100RPM |
Continuous Current(A): |
3A |
Efficiency: |
Ie 3 |
Rated Voltage: |
24V |
Rated Power: |
60W |
Continuous Rated Speed: |
3000RPM |
Continuous Rated Torque: |
0.19NM |
Continuous Rated Current: |
3.8A |
Peak Current: |
7.6A |
Output Speed: |
60RPM |
Output Torque: |
6.97NM |
Encoder Resolution: |
12000PPR |
Name: |
BLDC SERVO MOTOR |
Warranty: |
3months-1year |
Usage: |
Swing Gate Sliding Door |
Type: |
Brushless Motor |
Torque: |
3NM |
Construction: |
Permanent Magnet |
Commutation: |
Brushless |
Protect Feature: |
Drip-proof |
Speed(RPM): |
100RPM |
Continuous Current(A): |
3A |
Efficiency: |
Ie 3 |
Rated Voltage: |
24V |
Rated Power: |
60W |
Continuous Rated Speed: |
3000RPM |
Continuous Rated Torque: |
0.19NM |
Continuous Rated Current: |
3.8A |
Peak Current: |
7.6A |
Output Speed: |
60RPM |
Output Torque: |
6.97NM |
Encoder Resolution: |
12000PPR |
Name: |
BLDC SERVO MOTOR |

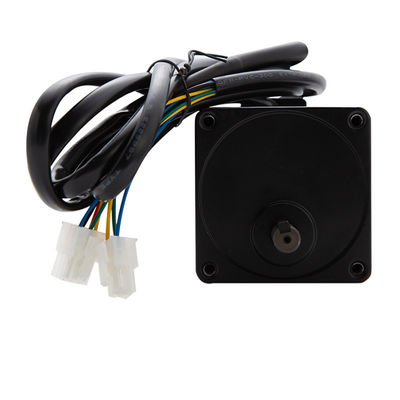

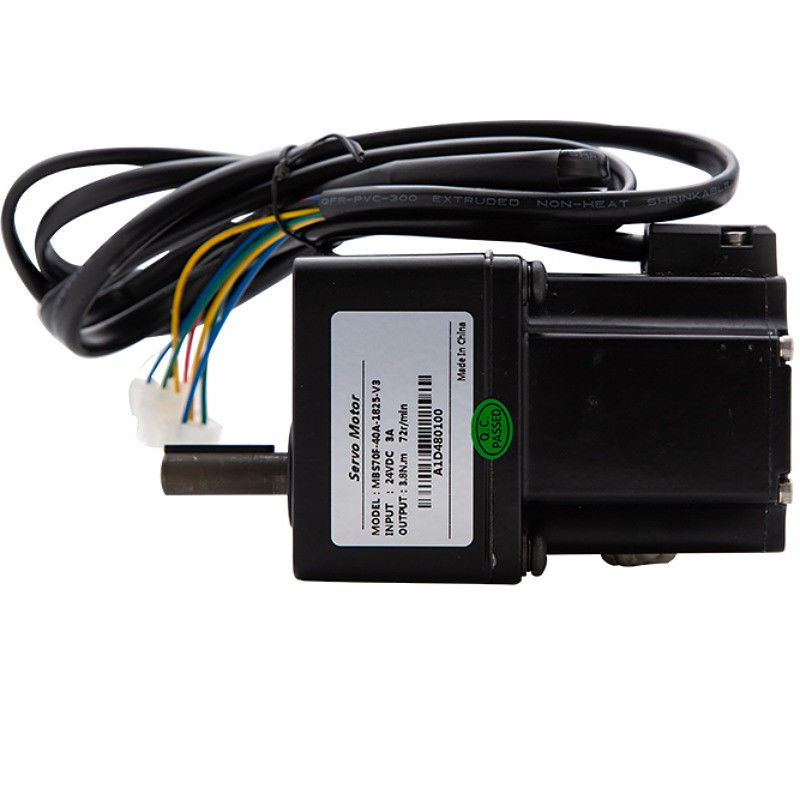

►3-phase low-voltage servo motor with gearbox
►High efficiency for low energy consumption
►With encoder for motor control feedback
►Use low temperature greases for gearbox
►Available in reduction ratio, 1:18 & 1:25& 1:50
Application
① Airports
② Ports
③ Railway station
④ Subway station
⑤ Bus station
⑥ Commercial building
⑦ Residential communities
⑧ School
⑨ Expressway station
| Item | value |
| Warranty | 3months-1year |
| Place of Origin | China |
| Brand Name | jiayu |
| Model Number | MBS70F-40A-1818-V3 |
| Usage | BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument |
| Certification | ce |
| Type | SERVO MOTOR |
| Torque | 3NM |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Drip-proof |
| Speed(RPM) | 100RPM |
| Continuous Current(A) | 3A |
| Efficiency | Ie 3 |
| Rated voltage | 24V |
| Rated power | 40W |
| Continuous rated speed | 1800RPM |
| Continuous rated torque | 0.21NM |
| Continuous rated current | 3A |
| Peak current | 6A |
| Output speed | 100RPM |
| Output torque | 3NM |
| Encoder resolution | 12000PPR |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
