DC Servo Motor
>

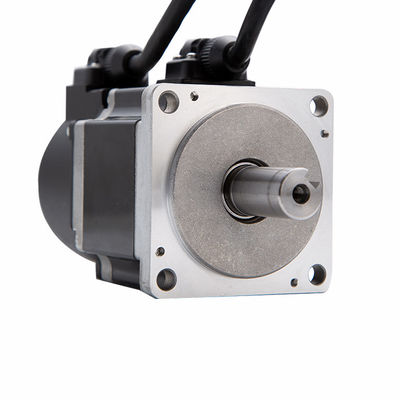

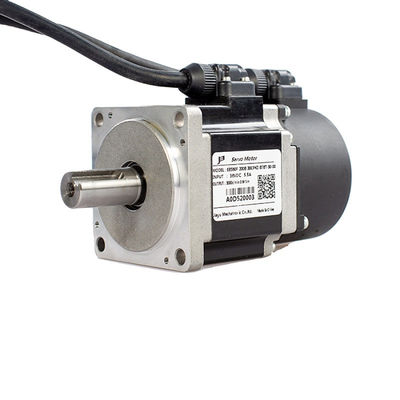

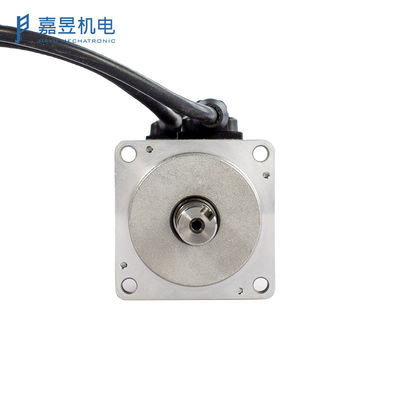

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate

Brand Name: Jiayu
Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Type:
SERVO MOTOR
Torque:
20.8Nm
Speed(RPM):
75RPM
Rated Voltage:
DC 36V
Rated Current:
5.5A
Rated Speed:
75RPM
Rated Power:
200W
Poles:
8
Encorder:
1000
Gear Ratio:
1:40
Supply Ability:
500pcs per month
Highlight:

20.8Nm DC Servo Motor

,

75RPM DC Servo Motor 200W

,

encoder servo motor 200W

Product Description

Incremental Encoder dc servo motor 20.8Nm 200W 75RPM with 1:40 for swing barrier gate



Products description

swing barriers gate motor EBS60F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Features:
● Maximum outer diameter 60mm, motor and reducer split, suitable for channel gate movement structure;
● Comes with a 1000-line incremental encoder with an optional 1:50 reduction ratio to achieve high-precision control of the movement of the
movement;

Specification
Model Number
EBS60F-200B-30CP4Z-B7BT-S0-00
Type
SERVO MOTOR
Torque
20.8Nm
Speed(RPM)
75RPM
Efficiency
IE 4
Rated Voltage
DC 36V
Rated Current
5.5A
Rated Torque
20.8Nm
Rated Speed
75RPM
Rated Power
200W
Poles
8
Encorder
1000
Gear Ratio
1:40
Keywords
With encoder for motor control feedback



Dimension



Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate 0

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate 1

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate 2

Application

① swing gate at Airports

② speed gate at Ports

③ Railway station sliding gate

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate 3









Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Encoder 75RPM 20.8Nm DC Servo Motor 200W For Swing Barrier Gate 4

FAQ

1. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.

3. How about the lead time?
Normally we have stock for the hot sale models of standard products.

Regular products need 3-5 working days. The customized products need 10-15 working days.

4. How long is your warranty period?
One-year guarantee & Life-time technology support.
