Product Details
Place of Origin: China
Brand Name: JIAYU
Certification: CE
Model Number: EBS60F
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: pakeage
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Usage: |
Swing Barrier Gate |
Type: |
SERVO MOTOR |
Speed(RPM): |
3000RPM |
Continuous Current(A): |
5.5A |
Nominal Voltage: |
DC 36V |
Nominal Torque: |
0.64Nm |
Nominal Power: |
200W |
Poles: |
8 |
Encoder: |
1000 |
Gears: |
1:25,1:50 |
Usage: |
Swing Barrier Gate |
Type: |
SERVO MOTOR |
Speed(RPM): |
3000RPM |
Continuous Current(A): |
5.5A |
Nominal Voltage: |
DC 36V |
Nominal Torque: |
0.64Nm |
Nominal Power: |
200W |
Poles: |
8 |
Encoder: |
1000 |
Gears: |
1:25,1:50 |

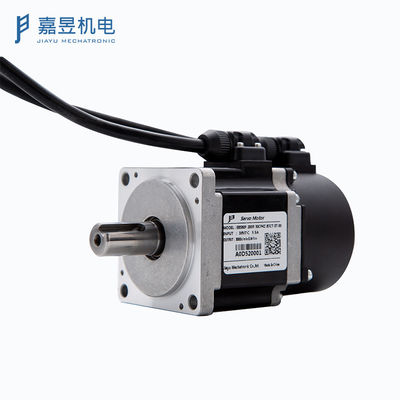

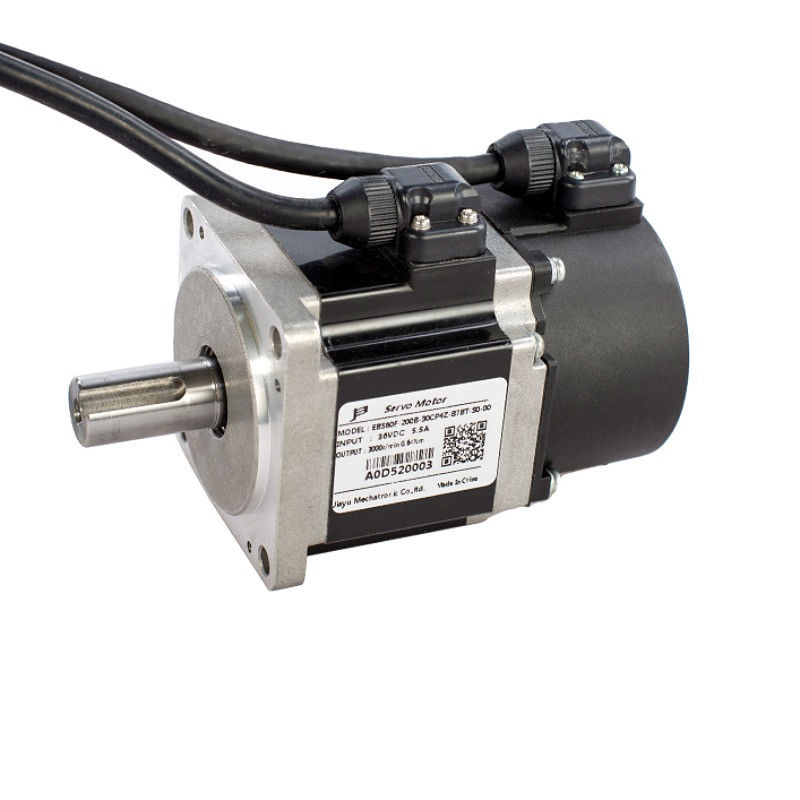

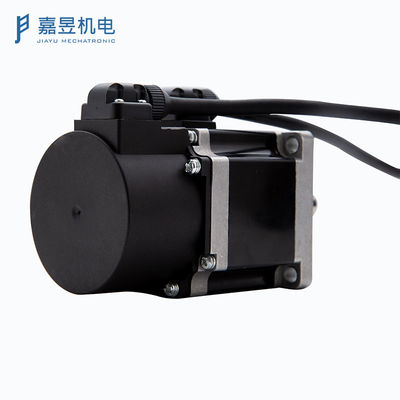

Swing barriers gate motor EBS60F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Dimension of DC Servo Motor
Specification of DC Servo Motor
|
Type
|
SERVO MOTOR
|
|
Torque
|
20.8Nm
|
|
Construction
|
Permanent Magnet
|
|
Protect Feature
|
Drip-proof
|
|
Speed(RPM)
|
75RPM
|
|
Continuous Current(A)
|
5.5A
|
|
Rated Voltage
|
DC 36V
|
|
Rated Current
|
5.5A
|
|
Rated Torque
|
20.8Nm
|
|
Rated Speed
|
75RPM
|
|
Rated Power
|
200W
|
|
Poles
|
8
|
|
Encorder
|
1000
|
|
Gear Ratio
|
1:40
|
|
Keywords
|
With encoder for motor control feedback
|
Positive feedback of DC Servo Motor
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
Partners
Q1: What is the MOQ?
A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.
Q2: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q3: How about the payment method?
A: Standard products: 30% deposit, 70% balance payment before shipment.
Q4: How about the lead time?
A: Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days. The customized products need 15-20 working days.
Q5: How long is your warranty period?
A: One-year guarantee & Life-time technology support.
