Home > products > Speed Gate Motors > 20.8Nm 60mm Small High Torque Servo Motor 75RPM With Gearbox

20.8Nm 60mm Small High Torque Servo Motor 75RPM With Gearbox

Product Details

Place of Origin: China

Brand Name: JIAYU

Certification: CE

Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: pakeage

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

60mm Small High Torque Servo Motor

,

20.8Nm Small High Torque Servo Motor

,

High Torque Servo Motor 75RPM

Type:
SERVO MOTOR
Torque:
20.8Nm
Speed(RPM):
75RPM
Continuous Current(A):
5.5A
Rated Voltage:
DC 36V
Rated Torque:
20.8Nm
Rated Power:
200W
Encorder:
1000
Rated Current:
5.5A
Rated Speed:
75RPM
Type:
SERVO MOTOR
Torque:
20.8Nm
Speed(RPM):
75RPM
Continuous Current(A):
5.5A
Rated Voltage:
DC 36V
Rated Torque:
20.8Nm
Rated Power:
200W
Encorder:
1000
Rated Current:
5.5A
Rated Speed:
75RPM

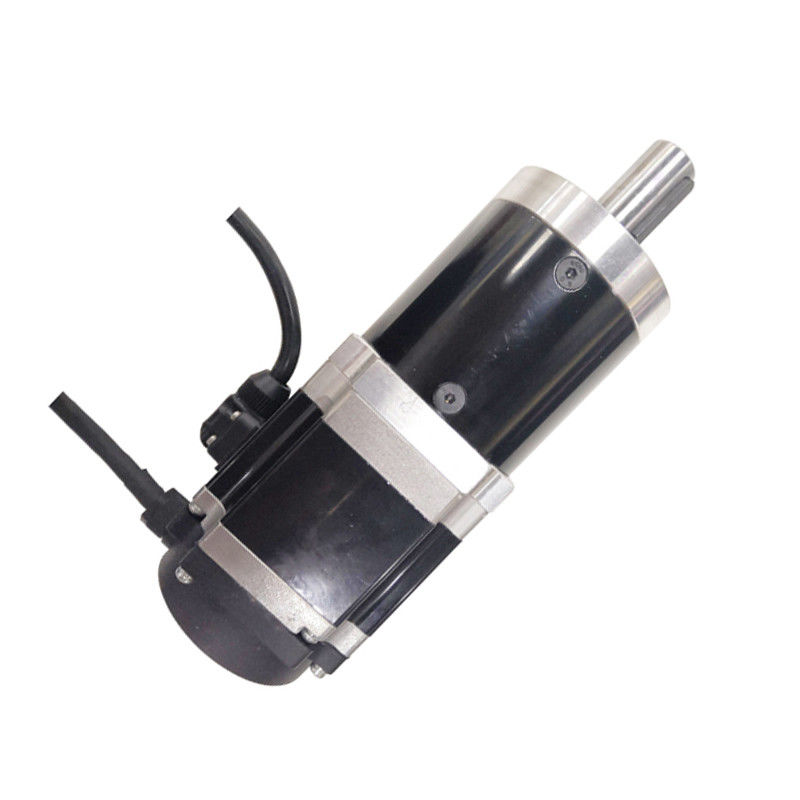

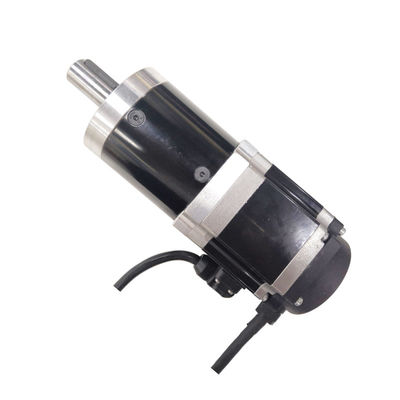

20.8Nm 60mm Small High Torque Servo Motor 75RPM With Gearbox

36V 60mm 200W DC servo motor with gear box for swing barrier gate



Products description

swing barriers servo motor with gearbox high torque series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Features

  • Super over-load capacity, overload 3 times in a short time without damage
  • No need induction switch, power on automatic reset, can accurately set the closing position
  • Convenient maintenance, with computer software, can quickly and intuitively modify and debug parameters
  • High reliability, temperature -20℃ ~ 55℃, humidity below 90% environment can also operate freely
  • With RS232, RS485 communication interface.
  • Integrated traffic logic + motor drive function, using servo control algorithm, open and close fastly and smoothly, accurately positioning;opening and closing the door without shaking



Application

① Airports

② Ports

③ Railway station

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station

20.8Nm 60mm Small High Torque Servo Motor 75RPM With Gearbox 0



Specification

Model Number
EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Certification
ce
Type
SERVO MOTOR
Torque
20.8Nm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Drip-proof
Speed(RPM)
75RPM
Continuous Current(A)
5.5A
Efficiency
IE 2
Rated Voltage
DC 36V
Rated Torque
20.8Nm
Rated Power
200W
Encorder
1000
Poles
8
Rated Current
5.5A
Rated Speed
75RPM
Gear Ratio
1:40
Product Name
Servo Motor
Application
Access gate



Dimension

20.8Nm 60mm Small High Torque Servo Motor 75RPM With Gearbox 1

 FAQ

Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.

Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.





if you have any questions, plz send an inquiry to us,or contact us online. We will reply you as soon as possible. Thank you so much!
