Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS59R-100A-20XP4J-B6EL-S1-00
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Type: |
SERVO MOTOR |
Usage: |
Swing Barrier Gate |
Warranty: |
3months-1year |
Construction: |
Permanent Magnet |
Speed(RPM): |
2000rpm |
Torque: |
23N.m |
Continuous Current(A): |
6A |
Efficiency: |
IE4 |
Rated Voltage: |
24VDC |
Rated Power: |
100Watt |
Type: |
SERVO MOTOR |
Usage: |
Swing Barrier Gate |
Warranty: |
3months-1year |
Construction: |
Permanent Magnet |
Speed(RPM): |
2000rpm |
Torque: |
23N.m |
Continuous Current(A): |
6A |
Efficiency: |
IE4 |
Rated Voltage: |
24VDC |
Rated Power: |
100Watt |

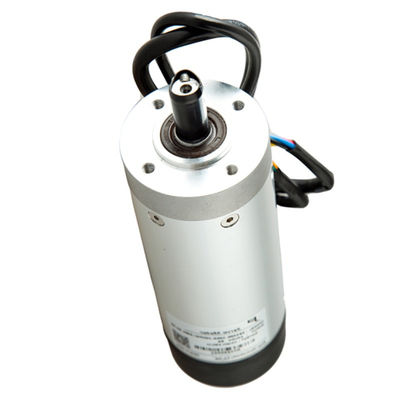

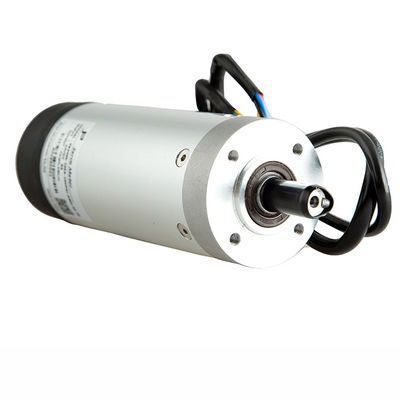

100 Watt turnstile wing gate swing gate sliding gate servo motor
►3-phase low-voltage servo motor with gearbox;
►High efficiency for low energy consumption;
►With encoder for motor control feedback;
►Use low temperature greases for gearbox;
►Available in reduction ratio, 1:20 & 1:49;
►Available in 2 wiring method.
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
JIAYU
|
|
Model Number
|
EBS59R-100A-20XP4E-B6EL-S1-00
|
|
Usage
|
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Turnstile
|
|
Certification
|
ce
|
|
Type
|
SERVO MOTOR
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brushless
|
|
Protect Feature
|

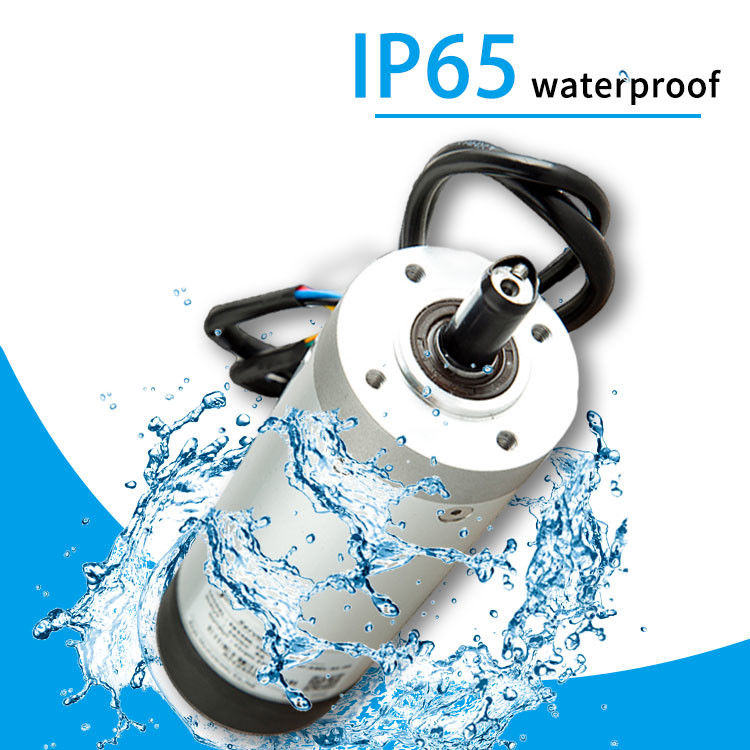

Waterproof
|
|
Speed(RPM)
|
2000rpm
|
|
Continuous rated speed
|
2000rpm
|
|
Continuous rated torque
|
0.5N.m
|
|
Continuous rated current
|
6A
|
|
Peak current
|
12A
|
|
Output speed
|
41rpm
|
|
Output torque
|
23N.m
|
|
Encoder resolution
|
9600ppr
|
|
Weight of motor
|
1.3kg
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
