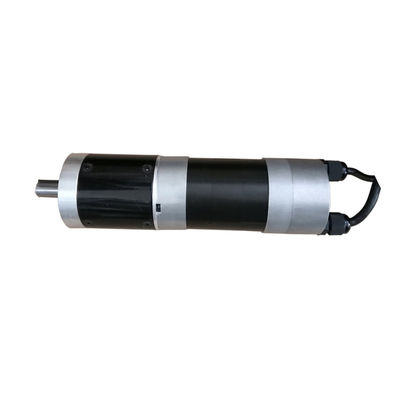

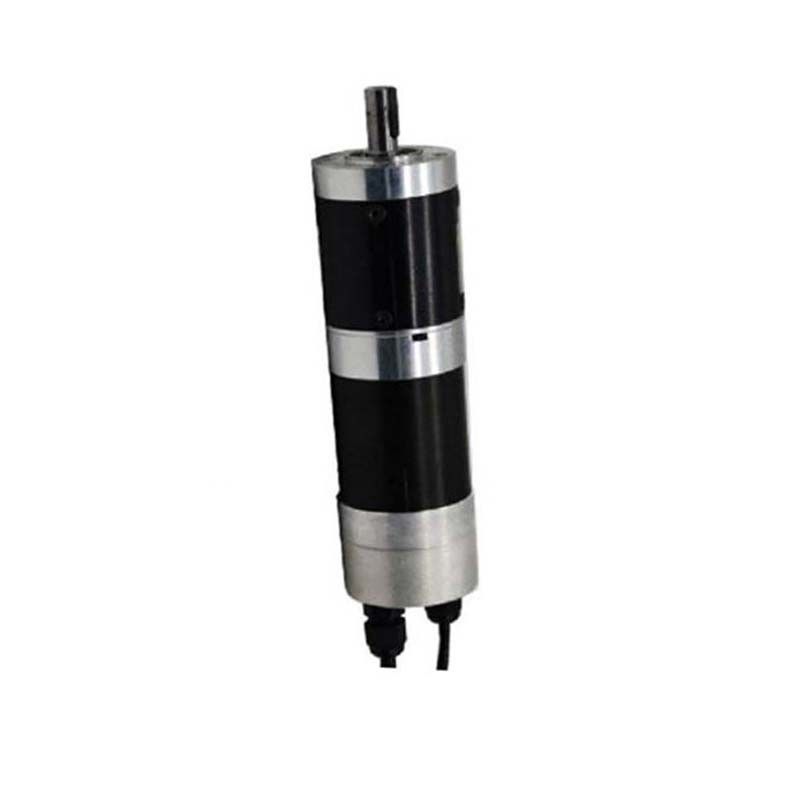

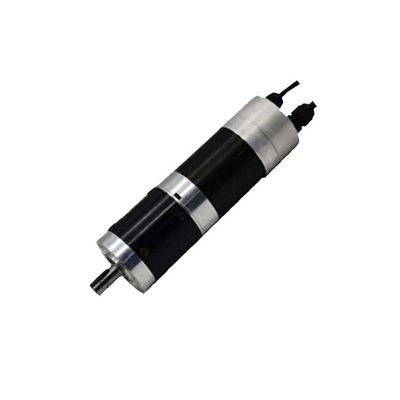

5A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox

5A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox

Brand Name: Jiayu
Model Number: EBS57R-A5
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Usage:
Swing Barrier Gate Servo Motor
Type:
SERVO MOTOR
Construction:
Permanent Magnet
Speed(RPM):
2000rpm
Nominal Voltage:
DC 24V
Nominal Current:
5A
Nominal Torque:
0.5Nm
Nominal Speed:
2000RPM
Nominal Power:
100W
Encoder:
1000
Supply Ability:
500pcs per month
Highlight:

5A 24V Dc Servo Motor High Torque

,

Planetary 24V Dc Servo Motor High Torque

,

5A 24V Servo Motor Planetary Gearbox

Product Description
DC 24 V 5 A high torque Channel Gate with brake Servo Motor for security gate Control with 1:20 Reductor encoder
EBS57R

Features:
1. Round body, motor and reducer integrated structure, suitable for channel brake movement structure;
2. Servo motor with 1000 line incremental encoder, standard 1:20 (1:49) reduction ratio, Realize high precision control of movement;
3. Servo motor can make the control of speed, accurate positioning , which is a brush, brushless motor does not have the characteristics.

Specification
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
JIAYU
Model Number
EBS57R-A5
Usage
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Certification
ce
Torque
0.5Nm
Speed(RPM)
2000rpm
Continuous Current(A)
5a
Data
EBS57R-100A-20CP4E-A5JL-S0-00
Nominal Voltage
DC 24V
Nominal Current
5A
Nominal Torque
0.5Nm
Nominal Speed
2000RPM
Nominal Power
100W
Poles
8
Encoder
1000
Gears
1:20, 1:50
5A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox 05A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox 15A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox 2
5A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox 3

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

5A 24V DC Servo Motor High Torque With Brake Servo Motor Planetary Gearbox 4

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
