24V DC Servo Motor
>

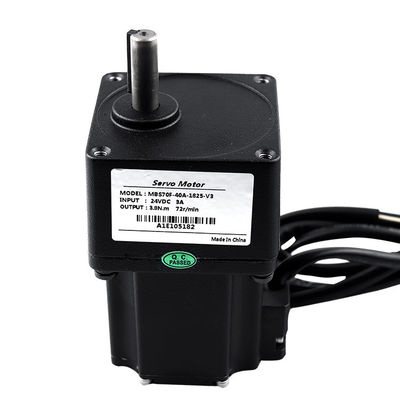

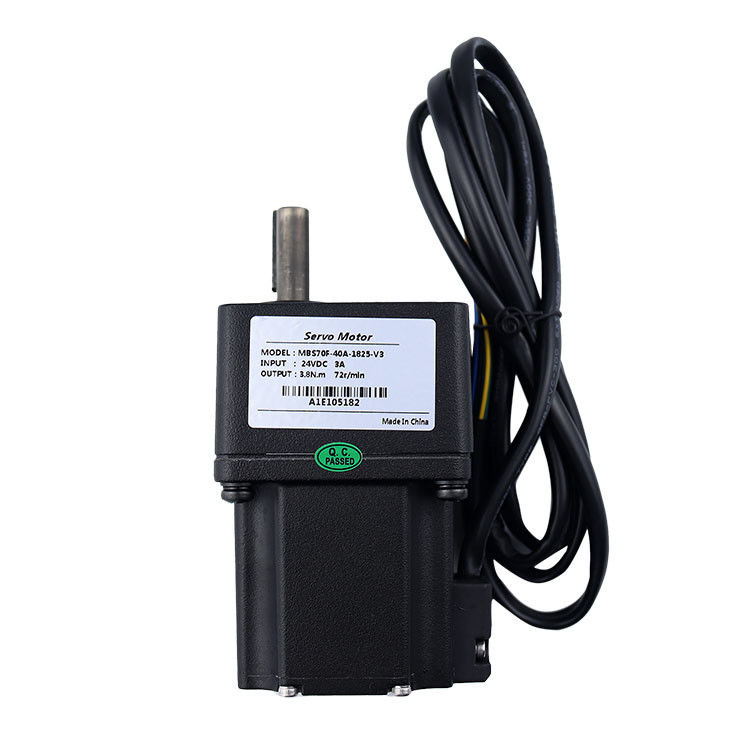

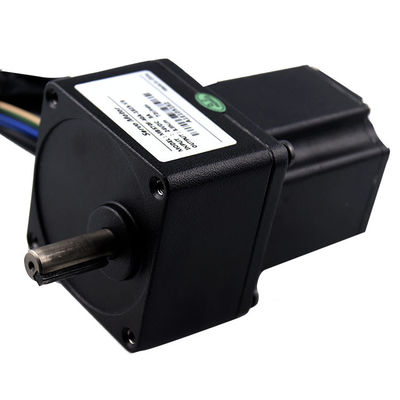

40W 1800rpm Low Voltage Bldc Servo Motor With Encoder

40W 1800rpm Low Voltage Bldc Servo Motor With Encoder

Brand Name: Jiayu
Model Number: MBS70F,X25
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Speed(RPM):
1800rpm
Efficiency:
IE 4
Rated Voltage:
DC24V
Continuous Rated Speed:
1800rpm
Rated Power:
40W
Continuous Rated Torque:
0.21N.m
Continuous Rated Current:
3A
Peak Current:
6A
Output Speed:
72rpm
Output Torque:
3.8N.m
Supply Ability:
500pcs per month
Highlight:

1800rpm Bldc Servo Motor

,

40W Bldc Servo Motor

,

0.21N.m Servo Motor With Encoder

Product Description
DC24V 40W 1800rpm 0.21N.m 3-phase low-voltage bldcservo motor with gearbox with encoder for motor control feedback for turnstile

Features

►40W 1800RPM 1:25 Brushless servo motor work with 24V power supply

►High-resolution position feedback with 2400 lines can realize accurate positioning with 12,000 pulses in a single turn

►Compared with the traditional brushless motor 40W 3000RPM + 1000 lines encoder on the door, the positioning resolution of the door panel is 125 times higher than traditional brushless motor.

►With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.

►The service life is not less than 6 million times. Authoritative appraisal by third party testing institution.

►Motor installation size compatible with traditional brushless motor, can realize fast interchange

►300mm acrylic door panel, opening time up to 0.4 seconds

►Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

►With Jiayu unique magnetic plait, 12,000 pulses can be achieved;



Advantages

►High-resolution position feedback with 2400 lines

►With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.

►300mm acrylic door panel, opening time up to 0.4 seconds

►Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

Specification
item value
Warranty 3months-1year
Place of Origin China
Brand Name JIAYU
Model Number MBS70F,X25
Usage BOAT, Car, Electric Bicycle, Home Appliance, turnstile
Certification ce
Type SERVO MOTOR
Torque 3.8N.m
Speed(RPM) 1800rpm
Continuous Current(A) 3A
Rated voltage DC24V
Rated power 40W
Continuous rated speed 1800rpm
Continuous rated torque 0.21N.m
Continuous rated current 3A
Peak current 6A
Output speed 72rpm
Output torque 3.8N.m
Encoder resolution 12000ppr
Model MBS70F,X25
40W 1800rpm Low Voltage Bldc Servo Motor With Encoder 0





40W 1800rpm Low Voltage Bldc Servo Motor With Encoder 6
40W 1800rpm Low Voltage Bldc Servo Motor With Encoder 8

40W 1800rpm Low Voltage Bldc Servo Motor With Encoder 11

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

40W 1800rpm Low Voltage Bldc Servo Motor With Encoder 13

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
