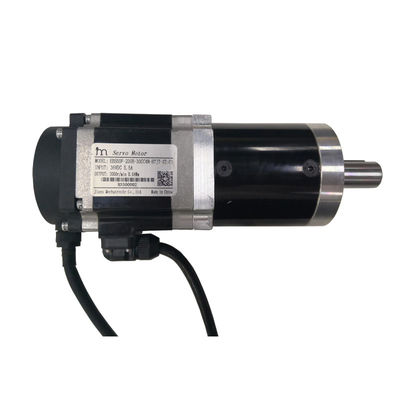

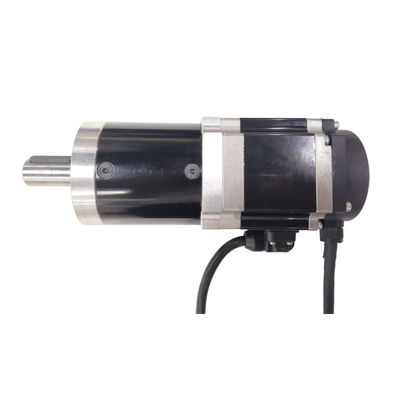

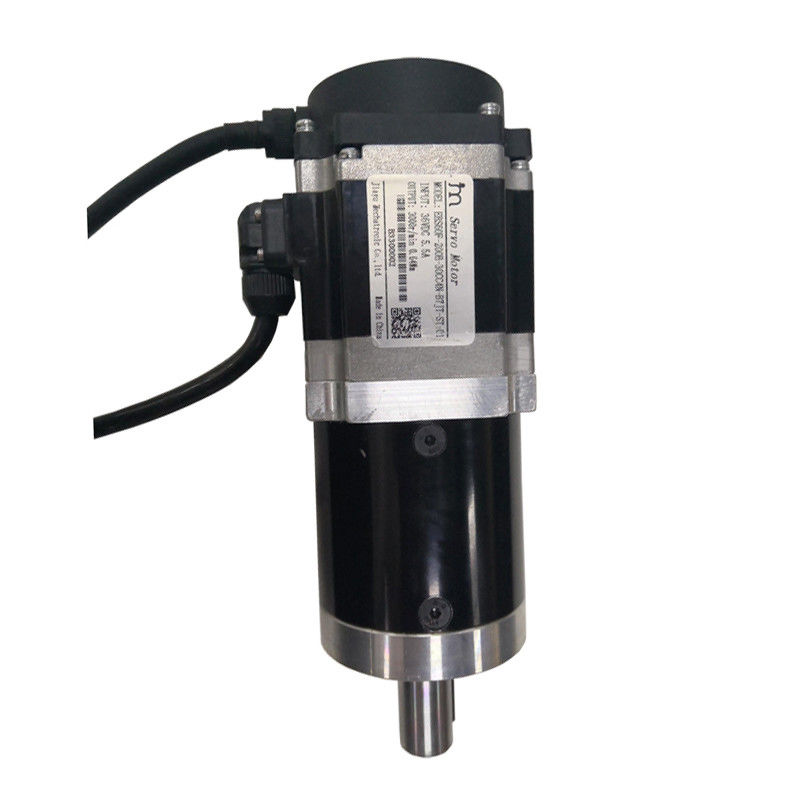

Access Control System 200W 36V 60mm servo motor 75RPM High level water proof

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

36V 60mm Servo Motor

,

200W 60mm Servo Motor

,

75RPM waterproof servo motor

Rated Voltage:
DC 36V
Rated Current:
5.5A
Rated Torque:
20.8Nm
Rated Speed:
75RPM
Rated Power:
200W
Poles:
8
Encorder:
1000
Gear Ratio:
1:40
Rated Voltage:
DC 36V
Rated Current:
5.5A
Rated Torque:
20.8Nm
Rated Speed:
75RPM
Rated Power:
200W
Poles:
8
Encorder:
1000
Gear Ratio:
1:40
Access Control System 200W 36V 60mm servo motor 75RPM High level water proof

access control system servo motor with Planetary Gear Box 75RPM 1000-line Incremental Encoder 200W 36V 60mm for Channel Gate



Feature:
  • Square body, integrated structure of motor and reducer, suitable for passage gate movement structure;
  • The body is equipped with a 1000-line incremental encoder with a standard 1:40 reduction ratio to achieve high-precision control of movement.


Products description

swing barriers servo motor with gearbox high torque series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Advantages

  • High performance motor
  • Modular design
  • High level water proof
  • 300mm acrylic door panel, opening time up to 0.3 seconds
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
  • High-resolution position feedback with 1000 lines can realize accurate positioning

Specification

Model
EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Rated Voltage
DC 36V
Rated Current
5.5A
Rated Torque
20.8Nm
Rated Speed
75RPM
Rated Power
200W
Poles
8
Encorder
1000
Gear Ratio
1:40

Dimension



Access Control System 200W 36V 60mm servo motor 75RPM High level water proof 1









About us

Our factory has 16 years experience in manufacturing Automatic speed gates and road barrier parts in various types and with different access control system applications.We accpet small order and would serve customize service for clients upon special requests. You may talk with us anytime, we would feedback as soon as possible.

Access Control System 200W 36V 60mm servo motor 75RPM High level water proof 3

FAQ

Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.

Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.
