Home > products > Small DC Servo Motor > Small DC Servo Motor 59mm Access Small 100w 2000RPM For Channel Gate Pedestrian

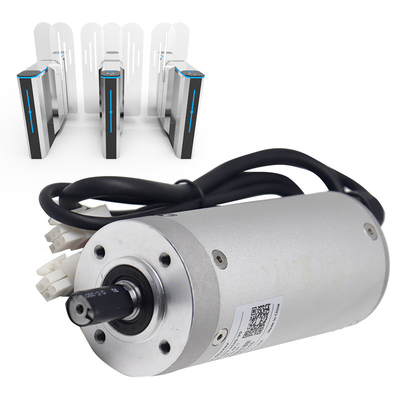

Small DC Servo Motor 59mm Access Small 100w 2000RPM For Channel Gate Pedestrian

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS59R-100A-20CP4E-A6JL-S0-03

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

60mm Small DC Servo Motor

,

BLDC Planetary Small DC Servo Motor

,

60mm linear dc servo motor

Power:
100W
Rated Voltage:
DC 24V
Rated Current:
6A
Rated Torque:
9.4Nm
Rated Speed:
100RPM
Poles:
4
Encorder:
2400
Gear Ratio:
1:20
Power:
100W
Rated Voltage:
DC 24V
Rated Current:
6A
Rated Torque:
9.4Nm
Rated Speed:
100RPM
Poles:
4
Encorder:
2400
Gear Ratio:
1:20
Small DC Servo Motor 59mm Access Small 100w 2000RPM For Channel Gate Pedestrian

Small DC Servo Motor 59mm Access Small DC Servo Motor For Channel Gate Pedestrian



Features

1. 3-phase low-voltage servo motor with gearbox

2. High efficiency for low energy consumption

3. With encoder for motor control feedback

4. Use low temperature greases for gearbox

5. Available in reduction ratio, 1:20 & 1:49. Available in 2 wiring method



Advantages

  • 300mm acrylic door panel, opening time up to 0.3 seconds.
  • Corrosion resistance
  • High temperature resistance
  • Safety protection
  • Durable

Product description

 Maximum outer diameter 59mm, round body, motor and reducer integrated assembly, suitable for channel gate movement structure;

● Comes with a 2400-line incremental encoder with an optional 1:20 reduction ratio to achieve high-precision control of the movement;





Dimension

Model
EBS59R-100A-20CP4E-A6JL-S0-03
Rated Voltage
DC 24V
Rated Current
6A
Rated Torque
9.4Nm
Rated Speed
100RPM
Rated Power
100W
Poles
4
Encorder
2400
Gear Ratio
1:20

Small DC Servo Motor 59mm Access Small 100w 2000RPM For Channel Gate Pedestrian 2

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Small DC Servo Motor 59mm Access Small 100w 2000RPM For Channel Gate Pedestrian 3



FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
