Explosion Proof 3000 RPM 60mm Servo Motor with Encoder for Lifting Robot

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS60F-200C-30DG5Z-BEEL-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: carton

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

60mm Planetary Gear Motor With Encoder

,

80RPM Planetary Gear Motor With Encoder

,

Explosion Proof planetary dc motor

Product Name:
Servo Motor
Usage:
Lifting Robot
Construction:
Permanent Magnet
Protect Feature:
Explosion-proof
Speed(RPM):
3000RPM
Power:
200W
Rated Voltage:
DC 48V
Rated Current:
5.6A
Rated Torque:
0.64Nm
Size:
78mm
Product Name:
Servo Motor
Usage:
Lifting Robot
Construction:
Permanent Magnet
Protect Feature:
Explosion-proof
Speed(RPM):
3000RPM
Power:
200W
Rated Voltage:
DC 48V
Rated Current:
5.6A
Rated Torque:
0.64Nm
Size:
78mm
Explosion Proof 3000 RPM 60mm Servo Motor with Encoder for Lifting Robot

Explosion Proof 3000 RPM 60mm Servo Motor with Encoder for Lifting Robot



Product description

Lifting Robot servo motor series are designed to working with low voltage servo motor for automatic products, adopts incremental encoder, suitable for indoor and outdoor situation, easy to install, and the servo motor widely use for applications like AGV robot, Follow Me Robot, Serving Robot, Roller Conveyor Robot, Lifting Robot, logistic sorting robot etc.





Specification
Certification
ce
Type
SERVO MOTOR
Torque
0.64Nm
Speed(RPM)
3000RPM
Continuous Current(A)
5.6A
Peak current
16.8A
Power
200W
Rated Voltage
DC 48V
Rated Current
5.6A
Rated Torque
0.64Nm
Poles
5
Encorder
2500
brake without

Advantages

  • Cooperate with the servo vector algorithm, with high precision.
  • Using low temperature bearing and low temperature grease, it can operate normally in low temperature environment
  • The service life is not less than 10 million times. Authoritative appraisal by third party testing institution.
  • Convenient maintenance, with computer software, can quickly and intuitively modify and debug parameters
  • Support RoHS,CE product certification, comply with export standards
  • Super over-load capacity, overload 3 times in a short time without damage

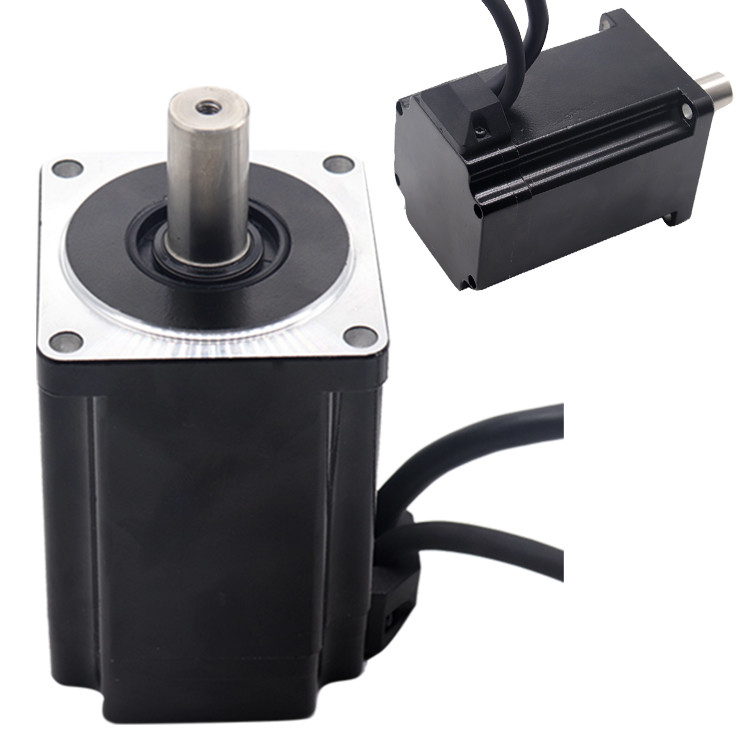

Explosion Proof 3000 RPM 60mm Servo Motor with Encoder for Lifting Robot 1



 FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
