Home > products > DC Servo Motor Drive > 24V 12A Low Voltage Servo Drive Absolute Encoder Robot Motor Driver For Medical Instruments

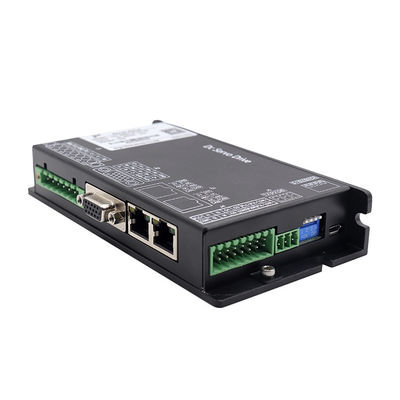

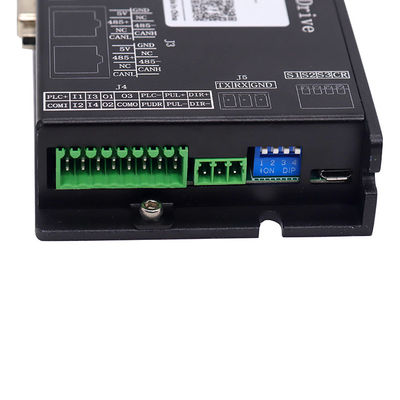

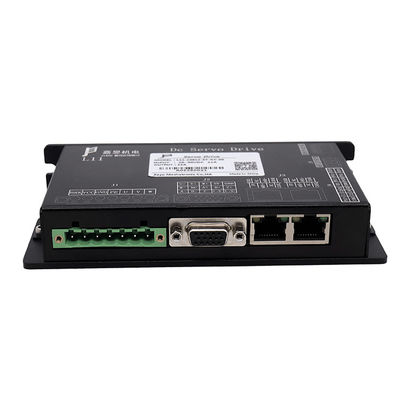

24V 12A Low Voltage Servo Drive Absolute Encoder Robot Motor Driver For Medical Instruments

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: L11-1-06-12-ST-CO-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

24V 12A Low Voltage Servo Drive

,

Medical Instruments Low Voltage Servo Drive

,

Absolute Encoder Robot Motor Driver

Input Voltage:
24 ~ 80 VDC
Continuous/peak Current:
12A / 36A
Encoder Feedback:
Incremental
Communication Interface:
RS232/RS485/CAN
Digital Input/output:
4 In 2 Out, Optocoupling Isolation
Special Interface:
One Way Output
Working Temperature:
-25℃ ~ 70℃
Product Name:
Low Voltage Servo Drive
Input Voltage:
24 ~ 80 VDC
Continuous/peak Current:
12A / 36A
Encoder Feedback:
Incremental
Communication Interface:
RS232/RS485/CAN
Digital Input/output:
4 In 2 Out, Optocoupling Isolation
Special Interface:
One Way Output
Working Temperature:
-25℃ ~ 70℃
Product Name:
Low Voltage Servo Drive
24V 12A Low Voltage Servo Drive Absolute Encoder Robot Motor Driver For Medical Instruments

24v 12 A low voltage servo drive with absolute encoder robot motor driver for medical instruments


Features
① Adapt to DC servo motor below 400W,support incremental and absolute encoder;
② Support position control, speed control, torque control and single axis control mode;
③ RS485/CANopen bus communication,can beused for multi-axis equipment control;

Advantages
① The motor winding protects the power supply from short circuit

② Over-current protection

③ Encoder disconnection protection



Matching function
  • Modbus serial communication protocol(RS232/RS485);
  • The upper computer software with oscilloscope function canmodify parameters and monitor debugging;
  • Provide serial port burning download tools,support online remote serial port up grade;

Application
① Logistics sorting

② Robot

③ AGV

④ medical instruments

⑤ 3C equipment

⑥ textiles  machine

⑦ packaging machine



Specification

  Products name  Low voltage servo drive
Certification
CE ROHS
Input voltage
24 ~ 80 VDC
Continuous/peak current
12A / 36A
Encoder feedback
Incremental
Communication interface
RS232/RS485/CAN
Digital input/output
4 in 2 out, optocoupling isolation
special interface
One way output
Control mode
Location mode/ internal location
Working humidity
90%,No condensation
Working temperature
-25℃ ~ 70℃


24V 12A Low Voltage Servo Drive Absolute Encoder Robot Motor Driver For Medical Instruments 0

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

24V 12A Low Voltage Servo Drive Absolute Encoder Robot Motor Driver For Medical Instruments 2

FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
