Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS59R(1：20)
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 10-15days after payment
Payment Terms: TT, L/C
Supply Ability: 500pcs per month
Torque: |
9.4nm |
Speed(RPM): |
100PRM |
Continuous Current(A): |
6A |
Rated Power: |
100W |
Continuous Rated Speed: |
2000RPM |
Continuous Rated Torque/: |
0.5N.m |
Peak Current: |
12A |
Gear Ratio: |
1:20 |
Encoder Resolution: |
9600PPR |
Rated Voltage: |
24v |
Torque: |
9.4nm |
Speed(RPM): |
100PRM |
Continuous Current(A): |
6A |
Rated Power: |
100W |
Continuous Rated Speed: |
2000RPM |
Continuous Rated Torque/: |
0.5N.m |
Peak Current: |
12A |
Gear Ratio: |
1:20 |
Encoder Resolution: |
9600PPR |
Rated Voltage: |
24v |

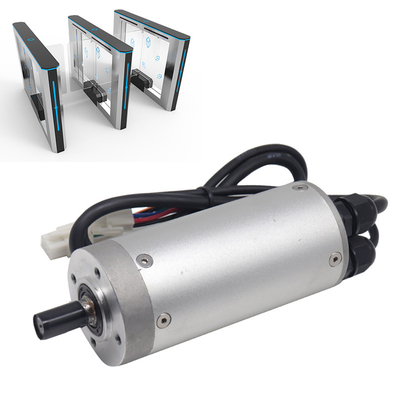

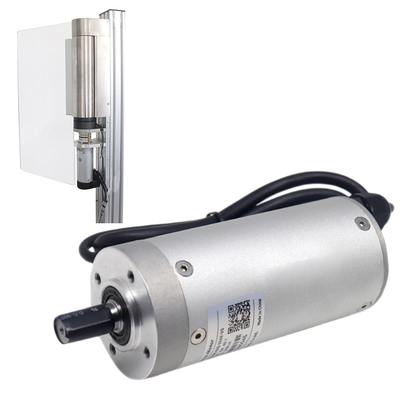

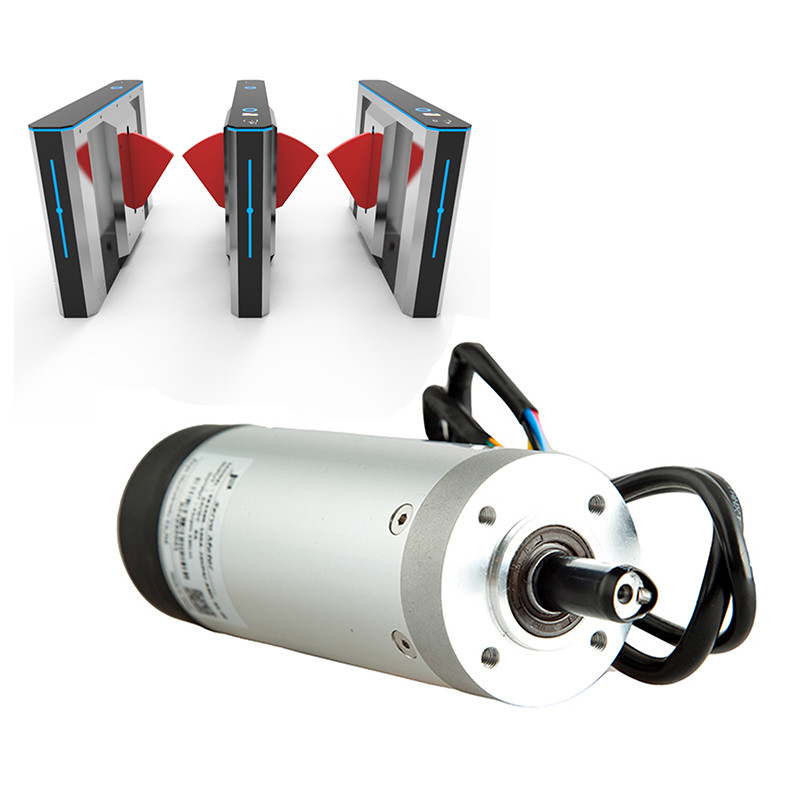

Speed Gate Motors 2000RPM 0.5N.M Servo Motor 100W For Speed Gate Turnstile
Product description
swing barriers servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the servo motor widely use for applications like swing barrier gate turnstile, speed gate turnstile,flap barrier gate, sliding gate turnstile, etc.
Features
This motor's fuselage is very small and short, suitable for a variety of mechanical equipment. The product has 3-phase low-voltage servo motor with gearbox, and high efficiency for low energy consumption. With encoder for motor control feedback, use low temperature greases for gearbox.Available in reduction ratio, 1:20 & 1:49. And available in 2 wiring method.
Advantages
Specification
|
Model Number
|
EBS59R(1:20)
|
|
Usage
|
swing barrier gate turnstile, speed gate turnstile,flap barrier gate, sliding gate turnstile, etc.
|
|
Certification
|
ce
|
|
Type
|
SERVO MOTOR
|
|
Torque
|
0.5N.m
|
|
Construction
|
Permanent Magnet
|
|
Speed(RPM)
|
3000rpm
|
|
Continuous Current(A)
|
6A
|
|
Product Name
|
Servo Motor
|
|
Rated voltage
|
24V
|
|
Continuous rated speed
|
3000rpm
|
|
Output torque
|
9.4N.m
|
|
Rated voltage
|
24v
|
|
Peak current
|
14A
|
|
Output speed
|
100rpm
|
|
Encoder resolution
|
9600ppr
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
Q1 : How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. We provide effecient after sale-service. We can also send technician to support the installation.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.
