Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS59R-100A-20XP4J-B6EL-S1-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

Low Voltage Servo Turnstile Motor

,

Turnstile Motor 100 Watt

,

Three Phase Turnstile Motor

Torque:
23N.m
Speed(RPM):
2000rpm
Continuous Current(A):
6A
Rated Voltage:
24VDC
Rated Power:
100Watt
Continuous Rated Torque:
0.5N.m
Peak Current:
12A
Output Speed:
41rpm
Encoder Resolution:
9600ppr
Weight Of Motor:
1.3kg
Torque:
23N.m
Speed(RPM):
2000rpm
Continuous Current(A):
6A
Rated Voltage:
24VDC
Rated Power:
100Watt
Continuous Rated Torque:
0.5N.m
Peak Current:
12A
Output Speed:
41rpm
Encoder Resolution:
9600ppr
Weight Of Motor:
1.3kg

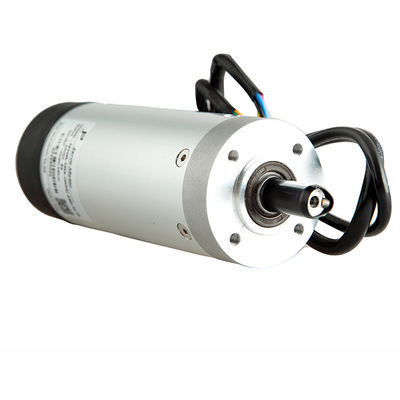

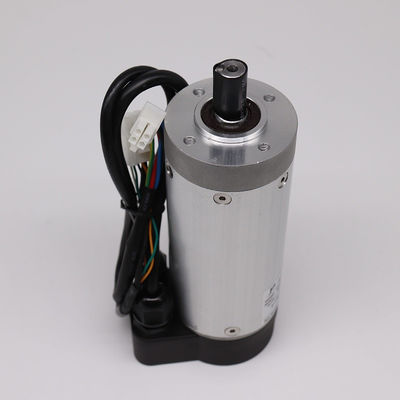

Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg

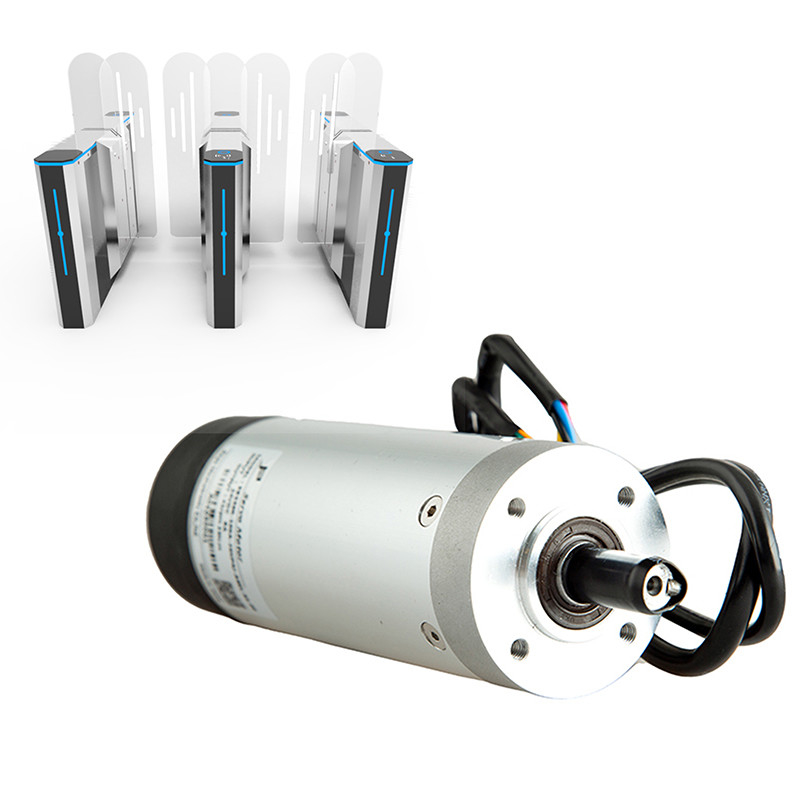

servo motor DC 24 V 3-phase low-voltage turnstile motor motor for swing gate



Product description

Turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.


Specification
Model Number
EBS59R-100A-20XP4E-B6EL-S1-00
Usage
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Turnstile
Certification
ce
Type
SERVO MOTOR
Torque
23N.m
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Waterproof
Speed(RPM)
2000rpm
Continuous Current(A)
6A
Efficiency
IE 4
Rated voltage
24VDC
Rated power
100Watt
Continuous rated speed
2000rpm
Continuous rated torque
0.5N.m
Continuous rated current
6A
Peak current
12A
Output speed
41rpm
Output torque
23N.m
Encoder resolution
9600ppr
Weight of motor
1.3kg



Advantages

  • High-resolution position feedback with 2400 lines can realize accurate positioning      Service life is not less than
  • 6 million times. Authoritative appraisal by third party testing institution.
  • 300mm acrylic door panel, opening time up to 0.3 seconds.
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.



Why choose us

1. Our price is reasonable;

2. We can accept small orders;

3. Sample order delivery time is in 5 days, mass quantity order lead time is 7-10 days;

4. We can accept payment via paypal, T/T and L/C;

5. Our products quality assurance is 1 year, and we can provide you professional technical support;

6. We accept products customize.



Dimension


Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg 2

Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg 4





Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg 9

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Three Phase Low Voltage Servo Turnstile Motor 100 Watt 1.3kg 11

FAQ

Q1 : How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

3. We provide effecient after sale-service. We can also send technician to support the installation.

Q2. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q3. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.
