Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: JY-DZ-CB-01
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Product Name: |
Barrier Gate Movement |
Rated Voltage: |
24v |
Rated Power: |
120w |
Continuous Rated Speed: |
2000rpm |
Peak Current: |
12A |
Output Speed: |
17RPM |
Output Torque: |
1.5Kgf..m |
Lifting Time: |
0.3~0.8S |
Encoder Resolution: |
12000PPR |
Continuous Rated Current: |
6A |
Product Name: |
Barrier Gate Movement |
Rated Voltage: |
24v |
Rated Power: |
120w |
Continuous Rated Speed: |
2000rpm |
Peak Current: |
12A |
Output Speed: |
17RPM |
Output Torque: |
1.5Kgf..m |
Lifting Time: |
0.3~0.8S |
Encoder Resolution: |
12000PPR |
Continuous Rated Current: |
6A |

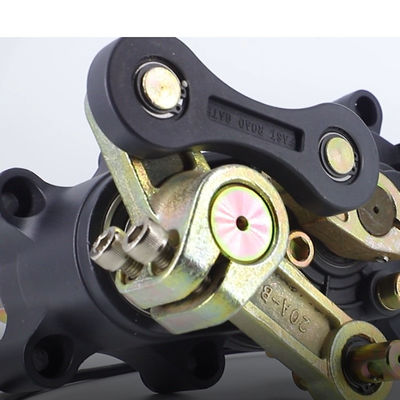

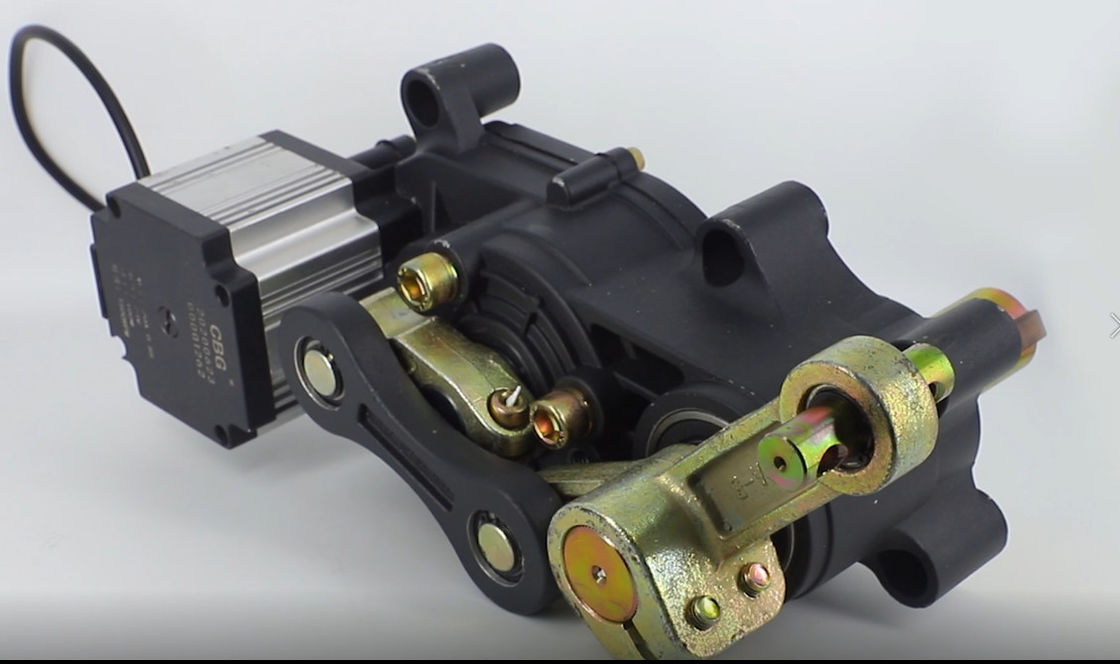

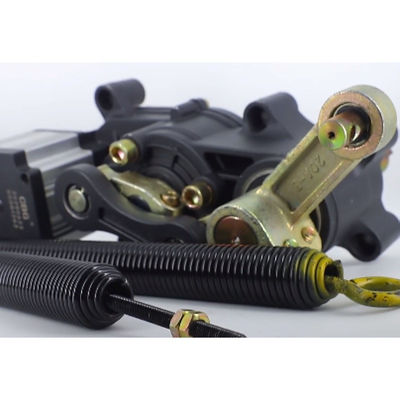

2400 Lines Manufacture Dc servo Motor for Barrier Gate Security Parking Road Barrier Gate mechanism
Description
JY-DZ-CB-01/02/03/04 BOON barrier gate mechanisn work with servo controller suitable for Vehicle Barriers for parking lot, parking garage, office buildings, industrial parks and residential communities etc.
Features
* Outdoor Waterproof: Multi-Environment adapted.
* Resistance Reaction: Lift when outer force applied.
* Multi-controlling: Remotely, manually, and payment option.
* High Integrated Feature: Accessories Available and Compatible.
* Open-Priority: Remotely Lift in any case to encounter emergency.
* Angle Sensor: Instatly boom position capture, high precision, steady movement.
1) The movement adopts side stick installation, which is convenient for installation and compact in structure.
2) The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
3) The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
4) The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
5) DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.
| No | Model+ | output power |
voltage | current | Motor amount Fixed speed |
Lifting and lowering time |
Spindle output torque |
insulation class |
protection class |
| 1 | 18B-0.3S | 120W | DC24V | 6A | 1500r/min | 0.3S-0.8S | 1.5kgf.m | F | IP44 |
| 2 | 18B-0.6S | 120W | DC24V | 6A | 1500r/min | 0.6S-1.5S | 3kgf.m | F | IP44 |
| 3 | 18B-1.2S | 120W | DC24V | 6A | 1500r/min | 0.6S-1.5S | 5.9kgf.m | F | IP44 |
| 4 | 18B-2.5S | 120W | DC24V | 6A | 1500r/min | 2.5S-6.0S | 11.8kgf.m | F |
IP44 |
Specification
| Rated voltage | 24v |
| Rated power | 120w |
| Continuous rated speed | 2000rpm |
| Continuous rated current | 6A |
| Peak current | 12A |
| Output speed | 17RPM |
| Output torque | 1.5Kgf..m |
| Lifting time | 0.3~0.8S |
| Encoder resolution | 12000PPR |
| Product name | barrier gate movement |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.
Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.
If you are interested in them, feel free to contact me.
