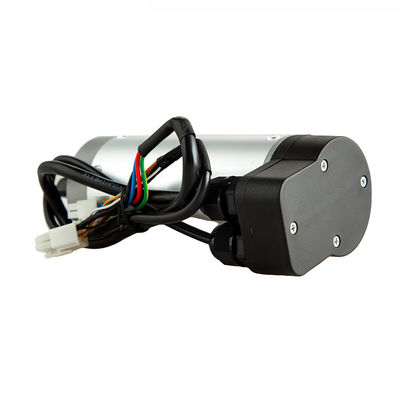

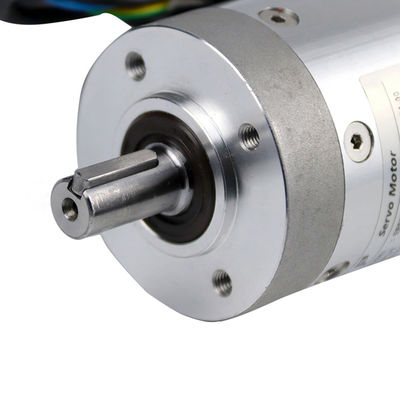

DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS59R-100A-20XP4J-B6EL-S1-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

23N.M Barrier Gate Motor

,

Fast Speed Barrier Gate Motor

,

DC24V 3 Phase Servo Motor

Speed(RPM):
2000rpm
Rated Voltage:
DC24V
Rated Power:
100W
Continuous Rated Speed:
2000rpm
Peak Current:
12A
Output Speed:
41rpm
Output Torque:
23N.m
Weight Of Motor:
1.3kg
Speed(RPM):
2000rpm
Rated Voltage:
DC24V
Rated Power:
100W
Continuous Rated Speed:
2000rpm
Peak Current:
12A
Output Speed:
41rpm
Output Torque:
23N.m
Weight Of Motor:
1.3kg
DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor

 DC 24 V 23N.m 3-phase low-voltage fast speed  servo motor for speed gate​



Product description

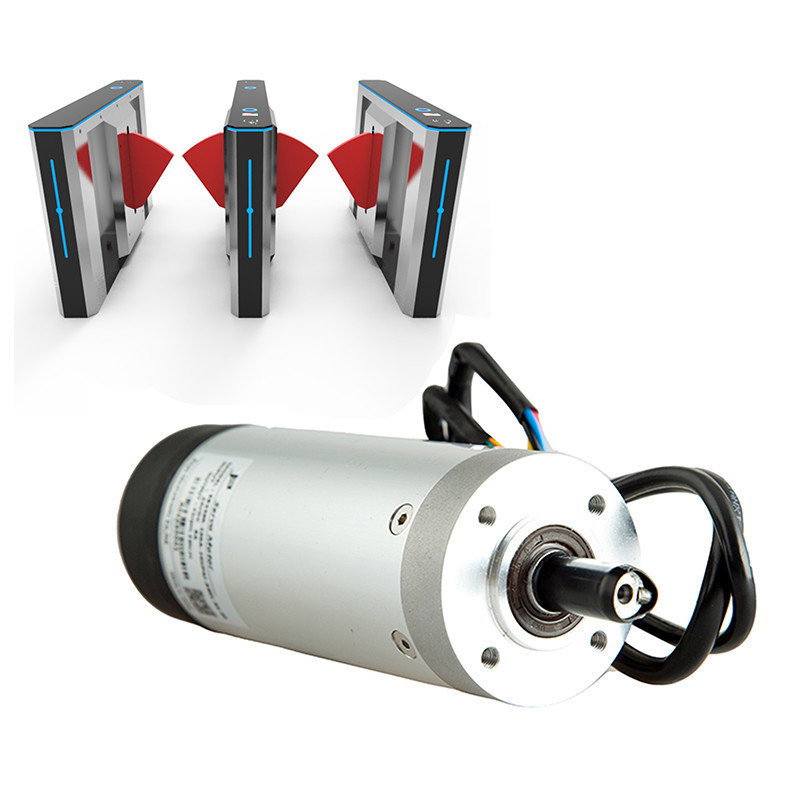

turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Advantages

  • High-resolution position feedback with 2400 lines can realize accurate positioning Service life is not less than
  • 6 million times. Authoritative appraisal by third party testing institution.
  • 300mm acrylic door panel, opening time up to 0.3 seconds.
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

Why choose us

1. Our price is reasonable;

2. We can accept small orders;

3. Sample order delivery time is in 5 days, mass quantity order lead time is 7-10 days;

4. We can accept payment via paypal, T/T and L/C;

5. Our products quality assurance is 1 year, and we can provide you professional technical support;

6. We accept products customize.



DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor 0

Dimension







DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor 5
DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor 7

DC24V 23N.M Fast Speed Barrier Gate Motor Low Voltage 3 Phase Servo Motor 10

 Specification

Model Number
EBS59R-100A-20XP4E-B6EL-S1-00
Usage
 Turnstile
Certification
ce
Type
SERVO MOTOR
Torque
9.4N.m
Construction
Permanent Magnet
Protect Feature
Waterproof
Speed(RPM)
2000rpm
Continuous Current(A)
6A
Efficiency
IE 4
Rated voltage
24VDC
Rated power
100Watt
Continuous rated speed
2000rpm
Continuous rated torque
0.5N.m
Continuous rated current
6A
Peak current
12A
Output speed
100rpm
Output torque
9.4N.m
Encoder resolution
9600ppr
Weight of motor
1.3kg
