Product Details
Place of Origin: Shenzhen
Brand Name: Jiayu
Certification: ce ROHS
Model Number: EBS60F-400C-30DE4Z-BEET-ST-00
Payment & Shipping Terms
Minimum Order Quantity: 3sets
Price: $82/sets~$96/sets
Packaging Details: package
Delivery Time: 15~20 work days
Payment Terms: T/T
Supply Ability: 500 sets
Product Name: |
AGV Servo Motor |
Power: |
400w |
Voltage: |
48v |
Rated Speed: |
3000rpm |
Rated Current: |
11A |
Incremental Encoder: |
2500 Lines |
IP Grade: |
IP65 |
Working Temperature: |
-25℃-55℃ |
Product Name: |
AGV Servo Motor |
Power: |
400w |
Voltage: |
48v |
Rated Speed: |
3000rpm |
Rated Current: |
11A |
Incremental Encoder: |
2500 Lines |
IP Grade: |
IP65 |
Working Temperature: |
-25℃-55℃ |

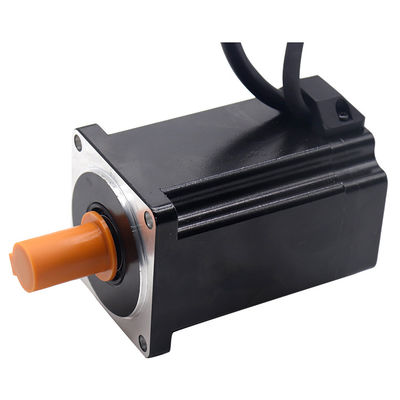

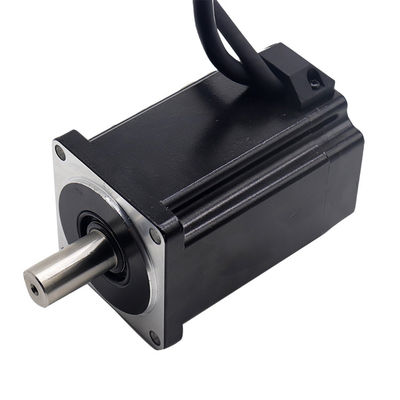

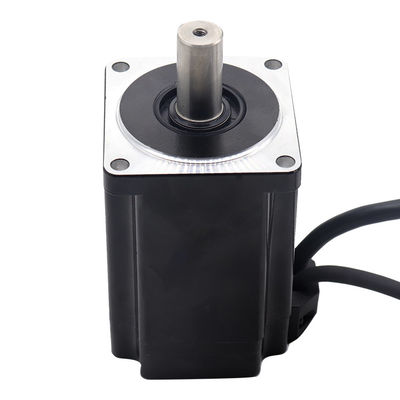

High power ODM 60mm 48v 400w dc servo motor used for agv
Product description
Shenzhen Jiayu Mechatronic CO., Ltd AGV servo motor EBS60F-400C-30DE4Z-BEET-ST-00 series are designed to working with servo drive, adopts incremental encoder 2500 lines, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for Logistics sorting, medical instruments, 3C equipment, packaging, etc.
Specification
| product name | AGV servo motor |
| Voltage | 48v |
| Incremental encoder | 2500 lines |
| Rated speed | 3000rpm |
| Power | 400w |
| Feature | greatly reduced and the operation is smoothly |
| Reduction Ration | 1:50 |
| Continuous rated torque | 1.27 nm |
| Continuous Current | 10.6A |
| Efficiency | IE2 |
Advantages
① The motor winding protects the power supply from short circuit
② Motor winding inter-phase short circuit protection
③ Encoder disconnection protection
④ Over-voltage protection
⑤ Over-current protection
Applications
►AGV servo motor
►Logistics sorting
►medical instruments
►3C equipment
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
