Home > products > Logistic Motor > 750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump

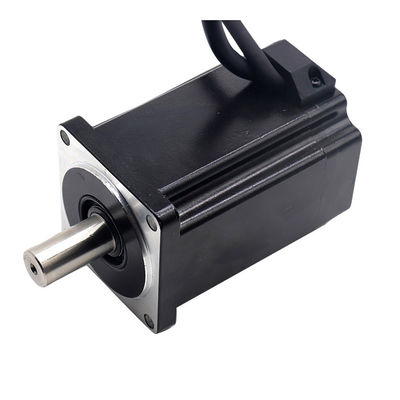

750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump

Product Details

Place of Origin: Shenzhen

Brand Name: Jiayu

Certification: ce ROHS

Model Number: EBS60F-400C-30DE4Z-BEET-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 3sets

Price: Negotiable

Packaging Details: package

Delivery Time: 15~20 work days

Payment Terms: T/T

Supply Ability: 500 sets

Get Best Price
Highlight:

1000w Absolute Encoder Logistic Motor

,

750w Absolute Encoder Logistic Motor

,

750 watt Peristaltic Pump Motor

Rated Speed:
3000rpm
Power:
400w
Voltage:
48v
Product Name:
Logistic Motor
Rated Current:
11A
Encoder:
17 Bits Absolute Encoder
IP Grade:
IP65
Working Temperature:
-25℃-55℃
Certification:
RoHS, Ce
Application:
Peristaltic Pump
Rated Speed:
3000rpm
Power:
400w
Voltage:
48v
Product Name:
Logistic Motor
Rated Current:
11A
Encoder:
17 Bits Absolute Encoder
IP Grade:
IP65
Working Temperature:
-25℃-55℃
Certification:
RoHS, Ce
Application:
Peristaltic Pump
750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump

48v 400w 750w 1000w OEM 17 bits absolute encoder Liquid Transfer dc servo motor for Logistic Motor



Product description

Shenzhen Jiayu Mechatronic CO., Ltd Logistic Motor EBS60F-400C-30DE4Z-BEET-ST-00 series are designed to working with servo drive, adopts 17 bits absolute encoder, suitable for indoor and outdoor situation, easy to install, and our  servo motor widely use for  Logistics sorting, medical instruments, 3C equipment, packaging, etc.



Products features

1. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection

4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feedforward parameter configuration to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including overcurrent, overload, overvoltage, undervoltage, overheating,overspeed, and out of tolerance protection
8. Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle



Specification

product name Logistic Motor
Voltage 48v
 encoder 17 bits absolute encoder
Rated speed 3000rpm
Power 400w
Feature greatly reduced and the operation is smoothly



Advantages

      ① The motor winding protects the power supply from short circuit

② Motor winding inter-phase short circuit protection

③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection



Applications

  • AGV servo motor
  • Logistics sorting
  • medical instruments
  • 3C equipment

750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump 0

750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump 1



About us

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.



750w 1000w Absolute Encoder Logistic Motor For Peristaltic Pump 2



FAQ

Q1. What are your products can be use to ?
A: Our products can be used in packaging machine,
AGV machine, Logistics sorting

machine, medical instruments machine and so on.

Q2. What kind of Payment methods do you accept ?
A: We can accept Paypal ,TT, Money Gram

Q3: What kind of shipping methods do you use ?
A:1)For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.

2)For mass production or big batch, ocean shipping/sea shipment is recommended.


Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK . For mass production , the lead time depend on the quantities you need .
Note: Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.



Q5:What is your warranty time ?
A:Warranty time : 12 months. And we provide life-long technical service and after-sale service.

Q6:Can i get a free sample?
A:Sorry, we don’t provide free sample.
