Absolute Encoder 80mm Robot Servo Motor 48V 750W With Brake

Product Details

Place of Origin: Shenzhen

Brand Name: Jiayu

Certification: ce ROHS

Model Number: EBS80F-750C-30T2H5Z-BEEL-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 3sets

Price: Negotiable

Packaging Details: package

Delivery Time: 15~20 work days

Payment Terms: T/T

Supply Ability: 500 sets

Get Best Price
Highlight:

Absolute Encoder Robot Servo Motor

,

80mm Robot Servo Motor With Brake

,

48V 750W Servo Motor

Product Name:
Robot Servo Motor
Power:
750w
Voltage:
48v
Rated Speed:
3000rpm
Rated Current:
20A
Absolutely Encoder:
17 Bits
IP Grade:
IP65
Working Temperature:
-25℃-55℃
Peak Current:
40A
Peak Torque:
4.8nm
Product Name:
Robot Servo Motor
Power:
750w
Voltage:
48v
Rated Speed:
3000rpm
Rated Current:
20A
Absolutely Encoder:
17 Bits
IP Grade:
IP65
Working Temperature:
-25℃-55℃
Peak Current:
40A
Peak Torque:
4.8nm

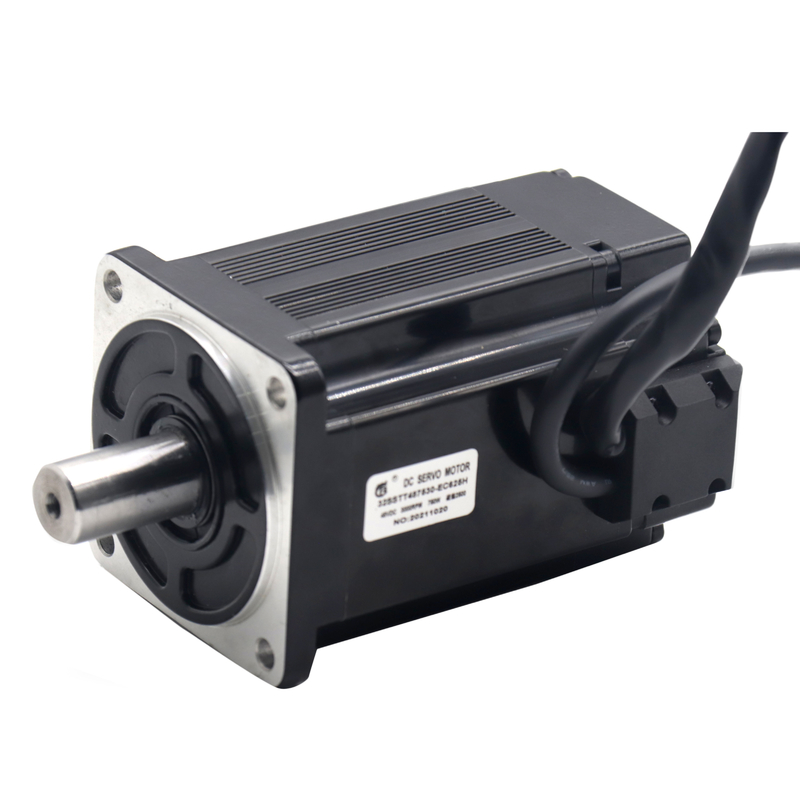

Absolute Encoder 80mm Robot Servo Motor 48V 750W With Brake

Robot Servo Motor 80 mm 48v 750w with brake and absolutely encoder for robotics



Specification of Robot Servo Motor

product name AGV servo motor
Voltage 48v
absolutely encoder 17 bits
Rated speed 3000rpm
Power 750w
Feature greatly reduced and the operation is smoothly



Product description of Robot Servo Motor

Easy for speed & direction adjustment Robot Servo Motor EBS80F-750C-30T2H5Z-BEEL-ST-00 series are designed to working with servo drive, adopts absolutely encoder 17 bits, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for  Logistics sorting, medical instruments, 3C equipment, packaging, etc. Strong stability for driver/controller



Products features of Robot Servo Motor

1. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection

4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feedforward parameter configuration to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including overcurrent, overload, overvoltage, undervoltage, overheating,overspeed, and out of tolerance protection
8. Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle





Advantages of Robot Servo Motor

      ① The motor winding protects the power supply from short circuit

② Motor winding inter-phase short circuit protection

③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection



Applications of Robot Servo Motor

  • AGV servo motor
  • Logistics sorting
  • medical instruments
  • 3C equipment

Absolute Encoder 80mm Robot Servo Motor 48V 750W With Brake 0

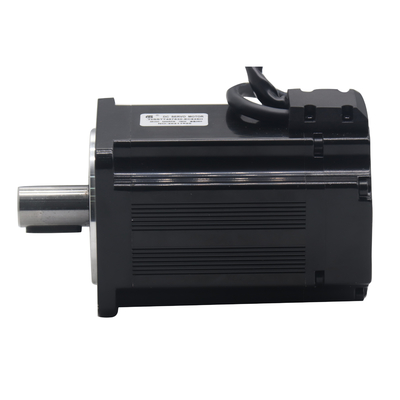

Absolute Encoder 80mm Robot Servo Motor 48V 750W With Brake 1



Notice for Usage:

1). Please don't use motor out of the range of nameplate of gear box and motor and the specification of product catalogue, avoiding getting an electric shock, hurting or damaging the device.
2). Please do not put your fingers and things into the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3). Please do not use the Injured gear head of motor, in order to prevent hurting,catching a fire etc.
4). Please do not put off the nameplate.
5). If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our company doesn’t undertake any responsibility.
6). When you move it, if it shed off or tilt to one side, it is very dangerous, please pay more attention.
7). Please must not put the flammable thing near the gear head and motor, in order to prevent catching a
fire.



FAQ

Q1. What are your products can be use to ?
A: Our products can be used in packaging machine,
AGV machine, Logistics sorting

machine, medical instruments machine and so on.

Q2. What kind of Payment methods do you accept ?
A: We can accept Paypal ,TT, Money Gram

Q3: What kind of shipping methods do you use ?
A:1) For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.

2)For mass production or big batch, ocean shipping/sea shipment is recommended.


Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK . For mass production , the lead time depend on the quantities you need .
Note: Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.



Q5: What is your warranty time ?
A: Warranty time : 12 months. And we provide life-long technical service and after-sale service.

Q6: Can i get a free sample?
A: Sorry, we don’t provide free sample.
