Product Details
Place of Origin: China
Brand Name: jiayu
Certification: ce
Model Number: L11-10630
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Supply Ability: 500pcs per month
Input Voltage: |
DC24 ~ 80V |
Rated/peak Current: |
30 / 90A |
Encoder Feedback: |
Incremental Or Absolute Version |
Communication Mode: |
RS232、RS485、CAN |
Input/output: |
4 In 2 Out，Optical Coupling Isolation, Polarity Optional |
Specific Interface: |
Pulse+direction；brake Output |
Application: |
Logistics Sorting Robot |
Working Temperature: |
-25℃ ~ 70℃ |
Input Voltage: |
DC24 ~ 80V |
Rated/peak Current: |
30 / 90A |
Encoder Feedback: |
Incremental Or Absolute Version |
Communication Mode: |
RS232、RS485、CAN |
Input/output: |
4 In 2 Out，Optical Coupling Isolation, Polarity Optional |
Specific Interface: |
Pulse+direction；brake Output |
Application: |
Logistics Sorting Robot |
Working Temperature: |
-25℃ ~ 70℃ |

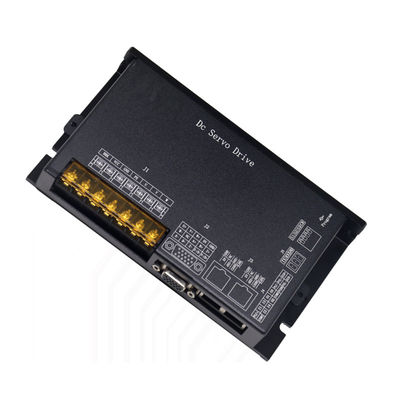

DC Servo Drive DC24 ~ 80V small and flexible for Low Voltage logistics sorting robot
Specification Of DC Servo drive
| Model Number | L11-20305 |
| Input voltage |
DC24 ~ 80V |
| Continuous/peak current |
30 / 90A |
| Encoder feedback | Incremental |
| Communication interface | RS232/RS485/CAN |
| Digital input/output |
4 in 2 out,Optical coupling isolation, polarity optional |
| special interface | One way output |
| Control mode | Location mode/ internal location |
| Working humidity | 90%,No condensation |
| Working temperature | -25℃ ~ 70℃ |
|
Specific interface |
pulse+direction；brake output |
Features Of DC Servo drive
Ø Mainstream general purpose servo drive shape design, two installation options；
Ø Suitable for 750W and below low voltage servo motor, support incremental and absolute encoder types (optional)；
Ø Support DC24 ~ 48V power supply or battery power supply, external brake unit, instantaneous 300% overload capacity.
Ø Support position, speed, torque, back to zero control mode functions, support Modbus CANopen(optional) and other communication protocols .
Ø Suitable for AGV robot, logistics equipment, agricultural machinery equipment, medical equipment, etc.
Ø Can follow up customer demand and application conditions for software and hardware function customization development.
Description Of DC Servo Drive
1) Input voltage: 24 ~ 80 VDC
2) Communication interface: RS232/RS485/CAN
3) Adapt to DC servo motor below 750W,support incremental and absolute encoder;
4) Support position control, speed control, torque control and single axis control mode;
Solutions Of DC Servo drive
Ø Support pulse input interface external PLC or motion control card
Ø Support Modbus communication control, up to 31 axis serial synchronous control (RS485).
Ø Support CANopen communication control, up to 127 axis serial synchronization control.
Ø Support MagicServo debugging software, support soft oscilloscope debugging motion control function and PID setting
② Robot
③ AGV
④ medical instruments
⑤ 3C equipment
⑥ textiles machine
⑦ packaging machine
