CAN Communication DC Servo Motor Drive 200w With Incremental Encoder

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: ce, ROHS

Model Number: AL200

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiation

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000/year

Get Best Price
Highlight:

CAN Communication DC Servo Motor Drive

,

2X Overload DC Servo Motor Drive

,

DC Servo Motor Drive 3000rpm

Power Supply Input:
DC24~ 50V (48V)
Rated Power Pn(W):
200w
Rated Speed(rpm):
3000rpm
Rated Torque(Nm):
1.27nm
Maximum Continuous Operating Current (A):
10A
Encoder Feedback:
2500-line Incremental Encoder
Communication:
RS232, RS485, CAN Interface
Operating Ambient Temperature:
-20 To 55°C (no Freezing)
Use Of Environmental Humidity:
90% RH Or Less (no Condensation)
Overload:
2X Overload
Power Supply Input:
DC24~ 50V (48V)
Rated Power Pn(W):
200w
Rated Speed(rpm):
3000rpm
Rated Torque(Nm):
1.27nm
Maximum Continuous Operating Current (A):
10A
Encoder Feedback:
2500-line Incremental Encoder
Communication:
RS232, RS485, CAN Interface
Operating Ambient Temperature:
-20 To 55°C (no Freezing)
Use Of Environmental Humidity:
90% RH Or Less (no Condensation)
Overload:
2X Overload
CAN Communication DC Servo Motor Drive 200w With Incremental Encoder

DC Servo Motor Drive 200w CAN Communication With Incremental Encoder Commercial Service Robot



Product description of DC Servo Motor Drive

一 Application Features

① A combination of servo drive and servo motor in one compact size.

② On equipment suitable for operation in a variety of situations.

③ Support for incremental or absolute encoders.

④ Support position control, speed control, torque control and single-axis control modes.

⑤ RS485/CAN bus communication for multi-axis device control.



二 Supporting functions

① Modbus serial communication protocol (RS485).

② Upper computer software with oscilloscope function for parameter modification and monitoring and debugging.

③ Providing serial port burn-in download tool and supporting online remote serial port upgrade.

Products features of DC Servo Motor Drive

① Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
② Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
③ Optional off brake protection

④ Integrated single-turn incremental encoder, limited zero memory
⑤ Provide speed and position feedforward parameter configuration to improve response speed
⑥ Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
⑦ Real-time fault monitoring and protection functions, including overcurrent, overload, overvoltage, undervoltage, overheating,overspeed, and out of tolerance protection
⑧ Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle

Specification of DC Servo Motor Drive

Power supply input

DC24~ 50V (48V)

Rated power Pn(W)

200W

Rated speed(rpm)

3000RPM

Rated torque(Nm)

1.27NM

Maximum continuous operating current (A)

10A

Encoder feedback

2500-line incremental encoder

Overload

2X overload

Communication

RS232, RS485, CAN interface

Operating ambient temperature

-20 to 55°C (no freezing)

Use of environmental humidity

90% RH or less (no condensation)

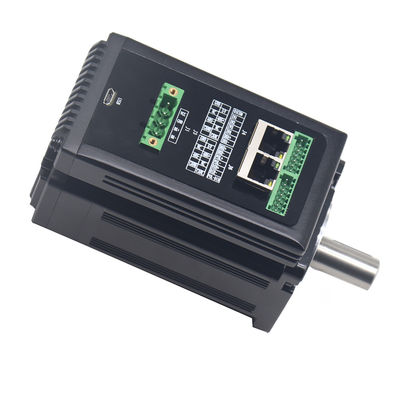

CAN Communication DC Servo Motor Drive 200w With Incremental Encoder 0

Advantages of DC Servo Motor Drive

①The motor winding protects the power supply from short circuit

     ②Motor winding inter-phase short circuit protection

     ③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection
