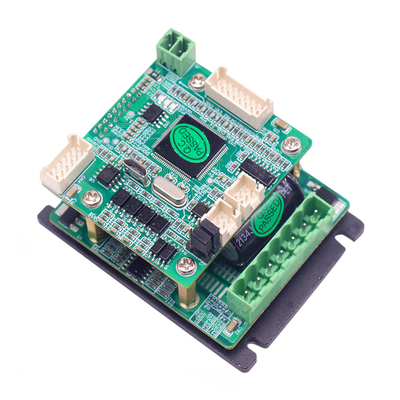

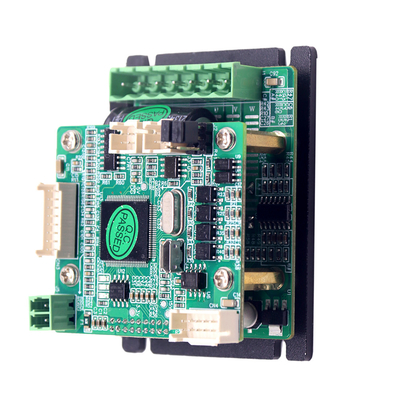

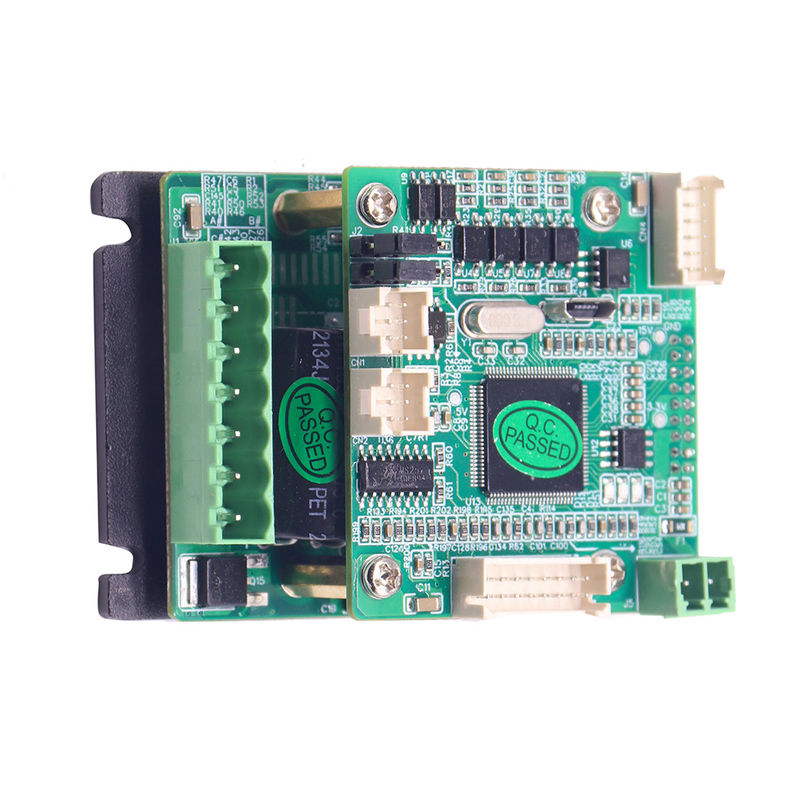

DC Servo Drive RS485+Pulse CAN DC10V To DC36V AGV Handling Robot

Product Details

Place of Origin: China

Brand Name: Jiayu

Model Number: L12-10612-AT-RC-00(RS485+pulse, CAN, absolutely encoder)

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Packaging Details: carton

Delivery Time: 7 days

Payment Terms: L/C, T/T

Supply Ability: 5000 per year

Get Best Price
Highlight:

DC Servo Drive RS485

,

RS485 Pulse CAN Servo Driver

,

AGV Handling Robot DC Servo Drive

Power Input:
DC18V~48V
Encoder Feedback:
Absolutely Encoder
Pulse Quantity Input:
5V Differential Input 0 To 4MHz; 24V Single-ended Input 0 To 200kHz
Digital Inputs And Outputs:
4 INPUT 2 OUTPUT
Communication:
RS485+pulse, CAN
Protection:
Phase To Phase Short Circuit
Rated Output Current:
12A
Ambient Humidity:
Ambient Humidity
Control Method:
Position Control Internal Position Command Control
Power Input:
DC18V~48V
Encoder Feedback:
Absolutely Encoder
Pulse Quantity Input:
5V Differential Input 0 To 4MHz; 24V Single-ended Input 0 To 200kHz
Digital Inputs And Outputs:
4 INPUT 2 OUTPUT
Communication:
RS485+pulse, CAN
Protection:
Phase To Phase Short Circuit
Rated Output Current:
12A
Ambient Humidity:
Ambient Humidity
Control Method:
Position Control Internal Position Command Control
DC Servo Drive RS485+Pulse CAN DC10V To DC36V AGV Handling Robot

DC Servo Drive RS485+pulse CAN Servo Driver Absolutely Encoder DC10V to DC36V AGV Handling Robot



Application features of DC Servo Drive
1. Adaptation to DC servo motors up to 400W, 750W, 1000W, supporting incremental and absolute encoders.
2. Support for position control, speed control, torque control and single axis control modes.
3. RS485+pulse CAN communication for multi-axis device control.

Complementary functions of DC Servo Drive
1. Modbus serial communication protocol (RS485).
2. Upper computer software with oscilloscope function for parameter modification and monitoring and commissioning.
3. Provision of serial port burn-in download tools and support for online remote serial port upgrades.

Application Features of DC Servo Drive
Control method
① Position control
② Internal position command control

Position control
①Pulse volume input; electronic gear ratio;
②support for positioning completion output function.

Single axis control
①Internal command control;
②support for zero return, jogging, positioning and limit functions.

IO control
①Support for enable inputs, alarm clear inputs, command disable inputs, positive and negative limit inputs, etc..
②Support for servo-ready outputs, alarm outputs, holding brake control outputs, etc..

DC Servo Drive RS485+Pulse CAN DC10V To DC36V AGV Handling Robot 0

Hardware specifications



Power input

DC18V~48V

Overload

Load≦200%, overload time﹤120S

200%﹤load﹤300%,overload time﹤5S

Encoder feedback

Incremental encoders (standard incremental, wire-saving, ABZ without Hall only)

Absolute encoders (single/turn/multi-turn, RS485 protocol)

Pulse quantity input

5V differential input 0 to 4MHz; 24V single-ended input 0 to 200kHz.

Digital inputs and outputs

4 digital signal inputs, 12~24V, polarity selectable (isolated)

2 digital signal outputs, 12~24V, 50mA, polarity selectable (isolated), voltage drop ≤ 0.8V.

Protection

Phase to phase short circuit, 5V short circuit

Busbar overvoltage protection, overcurrent protection





DC Servo Drive RS485+Pulse CAN DC10V To DC36V AGV Handling Robot 1
