Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE, Rohs
Model Number: EBS60F-200B-30CP5Z- B7KT-ST-00
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 7 working days
Payment Terms: TT/LC
Supply Ability: 5000/ year
Type: |
Servo Motor |
DC Voltage: |
36v |
Rated Current: |
7.1A |
Rated Torque: |
0.64nm |
Rated Speed: |
3000rpm |
Poles: |
10 |
IP Grade: |
IP65 |
Phase: |
3 Phase |
Power: |
200w |
Encoder: |
Incremental Encoder |
Type: |
Servo Motor |
DC Voltage: |
36v |
Rated Current: |
7.1A |
Rated Torque: |
0.64nm |
Rated Speed: |
3000rpm |
Poles: |
10 |
IP Grade: |
IP65 |
Phase: |
3 Phase |
Power: |
200w |
Encoder: |
Incremental Encoder |

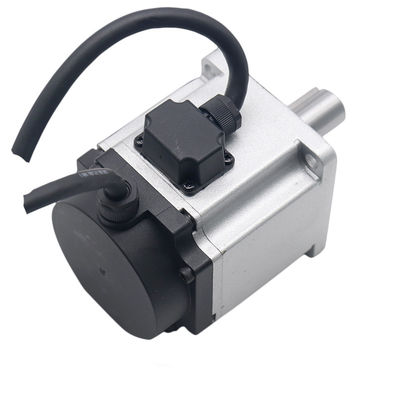

DC Servo Motor 200w 36v 3000RPM with Incremental Encoder for AGV Robot
Product description of AGV Robot servo motor
Shenzhen Jiayu Mechatronic CO., Ltd Logistic Motor EBS60F-200B-30CP5Z- B7KT-ST-00 series are designed to working with servo drive, adopts incremental encoder 2500 lines, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for Logistics sorting, medical instruments, packaging, etc.
Products features of AGV Robot servo motor
1. Adopt EtherCAT/CANopen protocol servo driver Wide voltage input (24v~80VDC)
2. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use.
3. Optional off brake protection
Specification of AGV Robot servo motor
| product name | AGV Robot Servo Motor |
| Voltage | 36v |
| encoder | incremental encoder 2500 lines |
| Rated speed | 3000rpm |
| Power | 200w |
| Feature | greatly reduced and the operation is smoothly |
FAQ
1. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Regular products need 3-5 working days. The customized products need 10-15 working days.
4. How long is your warranty period?
One-year guarantee & Life-time technology support.
