12a Dual Axis Small Servo Motors And Drives For Smart Forklifts

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: ce

Model Number: L12-20612

Payment & Shipping Terms

Minimum Order Quantity: 2PCS

Price: Negotiable

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 500PCS/week

Get Best Price
Highlight:

12a small servo motors and drives

,

forklifts small servo motors and drives

,

12a dc servo drive

Power Input:
DC20V~80V
Overload:
Single Axis 12A, Drive Two In One, Instantaneous 3 Times Overload
Encoder Feedback:
AB Incremental Encoder (differential Input, No Z Signal), UVW Single-ended Input
Indicator Light:
1 Green Power Indicator, 2 Red Fault Indicators
Communication:
RS485, CAN Interface; Support Modbus And CANopen Two Kinds Of Protocols
Protection:
Over-current, Over-voltage, Under-voltage, Motor Over-temperature Protection
Operating Ambient Temperature:
-20 To 55°C
Use Of Environmental Humidity:
90% RH Or Less (no Condensation)
Rated Output Current:
12A
Control Method:
Position Control, Internal Position Command Control
Power Input:
DC20V~80V
Overload:
Single Axis 12A, Drive Two In One, Instantaneous 3 Times Overload
Encoder Feedback:
AB Incremental Encoder (differential Input, No Z Signal), UVW Single-ended Input
Indicator Light:
1 Green Power Indicator, 2 Red Fault Indicators
Communication:
RS485, CAN Interface; Support Modbus And CANopen Two Kinds Of Protocols
Protection:
Over-current, Over-voltage, Under-voltage, Motor Over-temperature Protection
Operating Ambient Temperature:
-20 To 55°C
Use Of Environmental Humidity:
90% RH Or Less (no Condensation)
Rated Output Current:
12A
Control Method:
Position Control, Internal Position Command Control

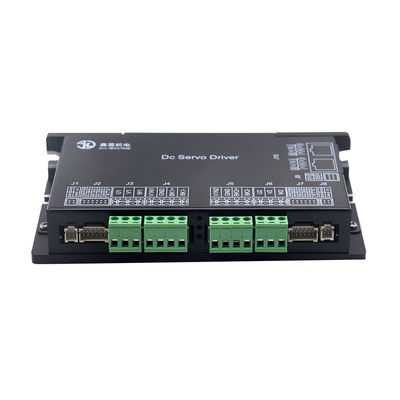

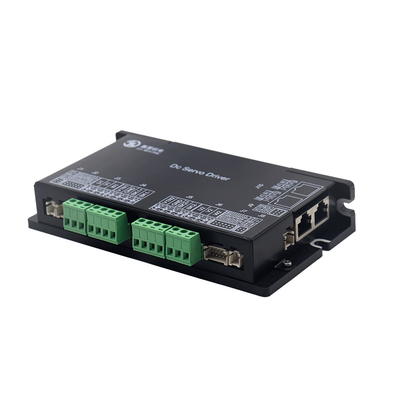

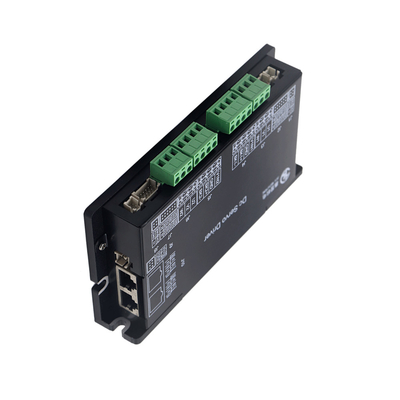

12a Dual Axis Small Servo Motors And Drives For Smart Forklifts

DC Servo Drive 12A Dual Axis Servo Driver with Small Size For Smart Forklifts



Product Description

  • Adapted to DC servo motors up to 400W, supporting incremental type.
  • Support position control, speed control, torque control and single-axis control modes.
  • RS485/CANopen bus communication for multi-axis device control.
  • Modbus serial communication protocol (RS485).
  • Upper computer software with oscilloscope function for parameter modification and monitoring and debugging.
  • Providing serial port burn-in download tool and supporting online remote serial port upgrade.

Application Features

Control method

① Position control ② Internal position command control

Position Control

Pulse volume input; electronic gear ratio; support for positioning completion output function.

Single axis control

Internal command control; support for zero return, pointing, positioning and limit functions.

IO Control

Support enable input, alarm clear input, command disable input, positive and negative limit input, etc..

Support servo ready output, alarm output, holding brake control output, etc



Parameters

Power input DC20V~80V
Overload Single axis 12A, drive two in one, instantaneous 3 times overload
Indicator light 1 green power indicator, 2 red fault indicators
Communication RS485, CAN interface; support Modbus and CANopen two kinds of protocols
Protection Over-current, over-voltage, under-voltage, motor over-temperature protection
Operating ambient temperature

-20 to 55°C (no freezing), do not exceed 80% of the rated average load.

Above 40 ℃, please reduce the amount of use, the maximum temperature of 60 ℃ (room temperature version of no-load operation)

Use of environmental humidity 90% RH or less (no condensation)
Rated output current 12A
