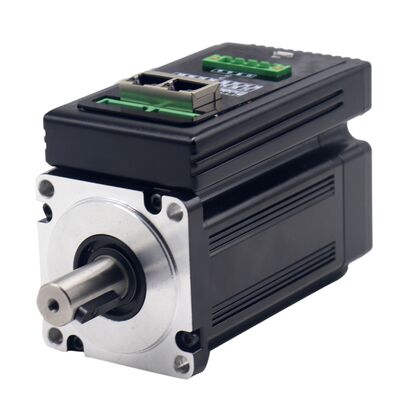

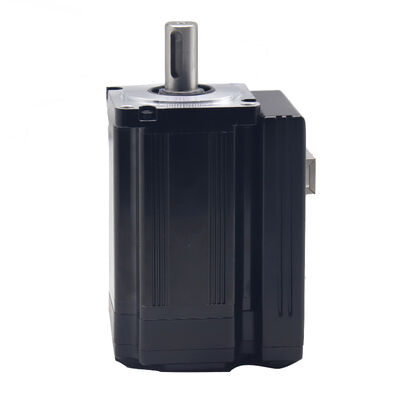

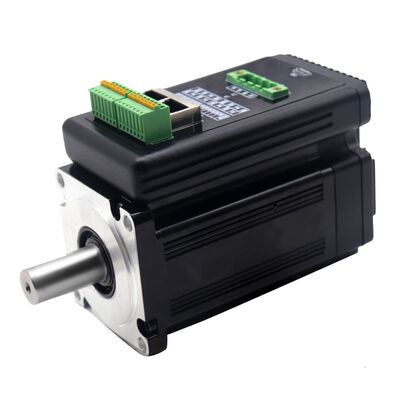

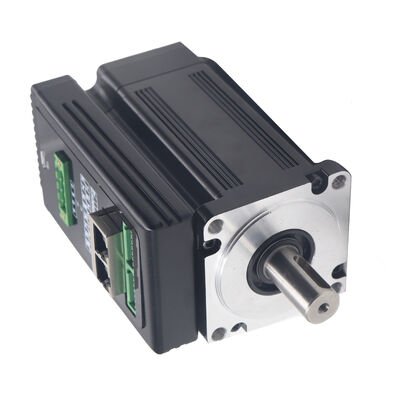

IP20 Integrated Dc Servo Motor Driver 3 Times Overload Capacity

The DC Servo Motor Drive is an integrated driver, designed for a wide range of DC servo motors. It allows for a highly precise control of speed, position, and torque. It ensures the motor functions with precision and accuracy, even in challenging environments. The Drive’s closed loop control mode allows for a high level of accuracy, while the included control system makes it easy to adjust parameters and settings. It is capable of operating in conditions of 20-90% RH and temperatures between -25°C and 50°C, and has a weight of 1KG.

Features:

• Product Name: DC Servo Motor Drive
• Motor Type: DC Servo Motor
• Operating Temperature: -25°C-50°C
• Dimensions: 144*60*60
• Control Mode: Closed Loop
• Drive Type: Drive
• Driver integrated servo motor
• Over-current protection
• Over/under voltage protection
• Overload protection
• Short circuit protection

Technical Parameters:

Applications:

The Jiayu Mechatronic AL400 DC Servo Motor Drive is a high-performance motor drive designed for precise control and excellent responsiveness. With its 1.27NM torque rating, 144*60*60 dimensions, -25°C-50°C operating temperature, and Drive type motor type, this motor offers excellent accuracy and reliability in a variety of applications. It has a high safety performance with 3 times overload capacity, and is equipped with short circuit protection, stall protection, and overvoltage protection for increased reliability and protection. This motor drive is ideal for applications that require precise and reliable control, such as robotics, automation, and industrial control.

Customization:

Brand Name: Jiayu Mechatronic

Model Number: AL400

Place of Origin: China

Torque Rating: 1.27NM

Speed Range: 3000RPM

Input Voltage: DC

Motor Type: DC Servo Motor

Dimensions: 144*60*60

Special Features: Rated current 10A, peak current 30A (33mV/A), driver integrated servo motor, Rated current 10A, peak current 30A (33mV/A).

Support and Services:

Our DC Servo Motor Drive product comes with comprehensive technical support and service. Our team of experts is available to answer any questions you may have about the installation, operation, maintenance, and troubleshooting of our product. We are available by phone and email and will respond to your inquiries quickly and efficiently.

In addition, we also offer on-site technical support for customers who have purchased our product. Our technicians can provide assistance in setting up the product, identify any potential problems, and offer advice on how to maximize its performance. We also provide technical assistance and training for those who need it.

We are committed to providing the best support and service for our DC Servo Motor Drive product. If you ever have any questions or concerns, please do not hesitate to contact us.

Packing and Shipping:

When shipping a DC servo motor drive, the following steps should be taken:

1. Verify the product is in good working order.
2. Package the motor drive carefully, using bubble wrap or other cushioning material, and place in a box.
3. Ensure the box is securely sealed and labeled with the correct shipping address.
4. Ship the package using a reliable shipping service like UPS or FedEx.
5. Provide tracking information to the customer.

FAQ:

Q1: What is the brand name of the DC Servo Motor Drive?

A1: The brand name of the DC Servo Motor Drive is Jiayu Mechatronic.

Q2: What is the model number of the DC Servo Motor Drive?

A2: The model number of the DC Servo Motor Drive is AL400.

Q3: Where is the DC Servo Motor Drive manufactured?

A3: The DC Servo Motor Drive is manufactured in China.

Q4: What are the features of the DC Servo Motor Drive?

A4: The features of the DC Servo Motor Drive include low noise and high stability.

Q5: What is the application of the DC Servo Motor Drive?

A5: The DC Servo Motor Drive is suitable for automation of assembly lines, packaging machines, and printing machines.
