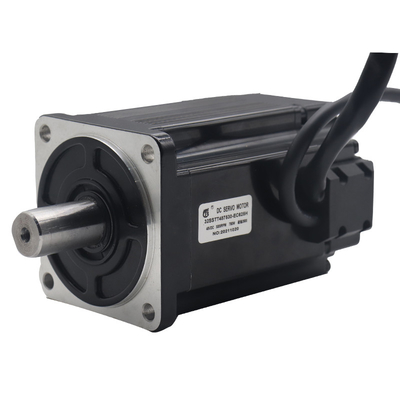

48volt 750w 3000rpm Driver Motor Servo Dc With Incremental Encoder

48volt 750w 3000rpm Driver Motor Servo Dc With Incremental Encoder

Brand Name: Jiayu Mechatronic
Model Number: EBS80F-750C-30DG5Z-BEEL-ST-00
MOQ: 2pcs
Price: Negotiate
Packaging Details: carton
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE, Rohs
Power:
750w
Rated Voltage:
48v
Rated Torque:
2.4nm
Rated Current:
20A
Peak Torque:
4.8nm
Rated Speed:
3000rpm
Mounting:
Flange
Encoder:
Incremental Encoder
Supply Ability:
5000pcs/month
Highlight:

48volt driver motor servo dc

,

incremental encoder driver motor servo dc

,

incremental encoder driver dc servo motor

Product Description

Product Description:

DC Servo Motor is a high-performance motor designed for industrial automation applications. It features a robust design with a protection rating of IP65, and is capable of delivering a rated torque of 2.4nm and a rated speed of 3000rpm. With a power rating of 750W, this motor is ideal for applications such as robotics, machine tools, or even in medical fields. With its built-in incremental encoder, the DC Servo Motor is able to detect the position and speed of the motor, allowing for precise control and accurate feedback. Rated torque of 2.4nm, incremental encoder, and IP65 protection rating, make the DC Servo Motor an ideal choice for industrial applications.



Features:

  • Product Name: DC Servo Motor
  • Shaft: Round
  • Rated Current: 20A
  • Encoder: Incremental Encoder
  • Type: DC Servo Motor
  • Rated Torque: 2.4nm
  • Protection: IP65


Technical Parameters:

Technical Parameters Details
Type DC Servo Motor
Weight 1.3kg
Mounting Flange
Rated Speed 3000rpm
Encoder Incremental Encoder
Protection IP65
Insulation Class B/Class F
Voltage 48V
Control Open/Closed Loop
Rated Torque 2.4nm
High Efficiency Yes
Rated Current 20A
DC48V Power 750W


Applications:

Jiayu Mechatronic's EBS80F-750C-30DG5Z-BEEL-ST-00 DC Servo Motor has a round shaft and is known for its insulaton Class B/Class F. This servo motor features a rated torque of 2.4nm with a power of 750W and a rated current of 20A. It also has a rated speed of 3000rpm with an incremental encoder. This DC Servo Motor is widely used in various applications such as industrial automation, robotics, medical equipment, logistic sorting, and many more. It is known for its high accuracy and reliability, making it an ideal choice for precision motion control.

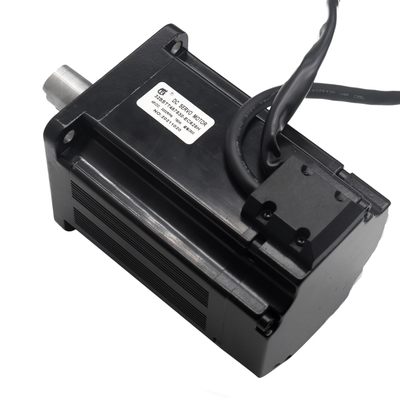

48volt 750w 3000rpm Driver Motor Servo Dc With Incremental Encoder 0

Customization:

Jiayu Mechatronic DC Servo Motor

  • Brand Name: Jiayu Mechatronic
  • Model Number: EBS80F-750C-30DG5Z-BEEL-ST-00
  • Place of Origin: China
  • Insulation: Class B/Class F
  • Mounting: Flange
  • Type: DC Servo Motor
  • Rated Torque: 2.4nm
  • Shaft: Round
  • DC48V 750W
  • Rated current 20A
  • Size 122mm


Support and Services:

DC Servo Motor Technical Support and Service

Technical support and service for DC Servo Motors is available to ensure the long-term reliability and performance of your product. Our team of experienced technicians can provide troubleshooting assistance, advice on maintenance and repair, and answer any other questions related to your DC Servo Motor.

We offer a range of services, including:

  • Troubleshooting assistance
  • Advice on maintenance and repair
  • Answer any other questions related to your DC Servo Motor

If you have any questions or require any assistance, please do not hesitate to contact us.

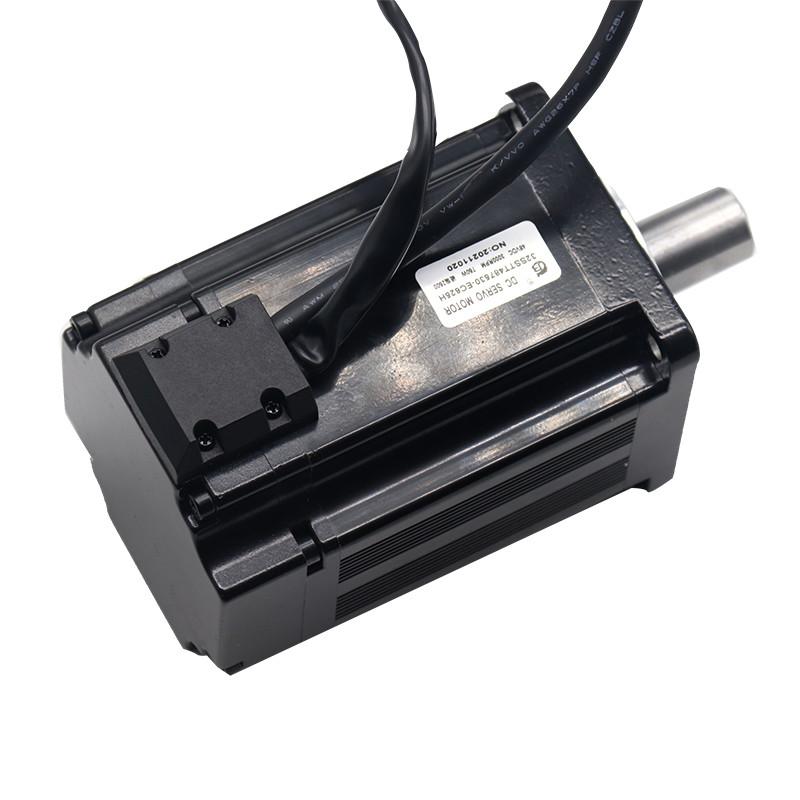

48volt 750w 3000rpm Driver Motor Servo Dc With Incremental Encoder 1



FAQ:

  • Q: What is the Brand Name of the DC Servo Motor?
    A: The Brand Name of the DC Servo Motor is Jiayu Mechatronic.
  • Q: What is the Model Number of the DC Servo Motor?
    A: The Model Number of the DC Servo Motor is EBS80F-750C-30DG5Z-BEEL-ST-00.
  • Q: Where is the DC Servo Motor manufactured?
    A: The DC Servo Motor is manufactured in China.
  • Q: What is the main application of the DC Servo Motor?
    A: The DC Servo Motor is mainly used in industrial automation applications, such as AGV robot, logistic sorting, and other automatic industry.
  • Q: What are the features of the DC Servo Motor?
    A: The DC Servo Motor features high torque, high speed, low noise, and high accuracy.
